CT1201 by Fenner Drives | Chain Tensioners | Single Chain #35
Fenner Drives - T-Max® Chain Tensioners - Single Chain - CT Series: CT1200, CT2200 & CT3200*
| Buy More, Save More! | |
| Quantity | Price Each |
| 20–29 | $144.79 |
| 30–59 | $130.93 |
| 60+ | $115.52 |
Discounts applied in cart/checkout.
CT1201 by Fenner Drives | Chain Tensioners | Single Chain #35
Sale price$154.03
Product Data:
Brand:
Series:
| Overview: | |||
|---|---|---|---|
|
|||
| Description: | |||
|

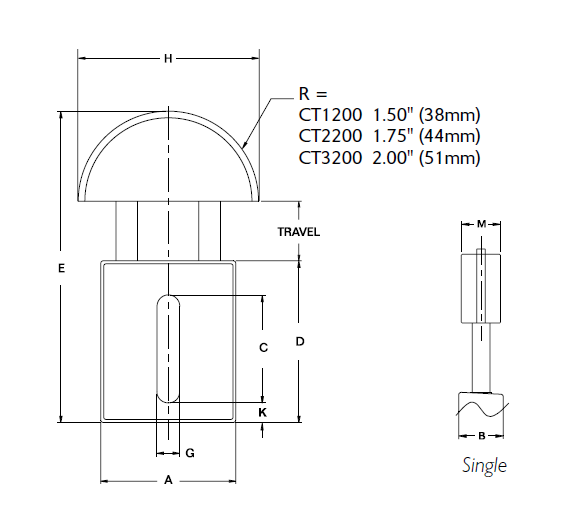

| Series | Dimensions | |||||||
|---|---|---|---|---|---|---|---|---|
| A | B | C | D | E | G | H | K | |
| INCH | ||||||||
| CT1200 | 2.31" | 1" | 1.82" | 2.91" | 5.47" | 0.41" | 3" | 0.46" |
| CT2200 | 2.95" | 1" | 2.27" | 3.52" | 6.47" | 0.49" | 3.5" | 0.45" |
| CT3200 | 3.54" | 1" | 2.91" | 4.25" | 7.8" | 0.53" | 4" | 0.49" |
| METRIC | ||||||||
| CT1200 | 59mm | 25mm | 46mm | 74mm | 139mm | 10mm | 76mm | 11mm |
| CT2200 | 75mm | 30mm | 58mm | 89mm | 164mm | 12mm | 89mm | 11mm |
| CT3200 | 90mm | 35mm | 74mm | 108mm | 198mm | 13mm | 102mm | 12mm |
| Part Number | Chain | M |
|---|---|---|
| Inch | ||
| CT1201-L | #35 | 1" |
| CT1201 | #35 | 1" |
| CT1202 | #40 | 1" |
| CT2201 | #50 | 1" |
| CT2202 | #60 | 1" |
| CT3201 | #80 | 0.98" |
| CT3202 | #100 | 0.98" |
*These tensioners can be used on chain sizes up to ANSI #160 or BS/DIN #24B.
All forces are nominal.
