CT1106 by Fenner Drives | Chain Tensioner | Triple Chain #40
If you are interested in this item please fill out the Contact Form below.
CT1106 by Fenner Drives | Chain Tensioner | Triple Chain #40
Sale price$0.00
Contact Us
How can we help you?
Price, availability, and details—available upon request.
| Overview: | |||
|---|---|---|---|
|

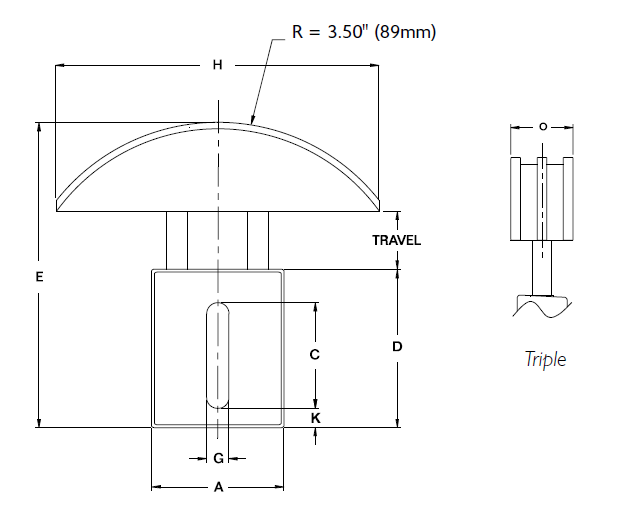

| Series | Dimensions | |||||||
|---|---|---|---|---|---|---|---|---|
| A | B | C | D | E | G | H | K | |
| INCH | ||||||||
| CT1100 | 2.31" | 0.98" | 1.82" | 2.91" | 5.6" | 0.41" | 5.5" | 0.46" |
| CT2100 | 2.95" | 1.18" | 2.27" | 3.52" | 6.4" | 0.49" | 5.5" | 0.45" |
| CT3100 | 3.54" | 1.38" | 2.91" | 4.25" | 7.5" | 0.53" | 5.5" | 0.49" |
| METRIC | ||||||||
| CT1100 | 59mm | 25mm | 46mm | 74mm | 142mm | 10mm | 140mm | 11mm |
| CT2100 | 75mm | 30mm | 58mm | 89mm | 163mm | 12mm | 140mm | 11mm |
| CT3100 | 90mm | 35mm | 74mm | 108mm | 191mm | 13mm | 140mm | 12mm |
| Part Number | Chain | O |
|---|---|---|
| Inch | ||
| CT1105-L | #35 | 0.98" |
| CT1105 | #35 | 0.98" |
| CT1106 | #40 | 1.37" |
| CT2105 | #50 | 1.75" |
*These tensioners can be used on chain sizes up to ANSI #160 or BS/DIN #24B.
All forces are nominal.n
