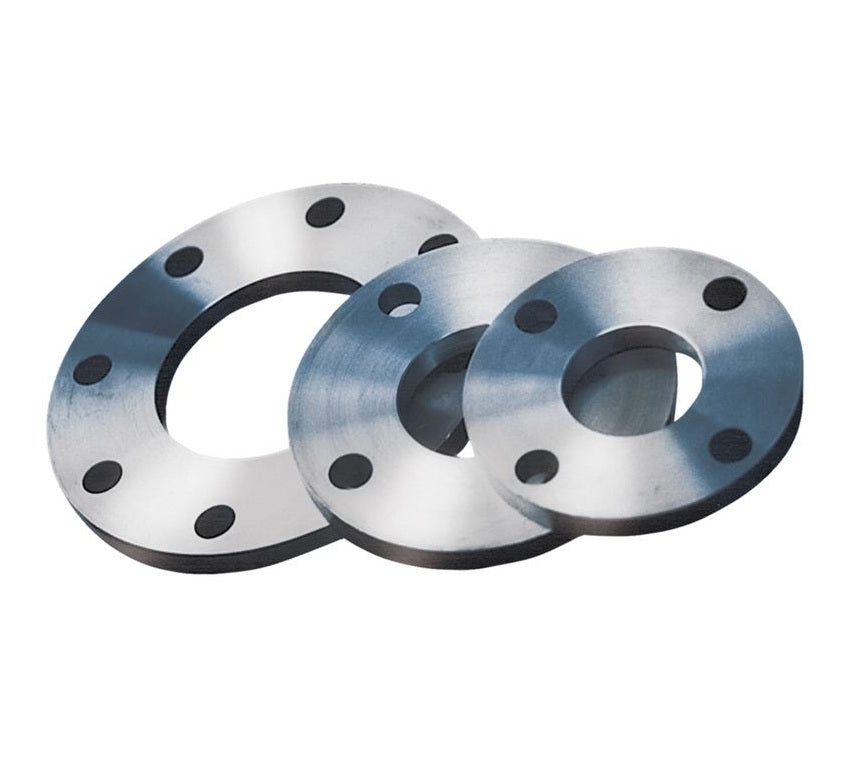

CSPF0250 by Kuriyama | CSPF Series | Plate 4-Hole Flange 150# | 2-1/2" Size | 7" OD | Bore: 2.940" | Thickness: 5/8" | Carbon Steel
Kuriyama of America Inc.
CSPF Series | Plate Flange 150# | Carbon Steel
Designed for use in low-pressure applications in noncorrosive environments.
Commonly used with turn back nipples to create a floating flange.
| Buy More, Save More! | |
| Quantity | Price Each |
| 10–39 | $38.97 |
| 40–79 | $35.24 |
| 80+ | $31.10 |
Discounts applied in cart/checkout.
What are the Applications?
- Designed for use in low-pressure applications in noncorrosive environments.
- Commonly used with turn back nipples to create a floating flange.
What are the Materials?
- Forged Carbon Steel.
- ANSI B16.56.
- ASTM A-105.
 |
|||||||||
|---|---|---|---|---|---|---|---|---|---|
| Part Number | Size (in) |
OD A (in) |
Bore B | Circle C (in) |
Thickness (in) |
Number Bolt Holes |
Diameter Bolt Holes (in) |
PSI Rating at 70?F |
Weight Each (lbs) |
| CSPF0150 | 1-1/2" | 5" | 1.950" | 3-7/8" | 5/8" | 4 | 5/8" | 150 PSI | 2.70 lbs |
| CSPF0200 | 2" | 6" | 2.440" | 4-3/4" | 5/8" | 4 | 3/4" | 150 PSI | 4.10 lbs |
| CSPF0250 | 2-1/2" | 7" | 2.940" | 5-1/2" | 5/8" | 4 | 3/4" | 150 PSI | 5.35 lbs |
| CSPF0300 | 3" | 7-1/2" | 3.570" | 6" | 5/8" | 4 | 3/4 | 150 PSI | 5.80 lbs |
| CSPF0400 | 4" | 9" | 4.570" | 7-1/2" | 5/8" | 8 | 3/4" | 150 PSI | 8.00 lbs |
| CSPF0500 | 5" | 10" | 5.660" | 8-1/2" | 3/4" | 8 | 7/8" | 150 PSI | 10.37 lbs |
| CSPF0600 | 6" | 11" | 6.720" | 9-1/2" | 3/4" | 8 | 7/8" | 150 PSI | 11.76 lbs |
| CSPF0800 | 8" | 13-1/2" | 8.720" | 11-3/4" | 1" | 8 | 7/8" | 150 PSI | 22.48 lbs |
| CSPF1000 | 10" | 16" | 10.880" | 14-1/4" | 1" | 12 | 1" | 150 PSI | 26.83 lbs |
| CSPF1200 | 12" | 19" | 12.880" | 17" | 1" | 12 | 1" | 150 PSI | 42.30 lbs |
Product Data:
Series:
MAWP:
150
Shape:
Straight
Ends Configuration:
Material(s):
Specifications and Approvals:
