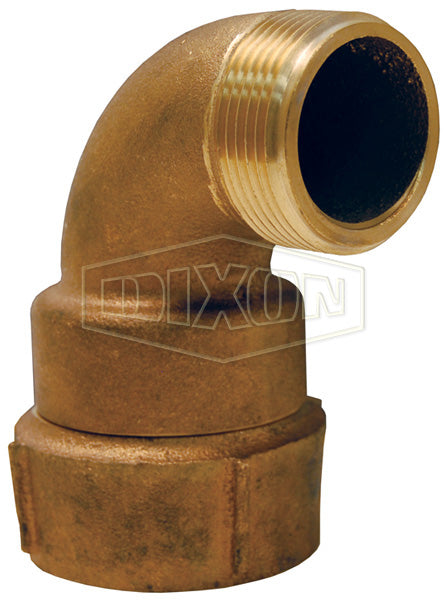

CSES150F Dixon Cast Brass Continuous Swivel 90° Elbow - 1-1/2" Female NPT x 1-1/2" Male NST(NH)

CSES150F Dixon Cast Brass Continuous Swivel 90° Elbow - 1-1/2" Female NPT x 1-1/2" Male NST(NH)

Sale price$186.32

Dixon Fire Fittings
Continuous Swivel 90° Elbow - Cast Brass

Allows hose to swing when connected. Full waterway reduces friction loss.
Buy More, Save More!
Quantity Price Each
5–19 $175.14
20–59 $158.37
60+ $139.74
Discounts applied in cart/checkout.

Product Data:

Shape:

90 Degree

Ends Configuration:
  • 1-1/2in Female NPT
  • 1-1/2in Male NST
Material(s):
  • Brass
Features:
  • Short style radius is 2-1/2" measured from the center of the waterway to the end of the discharge thread.
Part Number Female Thread Male Thread Length Weight
(Lbs.)
CSES150F 1-1/2" Female NPT 1-1/2" Male NST(NH) 2-1/2" 4.0870
CSES2015F 2" Female NPT 1-1/2" Male NST(NH) 2-1/2" 3.7400
CSES150T 1-1/2" Female NPT 1-1/2" Male NPT 2-1/2" 4.0000

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
