CS43-6X6 by Couplamatic | VARI-CRIMP Coupling | 3/8" Hose ID x G-3/8-19 Thread 60° Cone Female Swivel | 3/8" BSPP | 45° Elbow | Trivalent Zinc Plating | Replaces: 6P46V
Couplamatic

CS43-6X6 by Couplamatic | VARI-CRIMP Coupling | 3/8" Hose ID x G-3/8-19 Thread 60° Cone Female Swivel | 3/8" BSPP | 45° Elbow | Trivalent Zinc Plating | Replaces: 6P46V

Sale price$19.59

Couplamatic Systems Inc.
Vari-Crimp Couplings - BSPP - British Standard Parallel 60° Cone - 45° Bend Female Swivel

Product Data:

Series:
  • VARI-CRIMP Series
Shape:

45 Degree

Ends Configuration:
  • 3/8in Female BSPP
  • 3/8in Hose Barb
Description:
  • The Vari-Crimp coupling is compatible with virtually all Crimp Machines. Trivalent Zinc Plating.
  • G. as part of thread size is ISO designation for parallel thread.

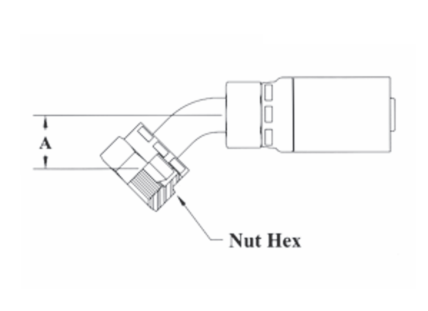

Part Number Hose ID BSPP Size Thread Size A-Drop Inches Nut Hex PreviousPart Number Cross Reference Part Numbers
Dayco HY Parker HY Weatherhead U
CS43-4X4 1/4" 1/4" G-1/4-19 0.91" 3/4" 4P44V HY04-04BPF45T 1B1HY-4-4 04U-44P
CS43-6X6 3/8" 3/8" G-3/8-19 0.90" 7/8" 6P46V HY06-06BPF45T 1B1HY-6-6 06U-46P
CS43-8X8 1/2" 1/2" G-1/2-14 0.87" 1" 8P48V HY08-08BPF45T 1B1HY-8-8 08U-48P
CS43-12X12 3/4" 3/4" G-3/4-14 1.31" 1-1/4" 12P52V HY12-12BPF45T 1B1HY-12-12 12U-52P

The cross reference is for thread identification and hose inside diameter only. Exact dimensions of the couplings may vary from manufacturer to manufacturer. Please check hose cut off factor, tube length, and tube drop carefully.
