CS42-4X10 by Couplamatic | VARI-CRIMP Coupling | 1/4" Hose ID x M18x1.5 Thread Din Heavy 24° Seat Female Swivel | 45° Elbow | Trivalent Zinc Plating | Replaces: 4H10V
Buy more, save moreDiscounts applied in cart/checkout.
Vari-Crimp — Universal Crimp
CS42 Vari-Crimp — DIN Heavy 24° Seat, Female Swivel, 45° Elbow
CS42 is the DIN Heavy 24° Seat, Female Swivel, 45° Elbow configuration of the Vari-Crimp system, terminating 100R1/1SN thin cover, 100R2 thin cover, 2SN, Hy-Plus I and III, 100R16/2SC, Dura-Hyd R16 and EX, 100R17, Dura-Hyd R17, 100R3 and 100R4 hose.
1
What are the main product features?
- The Vari-Crimp coupling is compatible with virtually all Crimp Machines. Trivalent Zinc Plating.
- Includes O-Ring
- Fits virtually every crimp machine — the most universally crimpable coupling system in the line.
- One system across the braid hose range — terminates one and two wire braid hose from 1/4" up.
- For 1-1/2" and 2" 100R2 thin cover — use the GW Series spiral hose couplings instead.
2
Which sizes are available?

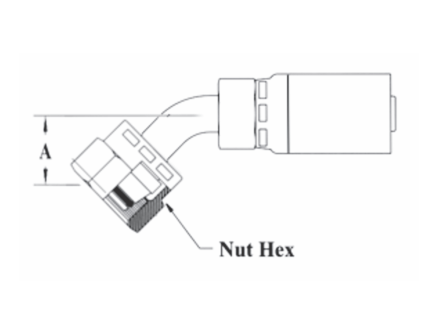

| Part Number | Hose ID | Tube Size | Thread Size | A-Drop Inches | Nut Hex | PreviousPart Number |
|---|---|---|---|---|---|---|
| CS42-4X10 | 1/4" | 10mm | M18x1.5 | 0.96" | 7/8" | 4H10V |
| CS42-6X12 | 3/8" | 12mm | M20x1.5 | 1.13" | 1" | 6H12V |
| CS42-8X16 | 1/2" | 16mm | M24x1.5 | 1.25" | 1-1/8" | 8H16V |
| CS42-10X20 | 5/8" | 20mm | M30x2.0 | 1.50" | 1-1/2" | 10H20V |
Additional Product Data:
Series:
Shape:
45 Degree
Ends Configuration:
Material(s):
Compatible Series:
