CS38-6X14 by Couplamatic | VARI-CRIMP Coupling | 3/8" Hose ID x M22x1.5 Thread Din Heavy 24° Seat Female Swivel | Straight | Trivalent Zinc Plating | Replaces: 6C64V
Couplamatic Systems Inc.
Vari-Crimp Couplings - DIN Heavy 24° Seat - Female Swivel
| Buy More, Save More! | |
| Quantity | Price Each |
| 10–39 | $16.14 |
| 40–79 | $14.59 |
| 80+ | $12.88 |
Discounts applied in cart/checkout.
Product Data:
Series:
Shape:
Straight
Ends Configuration:
Material(s):
Compatible Series:
| Description: | |||
|---|---|---|---|
|

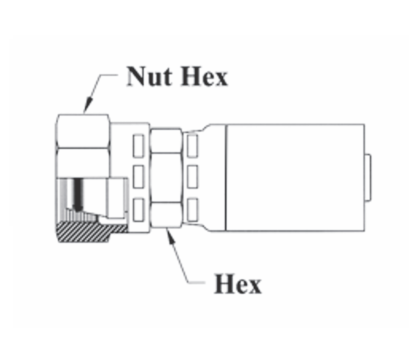

| Part Number | Hose ID | Tube Size | Thread Size | Hex Size | Nut Hex | PreviousPart Number | Cross Reference Part Numbers | ||
|---|---|---|---|---|---|---|---|---|---|
| Dayco HY | Parker HY | Weatherhead U | |||||||
| CS38-4X8 | 1/4" | 8mm | M16x1.5 | 9/16" | 3/4" | 4C58V | - | - | 04U-58C |
| CS38-4X10 | 1/4" | 10mm | M18x1.5 | 5/8" | 7/8" | 4C60V | - | - | 04U-60C |
| CS38-6X10 | 3/8" | 10mm | M18x1.5 | 3/4" | 7/8" | 6C60V | - | - | 06U-60C |
| CS38-6X12 | 3/8" | 12mm | M20x1.5 | 3/4" | 1" | 6C62V | - | - | 06U-62C |
| CS38-6X14 | 3/8" | 14mm | M22x1.5 | 13/16" | 1-1/16" | 6C64V | - | - | 06U-64C |
| CS38-8X16 | 1/2" | 16mm | M24x1.5 | 7/8" | 1-1/8" | 8C66V | HY08-16RO24A | 1C9HY-16-8 | 08U-66C |
| CS38-10X20 | 5/8" | 20mm | M30x2.0 | 1-1/8" | 1-1/2" | 10C70V | - | - | 10U-70C |
| CS38-12X20 | 3/4" | 20mm | M30x2.0 | 1-1/8" | 1-1/2" | 12C70V | - | - | 12U-70C |
| CS38-12X25 | 3/4" | 25mm | M36x2.0 | 1-1/4" | 1-5/8" | 12C75V | - | - | 12U-75C |
| CS38-16X30 | 1" | 30mm | M42x2.0 | 1-11/16" | 2" | 16C80V | - | - | 16U-80C |
The cross reference is for thread identification and hose inside diameter only. Exact dimensions of the couplings may vary from manufacturer to manufacturer. Please check hose cut off factor, tube length, and tube drop carefully.
