CS37-12X22 by Couplamatic | VARI-CRIMP Coupling | 3/4" Hose ID x M30x2.0 Thread DIN Light Universal Seat Female Swivel | Straight | Trivalent Zinc Plating | Replaces: 12C22V
Buy more, save moreDiscounts applied in cart/checkout.
Vari-Crimp — Universal Crimp
CS37 Vari-Crimp — DIN Light Universal Seat, Female Swivel, Straight
CS37 is the DIN Light Universal Seat, Female Swivel, Straight configuration of the Vari-Crimp system, terminating 100R1/1SN thin cover, 100R2 thin cover, 2SN, Hy-Plus I and III, 100R16/2SC, Dura-Hyd R16 and EX, 100R17, Dura-Hyd R17, 100R3 and 100R4 hose.
1
What are the main product features?
- The Vari-Crimp coupling is compatible with virtually all Crimp Machines. Trivalent Zinc Plating.
- Fits virtually every crimp machine — the most universally crimpable coupling system in the line.
- One system across the braid hose range — terminates one and two wire braid hose from 1/4" up.
- For 1-1/2" and 2" 100R2 thin cover — use the GW Series spiral hose couplings instead.
2
Which sizes are available?

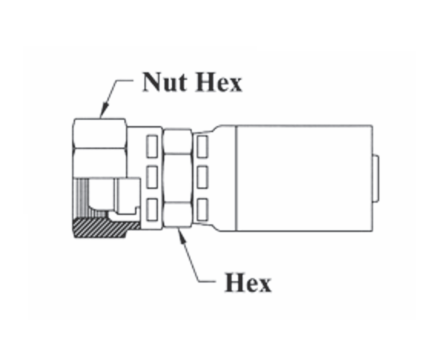

| Part Number | Hose ID | Tube Size | Thread Size | Hex Size | Nut Hex | Previous Part Number |
|---|---|---|---|---|---|---|
| CS37-4X6 | 1/4" | 6mm | M12x1.5 | 9/16" | 11/16" | 4C06V |
| CS37-4X8 | 1/4" | 8mm | M14x1.5 | 9/16" | 11/16" | 4C08V |
| CS37-4X10 | 1/4" | 10mm | M16x1.5 | 9/16" | 3/4" | 4C10V |
| CS37-6X10 | 3/8" | 10mm | M16x1.5 | 11/16" | 3/4" | 6C10V |
| CS37-6X12 | 3/8" | 12mm | M18x1.5 | 11/16" | 7/8" | 6C12V |
| CS37-8X15 | 1/2" | 15mm | M22x1.5 | 7/8" | 1-1/16" | 8C15V |
| CS37-10X18 | 5/8" | 18mm | M26x1.5 | 15/16" | 1-1/4" | 10C18V |
| CS37-12X22 | 3/4" | 22mm | M30x2.0 | 1-1/8" | 1-1/2" | 12C22V |
| CS37-16X28 | 1" | 28mm | M36x2.0 | 1-3/8" | 1-7/8" | 16C28V |
The cross reference is for thread identification and hose inside diameter only. Exact dimensions of the couplings may vary from manufacturer to manufacturer. Please check hose cut off factor, tube length, and tube drop carefully. The size chart above was rebuilt from the manufacturer catalogue: the supplied description carried the CS66 chart, which belongs to the DIN Light 24° Seat male solid couplings and is shown on that product’s own page.
Additional Product Data:
Series:
Shape:
Straight
Ends Configuration:
Material(s):
Compatible Series:
