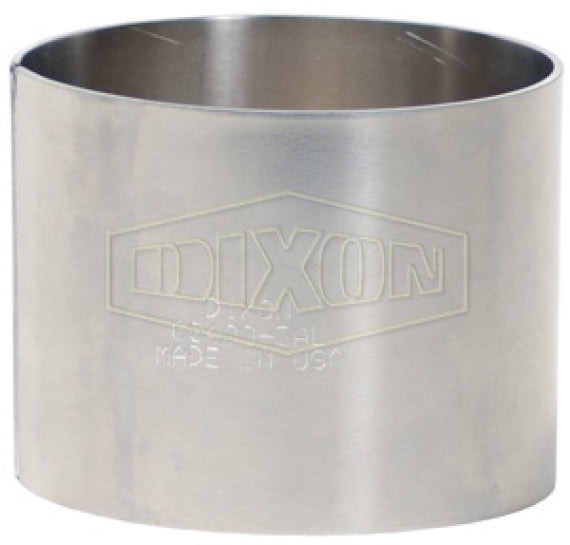

CS300-11SS Dixon King Crimp® | Sleeve | 3.938" Sleeve ID | for Hose OD from 3-53/64" to 3-56/64" | 304 Stainless Steel
Dixon Valve & Coupling
King Crimp® Style | Sleeve
Product Data:
Shape:
No Orientation
Material(s):
| Features: | |||
|---|---|---|---|
|
|||
| Safety Notes: | |||
|
| Carbon Steel Part Number |
304 Stainless Steel Part Number |
Aluminum Part Number |
Hose I.D. |
Hose O.D | Working Pressure (PSI) |
Sleeve I.D. | Sleeve Wall Thickness |
Sleeve Overall Length | ||
|---|---|---|---|---|---|---|---|---|---|---|
| From | To | Cam & Groove* |
King Crimp Nipple** |
|||||||
| CS100-1CS | CS100-1SS | - | 1" | 1-13/64" | 1-16/64" | - | - | 1.313" | 0.060" | 2-1/2" |
| CS100-2CS | CS100-2SS | CS100-2AL | 1" | 1-17/64" | 1-20/64" | - | - | 1.375" | 0.060" | 2-1/2" |
| CS100-3CS | CS100-3SS | - | 1" | 1-21/64" | 1-24/64" | - | - | 1.438" | 0.060" | 2-1/2" |
| CS100-4CS | CS100-4SS | CS100-4AL | 1" | 1-25/64" | 1-28/64" | - | - | 1.500" | 0.060" | 2-1/2" |
| CS100-5CS | CS100-5SS | - | 1" | 1-29/64" | 1-32/64" | - | - | 1.563" | 0.060" | 2-1/2" |
| CS100-6CS | CS100-6SS | CS100-6AL | 1" | 1-33/64" | 1-36/64" | - | - | 1.625" | 0.060" | 2-1/2" |
| CS100-7CS | CS100-7SS | - | 1" | 1-37/64" | 1-40/64" | - | - | 1.688" | 0.060" | 2-1/2" |
| CS100-8CS | CS100-8SS | - | 1" | 1-41/64" | 1-44/64" | - | - | 1.750" | 0.060" | 2-1/2" |
| CS100-9CS | CS100-9SS | - | 1" | 1-45/64" | 1-48/64" | - | - | 1.813" | 0.060" | 2-1/2" |
| CS100-10CS | CS100-10SS | - | 1" | 1-49/64" | 1-52/64" | - | - | 1.875" | 0.060" | 2-1/2" |
| CS125-3CS | CS125-3SS | - | 1-1/4" | 1-41/64" | 1-44/64" | 250 PSI | 300 PSI | 1.750" | 0.060" | 2-1/2" |
| CS125-4CS | CS125-4SS | - | 1-1/4" | 1-45/64" | 1-48/64" | 250 PSI | 300 PSI | 1.813" | 0.060" | 2-1/2" |
| CS125-5CS | CS125-5SS | - | 1-1/4" | 1-49/64" | 1-52/64" | 250 PSI | 300 PSI | 1.875" | 0.060" | 2-1/2" |
| CS125-6CS | CS125-6SS | - | 1-1/4" | 1-53/64" | 1-56/64" | 250 PSI | 300 PSI | 1.938" | 0.060" | 2-1/2" |
| CS150-1CS | CS150-1SS | - | 1-1/2" | 1-41/64" | 1-44/64" | 250 PSI | 300 PSI | 1.750" | 0.060" | 2-1/2" |
| CS150-2CS | CS150-2SS | - | 1-1/2" | 1-45/64" | 1-48/64" | 250 PSI | 300 PSI | 1.813" | 0.060" | 2-1/2" |
| CS150-3CS | CS150-3SS | CS150-3AL | 1-1/2" | 1-49/64" | 1-52/64" | 250 PSI | 300 PSI | 1.875" | 0.060" | 2-1/2" |
| CS150-4CS | CS150-4SS | - | 1-1/2" | 1-53/64" | 1-56/64" | 250 PSI | 300 PSI | 1.938" | 0.060" | 2-1/2" |
| CS150-5CS | CS150-5SS | - | 1-1/2" | 1-57/64" | 1-60/64" | 250 PSI | 300 PSI | 2.000" | 0.060" | 2-1/2" |
| CS150-6CS | CS150-6SS | - | 1-1/2" | 1-61/64" | 2" | 250 PSI | 300 PSI | 2.063" | 0.060" | 2-1/2" |
| CS150-7CS | CS150-7SS | CS150-7AL | 1-1/2" | 2-1/64" | 2-4/64" | 250 PSI | 300 PSI | 2.125" | 0.060" | 2-1/2" |
| CS150-8CS | CS150-8SS | - | 1-1/2" | 2-5/64" | 2-8/64" | 250 PSI | 300 PSI | 2.188" | 0.060" | 2-1/2" |
| CS150-9CS | CS150-9SS | - | 1-1/2" | 2-9/64" | 2-12/64" | 250 PSI | 300 PSI | 2.250" | 0.060" | 2-1/2" |
| CS150-10CS | CS150-10SS | - | 1-1/2" | 2-13/64" | 2-16/64" | 250 PSI | 300 PSI | 2.313" | 0.060" | 2-1/2" |
| CS150-11CS | CS150-11SS | - | 1-1/2" | 2-17/64" | 2-20/64" | 250 PSI | 300 PSI | 2.375" | 0.060" | 2-1/2" |
| CS150-12CS | CS150-12SS | - | 1-1/2" | 2-21/64" | 2-24/64" | 250 PSI | 300 PSI | 2.438" | 0.060" | 2-1/2" |
| CS200-1CS | CS200-1SS | - | 2" | 2-13/64" | 2-16/64" | 250 PSI | 250 PSI | 2.313" | 0.060" | 2-7/8" |
| CS200-2CS | CS200-2SS | - | 2" | 2-17/64" | 2-20/64" | 250 PSI | 250 PSI | 2.375" | 0.060" | 2-7/8" |
| CS200-3CS | CS200-3SS | - | 2" | 2-21/64" | 2-24/64" | 250 PSI | 250 PSI | 2.438" | 0.060" | 2-7/8" |
| CS200-4CS | CS200-4SS | CS200-4AL | 2" | 2-25/64" | 2-28/64" | 250 PSI | 250 PSI | 2.500" | 0.060" | 2-7/8" |
| CS200-5CS | CS200-5SS | CS200-5AL | 2" | 2-29/64" | 2-32/64" | 250 PSI | 250 PSI | 2.563" | 0.060" | 2-7/8" |
| CS200-6CS | CS200-6SS | - | 2" | 2-33/64" | 2-36/64" | 250 PSI | 250 PSI | 2.625" | 0.060" | 2-7/8" |
| CS200-7CS | CS200-7SS | - | 2" | 2-37/64" | 2-40/64" | 250 PSI | 250 PSI | 2.688" | 0.060" | 2-7/8" |
| CS200-8CS | CS200-8SS | - | 2" | 2-41/64" | 2-44/64" | 250 PSI | 250 PSI | 2.750" | 0.060" | 2-7/8" |
| CS200-9CS | CS200-9SS | - | 2" | 2-45/64" | 2-48/64" | 250 PSI | 250 PSI | 2.813" | 0.060" | 2-7/8" |
| CS200-10CS | CS200-10SS | CS200-10AL | 2" | 2-49/64" | 2-52/64" | 250 PSI | 250 PSI | 2.875" | 0.060" | 2-7/8" |
| CS200-11CS | CS200-11SS | CS200-11AL | 2" | 2-53/64" | 2-56/64" | 250 PSI | 250 PSI | 2.938" | 0.060" | 2-7/8" |
| CS200-12CS | CS200-12SS | CS200-12AL | 2" | 2-57/64" | 2-60/64" | 250 PSI | 250 PSI | 3.000" | 0.060" | 2-7/8" |
| CS250-5CS | - | - | 2-1/2" | 2-57/64" | 2-60/64" | - | - | 3.000" | 0.060" | 3-1/4" |
| CS250-6CS | - | - | 2-1/2" | 2-61/64" | 3" | - | 3.063" | 0.060" | 3-1/4" | |
| CS250-7CS | - | - | 2-1/2" | 3-1/64" | 3-4/64" | - | 3.125" | 0.060" | 3-1/4" | |
| CS250-8CS | - | - | 2-1/2" | 3-5/64" | 3-8/64" | - | 3.188" | 0.060" | 3-1/4" | |
| CS300-1CS | CS300-1SS | - | 3" | 3-13/64" | 3-16/64" | 125 PSI | 200 PSI | 3.313" | 0.090" | 3-3/4" |
| CS300-2CS | CS300-2SS | - | 3" | 3-17/64" | 3-20/64" | 125 PSI | 200 PSI | 3.375" | 0.090" | 3-3/4" |
| CS300-3CS | CS300-3SS | - | 3" | 3-21/64" | 3-24/64" | 125 PSI | 200 PSI | 3.438" | 0.090" | 3-3/4" |
| CS300-4CS | CS300-4SS | - | 3" | 3-25/64" | 3-28/64" | 125 PSI | 200 PSI | 3.500" | 0.090" | 3-3/4" |
| CS300-5CS | CS300-5SS | CS300-5AL | 3" | 3-29/64" | 3-32/64" | 125 PSI | 200 PSI | 3.563" | 0.090" | 3-3/4" |
| CS300-6CS | CS300-6SS | - | 3" | 3-33/64" | 3-36/64" | 125 PSI | 200 PSI | 3.625" | 0.090" | 3-3/4" |
| CS300-7CS | CS300-7SS | - | 3" | 3-37/64" | 3-40/64" | 125 PSI | 200 PSI | 3.688" | 0.090" | 3-3/4" |
| CS300-8CS | CS300-8SS | CS300-8AL | 3" | 3-41/64" | 3-44/64" | 125 PSI | 200 PSI | 3.750" | 0.090" | 3-3/4" |
| CS300-9CS | CS300-9SS | - | 3" | 3-45/64" | 3-48/64" | 125 PSI | 200 PSI | 3.813" | 0.090" | 3-3/4" |
| CS300-10CS | CS300-10SS | CS300-10AL | 3" | 3-49/64" | 3-52/64" | 125 PSI | 200 PSI | 3.875" | 0.090" | 3-3/4" |
| CS300-11CS | CS300-11SS | - | 3" | 3-53/64" | 3-56/64" | 125 PSI | 200 PSI | 3.938" | 0.090" | 3-3/4" |
| CS300-12CS | CS300-12SS | CS300-12AL | 3" | 3-57/64" | 3-60/64" | 125 PSI | 200 PSI | 4.000" | 0.090" | 3-3/4" |
| CS300-13CS | CS300-13SS | - | 3" | 3-61/64" | 4" | 125 PSI | 200 PSI | 4.063" | 0.090" | 3-3/4" |
| CS300-14CS | CS300-14SS | - | 3" | 4-1/64" | 4-4/64" | 125 PSI | 200 PSI | 4.125" | 0.090" | 3-3/4" |
| CS300-15CS | CS300-15SS | - | 3" | 4-5/64" | 4-8/64" | 125 PSI | 200 PSI | 4.188" | 0.090" | 3-3/4" |
| CS300-16CS | CS300-16SS | - | 3" | 4-9/64" | 4-12/64" | 125 PSI | 200 PSI | 4.250" | 0.090" | 3-3/4" |
| CS400-1CS | CS400-1SS | - | 4" | 4-13/64" | 4-16/64" | 110 PSI | 175 PSI | 4.313" | 0.090" | 3-3/4" |
| CS400-2CS | CS400-2SS | - | 4" | 4-17/64" | 4-20/64" | 110 PSI | 175 PSI | 4.375" | 0.090" | 3-3/4" |
| CS400-3CS | CS400-3SS | - | 4" | 4-21/64" | 4-24/64" | 110 PSI | 175 PSI | 4.438" | 0.090" | 3-3/4" |
| CS400-4CS | CS400-4SS | - | 4" | 4-25/64" | 4-28/64" | 110 PSI | 175 PSI | 4.500" | 0.090" | 3-3/4" |
| CS400-5CS | CS400-5SS | - | 4" | 4-29/64" | 4-32/64" | 110 PSI | 175 PSI | 4.563" | 0.090" | 3-3/4" |
| CS400-6CS | CS400-6SS | - | 4" | 4-33/64" | 4-36/64" | 110 PSI | 175 PSI | 4.625" | 0.090" | 3-3/4" |
| CS400-7CS | CS400-7SS | - | 4" | 4-37/64" | 4-40/64" | 110 PSI | 175 PSI | 4.688" | 0.090" | 3-3/4" |
| CS400-8CS | CS400-8SS | - | 4" | 4-41/64" | 4-44/64" | 110 PSI | 175 PSI | 4.750" | 0.090" | 3-3/4" |
| CS400-9CS | CS400-9SS | - | 4" | 4-45/64" | 4-48/64" | 110 PSI | 175 PSI | 4.813" | 0.090" | 3-3/4" |
| CS400-10CS | CS400-10SS | CS400-10Al | 4" | 4-49/64" | 4-52/64" | 110 PSI | 175 PSI | 4.875" | 0.090" | 3-3/4" |
| CS400-11CS | CS400-11SS | CS400-11AL | 4" | 4-53/64" | 4-56/64" | 110 PSI | 175 PSI | 4.938" | 0.090" | 3-3/4" |
| CS400-12CS | CS400-12SS | CS400-12AL | 4" | 4-57/64" | 4-60/64" | 110 PSI | 175 PSI | 5.000" | 0.090" | 3-3/4" |
| CS400-13CS | CS400-13SS | - | 4" | 4-61/64" | 5" | 110 PSI | 175 PSI | 5.063" | 0.090" | 3-3/4" |
| CS400-14CS | CS400-14SS | - | 4" | 5-1/64" | 5-4/64" | 110 PSI | 175 PSI | 5.125" | 0.090" | 3-3/4" |
| CS400-15CS | CS400-15SS | - | 4" | 5-5/64" | 5-8/64" | 110 PSI | 175 PSI | 5.188" | 0.090" | 3-3/4" |
| CS400-16CS | CS400-16SS | - | 4" | 5-9/64" | 5-12/64" | 110 PSI | 175 PSI | 5.250" | 0.090" | 3-3/4" |
| CS600-1CS | CS600-1SS | - | 6" | 6-21/64" | 6-28/64" | - | - | 6.500" | 0.120" | 5-1/2" |
| CS600-2CS | CS600-2SS | - | 6" | 6-29/64" | 6-36/64" | - | - | 6.625" | 0.120" | 5-1/2" |
| CS600-3CS | CS600-3SS | - | 6" | 6-37/64" | 6-44/64" | - | - | 6.750" | 0.120" | 5-1/2" |
| CS600-4CS | CS600-4SS | - | 6" | 6-45/64" | 6-52/64" | - | - | 6.875" | 0.120" | 5-1/2" |
| CS600-5CS | CS600-5SS | - | 6" | 6-53/64" | 6-60/64" | - | - | 7.000" | 0.120" | 5-1/2" |
| CS600-6CS | CS600-6SS | - | 6" | 6-61/64" | 7-4/64" | - | - | 7.125" | 0.120" | 5-1/2" |
| CS600-7CS | CS600-7SS | - | 6" | 7-5/64" | 7-12/64" | - | - | 7.250" | 0.120" | 5-1/2" |
| CS600-8CS | CS600-8SS | - | 6" | 7-13/64" | 7-20/64" | - | - | 7.375" | 0.120" | 5-1/2" |
| CS600-9CS | CS600-9SS | - | 6" | 7-21/64" | 7-28/64" | - | - | 7.500" | 0.120" | 5-1/2" |
* Based on using crimp cam and groove shanks
** Based on using King Crimp nipples
