CS23-6X6L by Couplamatic | VARI-CRIMP Coupling | 3/8" Hose ID x 5/8x18 Thread SAE 45° Seat Female Swivel | 2.18" Drop | 90° Elbow | Trivalent Zinc Plating | Replaces: 6172V

CS23-6X6L by Couplamatic | VARI-CRIMP Coupling | 3/8" Hose ID x 5/8x18 Thread SAE 45° Seat Female Swivel | 2.18" Drop | 90° Elbow | Trivalent Zinc Plating | Replaces: 6172V

Sale price$14.73
Buy more, save moreDiscounts applied in cart/checkout.
Vari-Crimp — Universal Crimp

CS23 Vari-Crimp — SAE 45° Seat, Female Swivel, 90° Elbow

CS23 is the SAE 45° Seat, Female Swivel, 90° Elbow configuration of the Vari-Crimp system, terminating 100R1/1SN thin cover, 100R2 thin cover, 2SN, Hy-Plus I and III, 100R16/2SC, Dura-Hyd R16 and EX, 100R17, Dura-Hyd R17, 100R3 and 100R4 hose.

1

What are the main product features?
  • The Vari-Crimp coupling is compatible with virtually all Crimp Machines. Trivalent Zinc Plating.
  • Fits virtually every crimp machine — the most universally crimpable coupling system in the line.
  • One system across the braid hose range — terminates one and two wire braid hose from 1/4" up.
  • For 1-1/2" and 2" 100R2 thin cover — use the GW Series spiral hose couplings instead.
2

Which sizes are available?

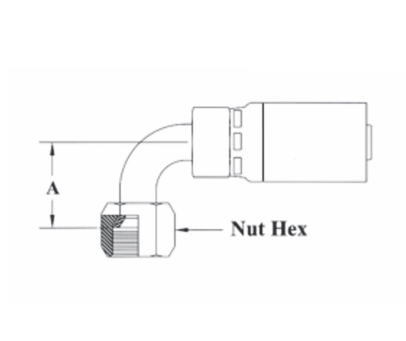

Part Number Hose ID Thread Size Tube OD A-Drop Inches Nut Hex Previous Part Number Cross Reference Part Numbers
Dayco HY Parker HY Weatherhead U
CS23-6X6 3/8" 5/8x18 3/8" 0.91" 3/4" 6151V HY06-06FA90T 179HY-6-6 —
CS23-6X6L 3/8" 5/8x18 3/8" 2.81" 3/4" 6172V HY06-06FA90TL 181HY-6-6 06U-446
i
The cross reference is for thread identification and hose inside diameter only. Exact dimensions of the couplings may vary from manufacturer to manufacturer. Please check hose cut off factor, tube length, and tube drop carefully.

Additional Product Data:

Series:
  • VARI-CRIMP Series
Shape:

90 Degree

Ends Configuration:
  • 3/8in Female SAE 45 Flare
  • 3/8in Hose Barb

Couplamatic Systems Inc

In the business for over 50 years, we're here to bring you the highest quality, most rigorously tested, American made hydraulic components on the market. We utilize state-of-the-art facilities and equipment to produce industry leading, quality hydraulic products. When you buy Couplamatic System Inc. products, you are buying precision and reliability.
