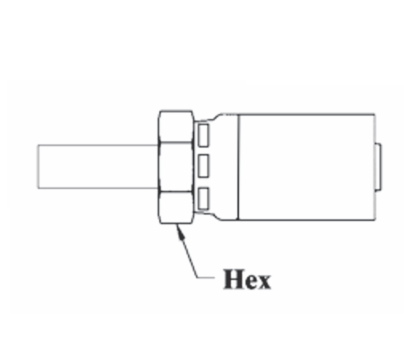

CS21-6X6 by Couplamatic | VARI-CRIMP Coupling | 3/8" Hose ID x 3/8" Tube Size Standpipe | Straight | Trivalent Zinc Plating | Replaces: 6T06V
Couplamatic Systems Inc.
Vari-Crimp Couplings - Standpipe
| Buy More, Save More! | |
| Quantity | Price Each |
| 10–39 | $11.37 |
| 40–79 | $10.29 |
| 80+ | $9.08 |
Discounts applied in cart/checkout.
Product Data:
Series:
Shape:
Straight
Ends Configuration:
Material(s):
Compatible Series:
| Description: | |||
|---|---|---|---|
|
| Part Number | Hose ID | Tube Size | Tube Rise | Hex Size | PreviousPart Number | Cross Reference Part Numbers | ||
|---|---|---|---|---|---|---|---|---|
| Dayco HY | Parker HY | Weatherhead U | ||||||
| CS21-4X4 | 1/4" | 1/4" | 1.10 | 5/8" | 4T04V | HY04-04RL | - | 04U-T04 |
| CS21-6X6 | 3/8" | 3/8" | 1.30" | 3/4" | 6T06V | HY06-06RL | 134HY-6-6 | 06U-T06 |
| CS21-8X8 | 1/2" | 1/2" | 1.58" | 7/8" | 8T08V | HY08-08RL | - | 08U-T08 |
| CS21-10X10 | 5/8" | 5/8" | 1.34" | 1" | 10T10V | HY10-10RL | - | 10U-T10 |
| CS21-12X12 | 3/4" | 3/4" | 1.17" | 1-1/8" | 12T12V | HY12-12RL | 134HY-12-12 | 12U-T12 |
| CS21-16X16 | 1" | 1" | 1.30" | 1-3/8" | 16T16V | HY16-16RL | - | 16U-T16 |
The cross reference is for thread identification and hose inside diameter only. Exact dimensions of the couplings may vary from manufacturer to manufacturer. Please check hose cut off factor, tube length, and tube drop carefully.
