Vari-Crimp — Universal Crimp

CS20 Vari-Crimp — Male Inverted Flare, 90° Elbow

CS20 is the Male Inverted Flare, 90° Elbow configuration of the Vari-Crimp system, terminating 100R1/1SN thin cover, 100R2 thin cover, 2SN, Hy-Plus I and III, 100R16/2SC, Dura-Hyd R16 and EX, 100R17, Dura-Hyd R17, 100R3 and 100R4 hose.

1

What are the main product features?
  • The Vari-Crimp coupling is compatible with virtually all Crimp Machines. Trivalent Zinc Plating.
  • Fits virtually every crimp machine — the most universally crimpable coupling system in the line.
  • One system across the braid hose range — terminates one and two wire braid hose from 1/4" up.
  • For 1-1/2" and 2" 100R2 thin cover — use the GW Series spiral hose couplings instead.
2

Which sizes are available?

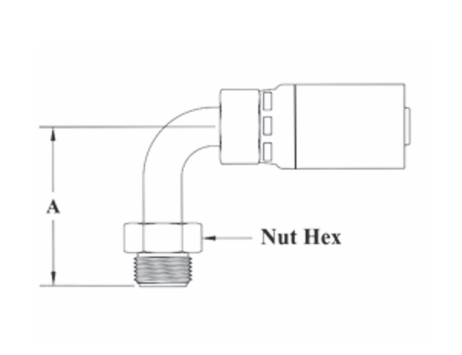

Part Number Hose ID Thread Size Tube OD A-DropInches Nut Hex PreviousPart Number Cross Reference Part Numbers
Dayco HY Parker HY Weatherhead U
CS20-4X3 1/4" 3/8x24 3/16" 1.06 3/8" 4175V HY04-03MF90T 169HY-3-4 04U-B63
CS20-4X4 1/4" 7/16x24 1/4" 1.23 7/16" 4112V HY04-04MF90T 169HY-4-4 04U-B64
CS20-4X5 1/4" 1/2x20 5/16" 1.38 1/2" 4139V HY04-05MF90T 169HY-5-4 04U-B65
CS20-6X4 3/8" 7/16x24 1/4" 1.36 7/16" 6181V HY06-04MF90T 169HY-4-6 06U-B64
CS20-6X5 3/8" 1/2x20 5/16" 1.38 1/2" 6115V HY06-05MF90T 169HY-5-6 06U-B65
CS20-6X6 3/8" 5/8x18 3/8" 1.63 5/8" 6142V HY06-06MF90T 169HY-6-6 06U-B66
CS20-6X7 3/8" 11/16x18 7/16" 1.97 11/16" 6199V HY06-07MF90T 169HY-7-6 06U-B67
CS20-8X8 1/2" 3/4x18 1/2" 2.20 3/4" 8115V HY08-08MF90T 169HY-8-8 08U-B68
i
The cross reference is for thread identification and hose inside diameter only. Exact dimensions of the couplings may vary from manufacturer to manufacturer. Please check hose cut off factor, tube length, and tube drop carefully.

Additional Product Data:

Series:
  • VARI-CRIMP Series
Shape:

90 Degree

Ends Configuration:
  • 7/16in Male Inverted Flare
  • 3/8in Hose Barb

Couplamatic Systems Inc

In the business for over 50 years, we're here to bring you the highest quality, most rigorously tested, American made hydraulic components on the market. We utilize state-of-the-art facilities and equipment to produce industry leading, quality hydraulic products. When you buy Couplamatic System Inc. products, you are buying precision and reliability.
