CS16-6X6 by Couplamatic | VARI-CRIMP Coupling | 3/8" Hose ID x 3/8-18 Thread Female Swivel NPTF | Straight | Trivalent Zinc Plating | Replaces: 684V
Buy more, save moreDiscounts applied in cart/checkout.
Vari-Crimp — Universal Crimp
CS16 Vari-Crimp — NPTF, Female Swivel, Straight
CS16 is the NPTF, Female Swivel, Straight configuration of the Vari-Crimp system, terminating 100R1/1SN thin cover, 100R2 thin cover, 2SN, Hy-Plus I and III, 100R16/2SC, Dura-Hyd R16 and EX, 100R17, Dura-Hyd R17, 100R3 and 100R4 hose.
1
What are the main product features?
- The Vari-Crimp coupling is compatible with virtually all Crimp Machines. Trivalent Zinc Plating.
- Swivel for installation purposes only. Leakage may occur at low pressure.
- Fits virtually every crimp machine — the most universally crimpable coupling system in the line.
- One system across the braid hose range — terminates one and two wire braid hose from 1/4" up.
- For 1-1/2" and 2" 100R2 thin cover — use the GW Series spiral hose couplings instead.
2
Which sizes are available?

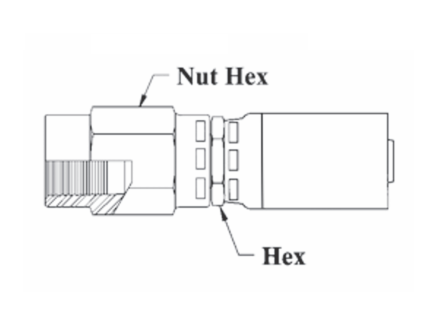

| Part Number | Hose ID | Pipe Size | Thread Size | Hex Size | Nut Hex | Previous Part Number | Cross Reference Part Numbers | |
|---|---|---|---|---|---|---|---|---|
| Parker HY | Weatherhead U | |||||||
| CS16-4X4 | 1/4" | 1/4" | 1/4-18 | 5/8" | 3/4" | 484V | — | 04U-254 |
| CS16-6X6 | 3/8" | 3/8" | 3/8-18 | 11/16" | 7/8" | 684V | — | 06U-256 |
| CS16-8X8 | 1/2" | 1/2" | 1/2-14 | 7/8" | 1" | 884V | — | 08U-258 |
| CS16-12X12 | 3/4" | 3/4" | 3/4-14 | 1-1/8" | 1-1/4" | 1284V | 1S2HY-12-12 | 12U-262 |
The cross reference is for thread identification and hose inside diameter only. Exact dimensions of the couplings may vary from manufacturer to manufacturer. Please check hose cut off factor, tube length, and tube drop carefully.
