CS16-4X4 by Couplamatic | VARI-CRIMP Coupling | 1/4" Hose ID x 1/4-18 Thread Female Swivel NPTF | Straight | Trivalent Zinc Plating | Replaces: 484V

CS16-4X4 by Couplamatic | VARI-CRIMP Coupling | 1/4" Hose ID x 1/4-18 Thread Female Swivel NPTF | Straight | Trivalent Zinc Plating | Replaces: 484V

Sale price$17.73

Couplamatic Systems Inc.
Vari-Crimp Couplings - NPTF - Female Swivel
Buy More, Save More!
Quantity Price Each
10–39 $16.67
40–79 $15.07
80+ $13.30
Discounts applied in cart/checkout.

Product Data:

Series:
  • VARI-CRIMP Series
Shape:

Straight

Ends Configuration:
  • 1/4in Female NPTF
  • 1/4in Hose Barb
Description:
  • The Vari-Crimp coupling is compatible with virtually all Crimp Machines. Trivalent Zinc Plating.
  • Swivel for installation purposes only. Leakage may occur at low pressure.

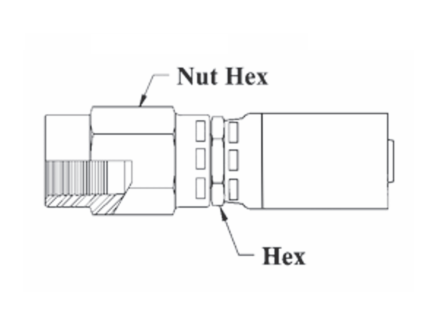

Part Number Hose ID Pipe Size Thread Size Hex Size Nut Hex Previous Part Number Cross Reference Part Numbers
Parker HY Weatherhead U
CS16-4X4 1/4" 1/4" 1/4-18 5/8" 3/4" 484V - 04U-254
CS16-6X6 3/8" 3/8" 3/8-18 11/16" 7/8" 684V - 06U-256
CS16-8X8 1/2" 1/2" 1/2-14 7/8" 1" 884V - 08U-258
CS16-12X12 3/4" 3/4" 3/4-14 1-1/8" 1-1/4" 1284V 1S2HY-12-12 12U-262

The cross reference is for thread identification and hose inside diameter only. Exact dimensions of the couplings may vary from manufacturer to manufacturer. Please check hose cut off factor, tube length, and tube drop carefully.
