CS14-6X8 by Couplamatic | VARI-CRIMP Coupling | 3/8" Hose ID x 1/2-14 Thread Male Swivel NPTF | 90° Elbow | Trivalent Zinc Plating | Replaces: 6251V
Couplamatic Systems Inc.
Vari-Crimp Couplings - NPTF - Male Swivel 90°
| Buy More, Save More! | |
| Quantity | Price Each |
| 10–39 | $17.95 |
| 40–79 | $16.24 |
| 80+ | $14.33 |
Discounts applied in cart/checkout.
Product Data:
Series:
Shape:
90 Degree
Ends Configuration:
Material(s):
Compatible Series:
| Description: | |||
|---|---|---|---|
|

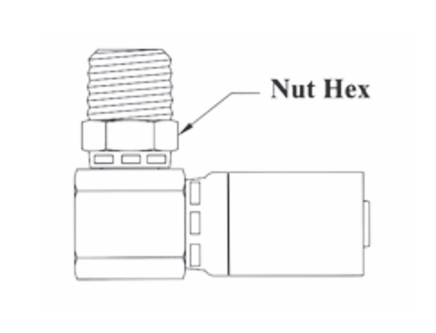

| Part Number | Hose ID | Pipe Size | Thread Size | Nut Hex | Previous Part Number |
|---|---|---|---|---|---|
| CS14-4x4 | 1/4" | 1/4" | 1/4-18 | 5/8" | 4206V |
| CS14-6x6 | 3/8" | 3/8" | 3/8-18 | 3/4" | 6209V |
| CS14-6x8 | 3/8" | 1/2" | 1/2-14 | 7/8" | 6251V |
| CS14-8x8 | 1/2" | 1/2" | 1/2-14 | 7/8" | 8209V |
| CS14-12x12 | 3/4" | 3/4" | 3/4-14 | 1-1/4" | 12209V |
| CS14-16x16 | 1" | 1" | 1-11 1/2 | 1-3/8" | 16209V |
The cross reference is for thread identification and hose inside diameter only. Exact dimensions of the couplings may vary from manufacturer to manufacturer. Please check hose cut off factor, tube length, and tube drop carefully.
