CS12-6X6 by Couplamatic | VARI-CRIMP Coupling | 3/8" Hose ID x 9/16x18 Thread ORB Male Swivel | Straight | Trivalent Zinc Plating | Replaces: 678V
Couplamatic Systems Inc.
Vari-Crimp Couplings - ORB - Male Swivel
| Buy More, Save More! | |
| Quantity | Price Each |
| 10–39 | $10.48 |
| 40–79 | $9.48 |
| 80+ | $8.36 |
Discounts applied in cart/checkout.
Product Data:
Series:
Shape:
Straight
Ends Configuration:
Material(s):
Compatible Series:
| Description: | |||
|---|---|---|---|
|

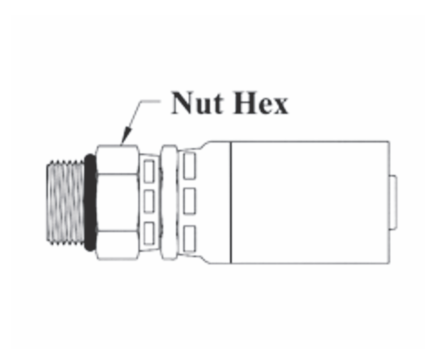

| Part Number | Hose ID | Thread Size | Tube OD | Hex Size | Nut Hex | Previous Part Number | Cross Reference Part Numbers | ||
|---|---|---|---|---|---|---|---|---|---|
| Dayco HY | Parker HY | Weatherhead U | |||||||
| CS12-4X4 | 1/4" | 7/16x20 | 1/4" | 9/16" | 5/8" | 457V | HY04-04RC | 10GHY-4-4 | 04U-R04 |
| CS12-6X6 | 3/8" | 9/16x18 | 3/8" | 11/16" | 3/4" | 678V | HY06-06RC | 10GHY-6-6 | 06U-R06 |
| CS12-6X8 | 3/8" | 3/4x16 | 1/2" | 3/4" | 7/8" | 645V | HY06-08RC | 10GHY-8-6 | 06U-R08 |
| CS12-8X8 | 1/2" | 3/4x16 | 1/2" | 13/16" | 7/8" | 836V | HY08-08RC | 10GHY-8-8 | 08U-R08 |
| CS12-8X10 | 1/2" | 7/8x14 | 5/8" | 13/16" | 1" | 839V | HY08-10RC | 10GHY-10-8 | 08U-R10 |
| CS12-12X12 | 3/4" | 1-1/16x12 | 3/4" | 1-1/8" | 1-1/4" | 1239V | HY12-12RC | 10GHY-12-12 | - |
| CS12-16X16 | 1" | 1-5/16x12 | 1" | 1-3/8" | 1-1/2" | 1639V | - | - | - |
- Swivel for installation purposes only. Leakage may occur at low pressure.
-The cross reference is for thread identification and hose inside diameter only. Exact dimensions of the couplings may vary from manufacturer to manufacturer. Please check hose cut off factor, tube length, and tube drop carefully.
