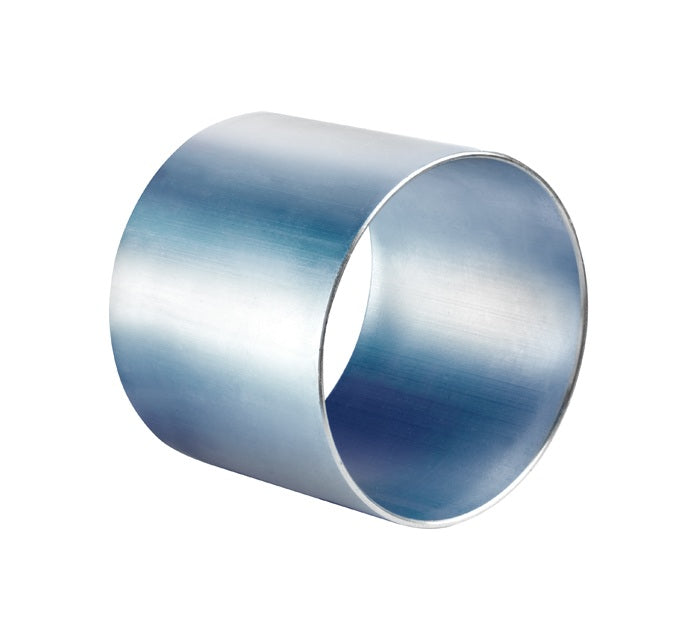

CRS-AL30312 by Kuriyama | CRS-AL Series | Crimp Sleeve | 3.75" Sleeve ID | 0.079" Wall Thickness | Aluminum
Kuriyama of America Inc.
CRS-AL Series | Crimp Sleeve | Aluminum
Sleeves designed for use with a variety of fittings and couplings.
| Buy More, Save More! | |
| Quantity | Price Each |
| 10–39 | $21.97 |
| 40–79 | $19.86 |
| 80+ | $17.53 |
Discounts applied in cart/checkout.
Product Data:
Series:
Material(s):
What are the Features?
- Sleeves designed for use with a variety of fittings and couplings.
What are the Materials?
- Aluminum.
| Part Number | Sleeve ID | Wall Thickness | Length | Weight Each | |||
|---|---|---|---|---|---|---|---|
| (in) | (mm) | (in) | (mm) | (in) | (mm) | (lbs) | |
| CRS-AL20209 | 2.56" | 65.00mm | 0.079" | 2.00mm | 2.79" | 70.9mm | 0.18 lbs |
| CRS-AL20210 | 2.63" | 66.80mm | 0.079" | 2.00mm | 2.79" | 70.9mm | 0.18 lbs |
| CRS-AL20211 | 2.69" | 68.30mm | 0.079" | 2.00mm | 2.79" | 70.9mm | 0.19 lbs |
| CRS-AL20213 | 2.81" | 71.40mm | 0.079" | 2.00mm | 2.79" | 70.9mm | 0.20 lbs |
| CRS-AL20215 | 2.94" | 74.70mm | 0.079" | 2.00mm | 2.79" | 70.9mm | 0.21 lbs |
| CRS-AL30310 | 3.63" | 92.20mm | 0.079" | 2.00mm | 3.94" | 100.1mm | 0.35 lbs |
| CRS-AL30312 | 3.75" | 95.30mm | 0.079" | 2.00mm | 3.94" | 100.1mm | 0.36 lbs |
| CRS-AL30313 | 3.81" | 96.80mm | 0.079" | 2.00mm | 3.94" | 100.1mm | 0.37 lbs |
| CRS-AL30400 | 4.00" | 101.60mm | 0.079" | 2.00mm | 3.94" | 100.1mm | 0.39 lbs |
| CRS-AL40411 | 4.69" | 119.10mm | 0.098" | 2.50mm | 4.19" | 106.4mm | 0.60 lbs |
| CRS-AL40412 | 4.75" | 120.70mm | 0.098" | 2.50mm | 4.19" | 106.4mm | 0.61 lbs |
| CRS-AL40413 | 4.81" | 122.20mm | 0.098" | 2.50mm | 4.19" | 106.4mm | 0.62 lbs |
| CRS-AL40500 | 5.00" | 127.00mm | 0.098" | 2.50mm | 4.19" | 106.4mm | 0.64 lbs |
