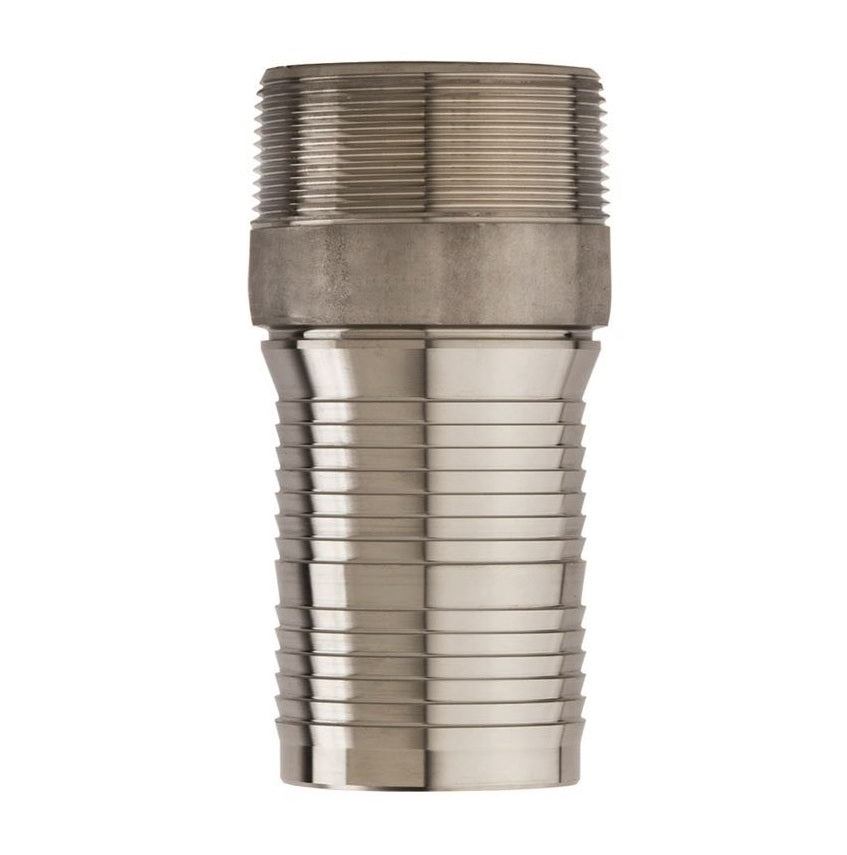

CRN-SS400 KuriCrimp™ by Kuriyama | CRN-SS Series | Combination Interlocking Hose Nipple | Tri-Couple Design | 4" Male NPT x 4" Hose Barb | 316 Stainless Steel

CRN-SS400 KuriCrimp™ by Kuriyama | CRN-SS Series | Combination Interlocking Hose Nipple | Tri-Couple Design | 4" Male NPT x 4" Hose Barb | 316 Stainless Steel

Sale price$290.17
Buy more, save moreDiscounts applied in cart/checkout.

What are the Features?

  • Versatile hose connectors designed to connect hose and pipes of the same thread size.
  • Tri-Couple design available in all sizes for each item.
  • Frequently used in low pressure suction and discharge applications, and can be connected to many different types of strainers and couplings.
  • Multi-serrated barb design allows for secure hose grip when properly clamped or crimped.

What are the Materials?

  • 316 Stainless Steel - Complies with ASTM A276 grade 316 welded pipe.
Part Number Size
(in)		 PSI Rating
at 70°F		 Weight
Each
(lbs)
CRN-SS100* 1" 250 PSI 0.40 lbs
CRN-SS150* 1-1/2" 250 PSI 0.80 lbs
CRN-SS200* 2" 250 PSI 1.25 lbs
CRN-SS250* 2-1/2" 150 PSI 1.91 lbs
CRN-SS300* 3" 150 PSI 2.35 lbs
CRN-SS400* 4" 150 PSI 3.45 lbs

* Tri-Couple fitting.

Additional Product Data:

Brand:
  • KuriCrimp
Series:
  • CRN-SS Series
MAWP:

150

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
