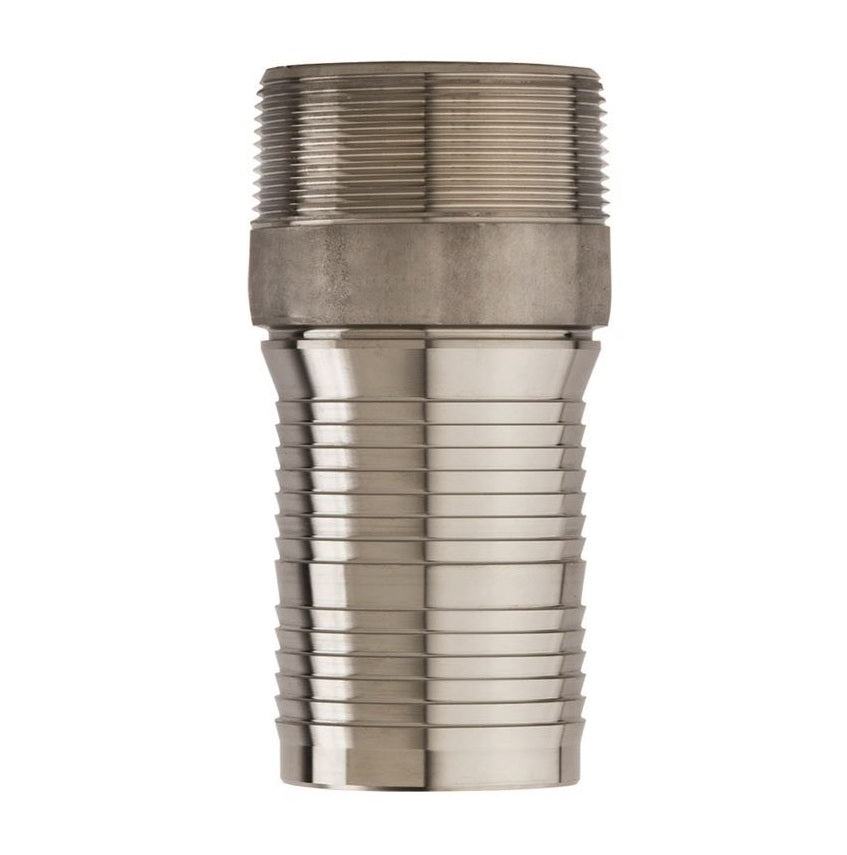

CRN-SS300 KuriCrimp™ by Kuriyama | CRN-SS Series | Combination Interlocking Hose Nipple | Tri-Couple Design | 3" Male NPT x 3" Hose Barb | 316 Stainless Steel
Kuriyama of America Inc.
KuriCrimp™ | CRN-SS Series | Combination Interlocking Hose Nipple | Male NPT x Hose Barb | 316 Stainless Steel
Versatile hose connectors designed to connect hose and pipes of the same thread size.
Frequently used in low pressure suction and discharge applications, and can be connected to many different types of strainers and couplings.
| Buy More, Save More! | |
| Quantity | Price Each |
| 5–19 | $226.02 |
| 20–59 | $204.38 |
| 60+ | $180.34 |
Discounts applied in cart/checkout.
Product Data:
Brand:
Series:
MAWP:
150
Shape:
Straight
Ends Configuration:
Material(s):
Specifications and Approvals:
What are the Features?
- Versatile hose connectors designed to connect hose and pipes of the same thread size.
- Tri-Couple design available in all sizes for each item.
- Frequently used in low pressure suction and discharge applications, and can be connected to many different types of strainers and couplings.
- Multi-serrated barb design allows for secure hose grip when properly clamped or crimped.
What are the Materials?
- 316 Stainless Steel - Complies with ASTM A276 grade 316 welded pipe.
| Part Number | Size (in) |
PSI Rating at 70°F |
Weight Each (lbs) |
|---|---|---|---|
| CRN-SS100* | 1" | 250 PSI | 0.40 lbs |
| CRN-SS150* | 1-1/2" | 250 PSI | 0.80 lbs |
| CRN-SS200* | 2" | 250 PSI | 1.25 lbs |
| CRN-SS250* | 2-1/2" | 150 PSI | 1.91 lbs |
| CRN-SS300* | 3" | 150 PSI | 2.35 lbs |
| CRN-SS400* | 4" | 150 PSI | 3.45 lbs |
* Tri-Couple fitting.
