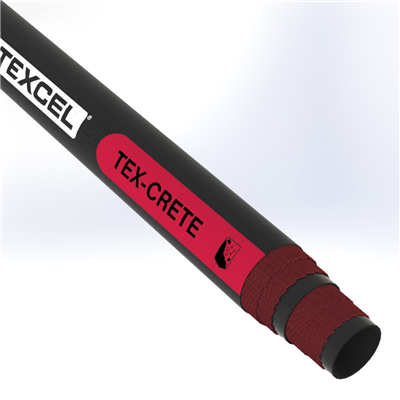

CRETE-3.5-100B by Texcel | TEX-CRETE Series | Textile Concrete Hose | 3-1/2" Hose ID | 1230 PSI | Black
Buy more, save moreDiscounts applied in cart/checkout.
Material Handling Hose
TEX-CRETE Fabric Concrete Placement Hose
Designed to provide the ultimate combination of handling ease, abuse resistance and long service life required for plaster, grout and concrete placement applications.
1
What is this hose used for?
Ideal for concrete pumping applications.
- Plaster
- Grout
- Concrete placement
- Concrete pumping
2
What are the key specifications?
Tube
Black, wear-resistant GUM/SBR blend
Cover
Black, SBR, cut- and gouge-resistant
Reinforcement
Multiple plies of high tensile tire cord
Temperature Range
-40°F to +200°F
Safety Factor
2:1 (per ASME standards)
Working Pressure
1,230 psi (85 bar)
Standards
Meets ASME B30.27-2009 specifications
Branding
TEXCEL® TEX-CRETE - FABRIC CONCRETE PLACEMENT HOSE 1230 PSI (85 BAR) W.P. XXX LBS/FT (F.W.C)
3
Which sizes are available?
| Part Number | Hose ID | Hose OD | Working Pressure (psi / bar) | Burst Pressure (psi / bar) | Bend Radius | Weight (lbs/ft) |
|---|---|---|---|---|---|---|
| CRETE-1.0-100B | 1" | 1-43/64" | 1230/85 | 2460/170 | 6" | 0.69 |
| CRETE-1.25-100B | 1-1/4" | 2" | 1230/85 | 2460/170 | 8" | 0.86 |
| CRETE-1.5-100B | 1-1/2" | 2-12/64" | 1230/85 | 2460/170 | 10" | 0.92 |
| CRETE-2.0-100B | 2" | 2-49/64" | 1230/85 | 2460/170 | 12" | 1.45 |
| CRETE-2.5-100B | 2-1/2" | 3-22/64" | 1230/85 | 2460/170 | 14" | 1.71 |
| CRETE-3.0-100B | 3" | 4" | 1230/85 | 2460/170 | 15" | 2.40 |
| CRETE-3.5-100B | 3-1/2" | 4-31/64" | 1230/85 | 2460/170 | 16" | 3.07 |
| CRETE-4.0-100B | 4" | 5-10/64" | 1230/85 | 2460/170 | 18" | 4.06 |
| CRETE-4.5-100B | 4-1/2" | 5-38/64" | 1230/85 | 2460/170 | 21" | 4.22 |
| CRETE-5.0-100B | 5" | 6-19/64" | 1230/85 | 2460/170 | 24" | 5.80 |
| CRETE-6.0-100B | 6" | 7-21/64" | 1230/85 | 2460/170 | 30" | 6.80 |
Additional Product Data:
Series:
Color(s):
Internal Diameter:
Outer Diameter:
Tubing Construction:
Cover Construction:
