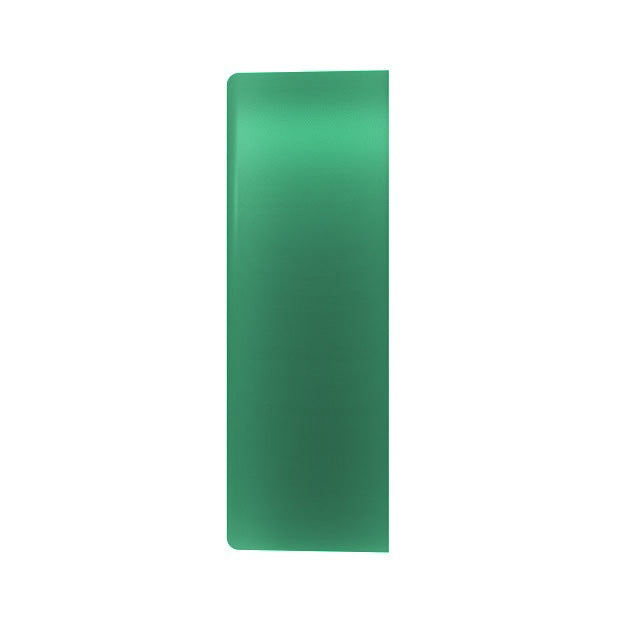

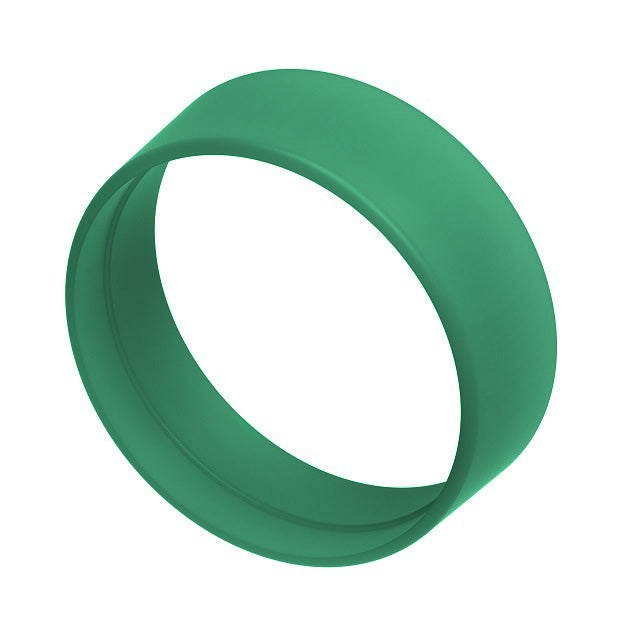

CR19FFPDG Hansen® by Danfoss | Quick Disconnect Coupling | Color Coding Ring for FF Series/MLFF Series Plugs | 3/4" Body Size | Green
CR19FFPDG Hansen® by Danfoss | Quick Disconnect Coupling | Color Coding Ring for FF Series/MLFF Series Plugs | 3/4" Body Size | Green
CR19FFPDG Hansen® by Danfoss | Quick Disconnect Coupling | Color Coding Ring for FF Series/MLFF Series Plugs | 3/4" Body Size | Green
CR19FFPDG Hansen® by Danfoss | Quick Disconnect Coupling | Color Coding Ring for FF Series/MLFF Series Plugs | 3/4" Body Size | Green

CR19FFPDG Hansen® by Danfoss | Quick Disconnect Coupling | Color Coding Ring for FF Series/MLFF Series Plugs | 3/4" Body Size | Green

Minimum Order Quantity: 5 Units

Sale price$4.89

Hansen® by Danfoss
FF Series | MLFF Series | Flat Face ISO 16028 Interchange | Color Coding Ring

Color identification rings to help prevent crossing of lines.
Buy More, Save More!
Quantity Price Each
20–39 $4.60
40–79 $4.16
80+ $3.67
Discounts applied in cart/checkout.

Product Data:

Brand:
  • Hansen
Series:
  • FF Series/MLFF Series
Product Features:
  • Good thermal, chemical and weather resistance provides a great fit on the coupling and a extended life time in toughest conditions.
  • The color coded rings are easy to install by using the referenced tools.
Materials:
  • For color coded rings TPE material is used that offers excellent flexibility which allows a very good shock resistance in demanding applications
Rings for Socket/Female
Blue
Part Number		 Red
Part Number		 Yellow
Part Number		 Green
Part Number		 Body Size ISO Size Series Installation Tool
Part Number
CR10FFSLB CR10FFSRD CR10FFSYL CR10FFSDG 3/8" 10mm 10FF / 10MLFF CR10FFSP93
CR12FFSLB CR12FFSRD CR12FFSYL CR12FFSDG 1/2" 12.5mm 12FF / 12MLFF CR12FFSP93
CR16FFSLB CR16FFSRD CR16FFSYL CR16FFSDG 5/8" 16mm 16FF / 16MLFF CR16FFSP93
CR19FFSLB CR19FFSRD CR19FFSYL CR19FFSDG 3/4" 19mm 19FF / 19MLFF CR19FFSP93
Rings for Plug/Male
Blue
Part Number		 Red
Part Number		 Yellow
Part Number		 Green
Part Number		 Body Size ISO Size Series Installation Tool
Part Number
CR10FFPLB CR10FFPRD CR10FFPYL CR10FFPDG 3/8" 10mm 10FF / 10MLFF CR10FFSP93
CR12FFPLB CR12FFPRD CR12FFPYL CR12FFPDG 1/2" 12.5mm 12FF / 12MLFF CR12FFSP93
CR16FFPLB CR16FFPRD CR16FFPYL CR16FFPDG 5/8" 16mm 16FF / 16MLFF CR16FFSP93
CR19FFPLB CR19FFPRD CR19FFPYL CR19FFPDG 3/4" 19mm 19FF / 19MLFF CR19FFSP93

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
