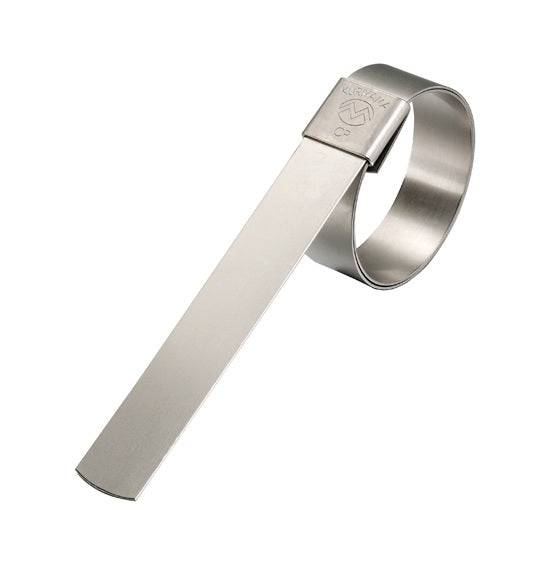

CPSS20 by Kuriyama | CPSS Series | Center Punch Hose Clamp | 5" Clamp ID | 5/8" Band Width | 0.025" Thickness | 201 Stainless Steel | 25 Pieces per Box
Kuriyama of America Inc.
CPSS Series | Center Punch Hose Clamp | 201 Stainless Steel
Double wrapped for secure holding ability.
Compatible with most pneumatic or hand operated tools.
Package Quantity: 25 Units
| Buy More, Save More! | |
| Quantity | Price Each |
| 5–19 | $83.39 |
| 20–59 | $75.40 |
| 60+ | $66.53 |
Discounts applied in cart/checkout.
What are the Features?
- Double wrapped for secure holding ability.
- A bolt free design provides for a professional low profile hose assembly.
- Compatible with most pneumatic or hand operated tools.
How is it Constructed?
- 201 stainless steel offers superior strength combined with good corrosion resistance to mild chemicals.
| Part Number | Clamp ID (in) |
Band Width (in) |
Thickness (in) |
|---|---|---|---|
| CPSS05 | 1-1/4" | 5/8" | 0.025 |
| CPSS06 | 1-1/2" | 5/8" | 0.025 |
| CPSS08 | 2" | 5/8" | 0.025 |
| CPSS10 | 2-1/2" | 5/8" | 0.025 |
| CPSS11 | 2-3/4" | 5/8" | 0.025 |
| CPSS12 | 3" | 5/8" | 0.025 |
| CPSS14 | 3-1/2" | 5/8" | 0.025 |
| CPSS16 | 4" | 5/8" | 0.025 |
| CPSS18 | 4-1/2" | 5/8" | 0.025 |
| CPSS20 | 5" | 5/8" | 0.025 |
| CPSS24 | 6" | 5/8" | 0.025 |
| CPSS28 | 7" | 5/8" | 0.025 |
| CPSS32 | 8" | 5/8" | 0.025 |
Product Data:
Series:
Material(s):
Clamp Thickness:
0.025in
Clamp Width:
0.625in
Maximum Clamp I.D.:
5in
