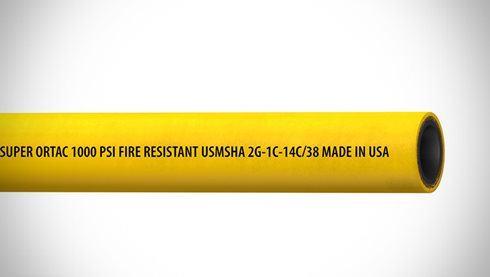

20024074 Super Ortac® by ContiTech | Heavy Duty Air / Multipurpose Hose | Continental | 1.50" (1-1/2") ID | 1000 PSI | Yellow | 100ft
Minimum Order Quantity: 40 Units
Continental ContiTech Super Ortac® Heavy Duty Air & Multipurpose Hose
For heavy-duty service in handling air, water, oil, petroleum-based solvents and agricultural spray solutions.
This hose ships in 50ft reels
Package Quantity: 100 FT
| Buy More, Save More! | |
| Quantity | Price Each |
| 4–7 | $1,790.78 |
| 8–14 | $1,714.57 |
| 15+ | $1,524.06 |
Discounts applied in cart/checkout.
Product Data:
Brand:
Series:
Color(s):
Internal Diameter:
Outer Diameter:
MAWP:
1000
Tubing Construction:
Cover Construction:
Specifications and Approvals:
| Application: | Air, water, oil, petroleum based solvents and agricultural spray solutions. | SAE Rating: | N/A |
|---|---|---|---|
| Other Ratings: | MSHA approved | Tube: | Nitrile synthetic rubber, ARPM Class B (Medium Oil Resistance) |
| Reinforcement: | One braided steel wire | Cover: | Yellow Chemivic synthetic rubber, ARPM Class B (Medium Oil Resistance), smooth finish, pin-pricked, MSHA approved |
| Temperature Range: | -20°F to 210°F (-29°C to 99°C) | Fittings: | N/A |
| Branding: | Continental ContiTech 1" Super Ortac® 1000 psi Fire-resistant USMSHA 2G-IC-14C/38 Made in USA | ||
| Yellow Part Number |
Inside Diameter |
Nominal Outside Diameter |
Max. Working Pressure |
Length | Weight | Yellow Order Code |
||||
|---|---|---|---|---|---|---|---|---|---|---|
| in. | mm | in. | mm | PSI | MPa | lb./ft. | kg/m | |||
| 20024049 | 1/2" | 12.7mm | 0.91" | 23.1mm | 1000 PSI | 6.9 MPa | 500ft | 0.34 lbs./ft. | 0.51 kg/m | 53915201600200 |
| 20024051 | 1/2" | 12.7mm | 0.91" | 23.1mm | 1000 PSI | 6.9 MPa | 50ft | 0.34 lbs./ft. | 0.51 kg/m | 53915201605000 |
| 20024054 | 3/4" | 19.1mm | 1.14" | 29.0mm | 1000 PSI | 6.9 MPa | 500ft | 0.44 lbs./ft. | 0.65 kg/m | 53915202400200 |
| 20024056 | 3/4" | 19.1mm | 1.14" | 29.0mm | 1000 PSI | 6.9 MPa | 50ft | 0.44 lbs./ft. | 0.65 kg/m | 53915202405000 |
| 20024064 | 1" | 25.4mm | 1.45" | 36.8mm | 1000 PSI | 6.9 MPa | 500ft | 0.63 lbs./ft. | 0.94 kg/m | 53915203200200 |
| 20024066 | 1" | 25.4mm | 1.45" | 36.8mm | 1000 PSI | 6.9 MPa | 50ft | 0.63 lbs./ft. | 0.94 kg/m | 53915203205000 |
| 20024068 | 1-1/4" | 31.8mm | 1.75" | 44.5mm | 1000 PSI | 6.9 MPa | 300ft | 0.86 lbs./ft. | 1.28 kg/m | 53915204000200 |
| 20024070 | 1-1/4" | 31.8mm | 1.75" | 44.5mm | 1000 PSI | 6.9 MPa | 50ft | 0.86 lbs./ft. | 1.28 kg/m | 53915204005000 |
| 20024072 | 1-1/2" | 38.1mm | 1.98" | 50.8mm | 1000 PSI | 6.9 MPa | 300ft | 1.08 lbs./ft. | 1.61 kg/m | 53915204800200 |
| 20024074 | 1-1/2" | 38.1mm | 1.98" | 50.8mm | 1000 PSI | 6.9 MPa | 50ft | 1.08 lbs./ft. | 1.61 kg/m | 53915204805000 |
| 20024077 | 2" | 50.8mm | 2.55" | 64.3mm | 1000 PSI | 6.9 MPa | 50ft | 1.57 lbs./ft. | 2.34 kg/m | 53915206405000 |
Hose design ratio (burst pressure) 4:1.
