20316407 Steel Air by ContiTech | Heavy Duty Air / Multipurpose Hose | Continental | (MSHA IC 11/7) | 2.00" (2") ID | 500 PSI | Yellow | 50ft
Minimum Order Quantity: 8 Units

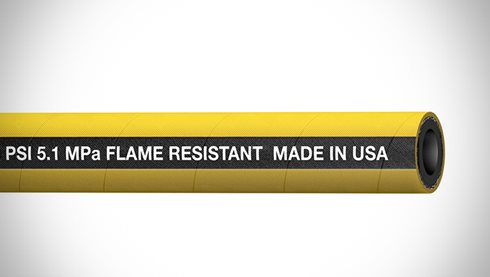

Continental ContiTech Super Steel Air Heavy Duty Air & Multipurpose Hose
A heavy-duty, wrapped finish, single wire braid or spiral ply wire air hose for higher pressure service in severe industrial applications, including service in mines, quarries and construction jobs.
Package Quantity: 50 FT
| Buy More, Save More! | |
| Quantity | Price Each |
| 4–7 | $1,402.21 |
| 8–14 | $1,342.54 |
| 15+ | $1,193.37 |
Discounts applied in cart/checkout.
Product Data:
Brand:
Series:
Color(s):
Internal Diameter:
Outer Diameter:
MAWP:
500
Tubing Construction:
Cover Construction:
Specifications and Approvals:
| Application: | High pressure service, mines, quarries and construction. | SAE Rating: | N/A |
|---|---|---|---|
| Other Ratings: | 1/2"-1-1/2": MSHA 2G-IC-14C/38 2"-4": MSHA IC 11/7 |
Tube: | Black nitrile synthetic rubber, ARPM Class B (Medium Oil Resistance) |
| Reinforcement: | 1/2"-1-1/2": One braided steel wire 2"-4": Spiral-plied steel wire |
Cover: | Yellow Chemivic synthetic rubber (wrapped impression), ARPM Class B (Medium Oil Resistance), MSHA approved |
| Temperature Range: | -40°F to 210°F (-40°C to 99°C) | Fittings: | N/A |
| Branding: | Continental ContiTech Steel Air 500 psi 3.4 MPa 2" (50.8 mm) | ||
| Yellow Part Number |
Inside Diameter |
Nominal Outside Diameter |
Max. Working Pressure |
Length | Weight | Yellow Order Code |
||||
|---|---|---|---|---|---|---|---|---|---|---|
| in. | mm | in. | mm | PSI | MPa | lb./ft. | kg/m | |||
| 20174709 | 1/2" | 12.7mm | 0.91" | 23.1mm | 750 PSI | 5.17 MPa | 50ft | 0.34 lbs./ft. | 0.51 kg/m | 53915901605000 |
| 20174720 | 1/2" | 12.7mm | 0.91" | 23.1mm | 750 PSI | 5.17 MPa | 100ft | 0.34 lbs./ft. | 0.51 kg/m | 53915901610000 |
| 20174723 | 3/4" | 19.1mm | 1.14" | 29.0mm | 750 PSI | 5.17 MPa | 50ft | 0.45 lbs./ft. | 0.67 kg/m | 53915902405000 |
| 20174724 | 3/4" | 19.1mm | 1.14" | 29.0mm | 750 PSI | 5.17 MPa | 100ft | 0.45 lbs./ft. | 0.67 kg/m | 53915902410000 |
| 20174774 | 1" | 25.4mm | 1.45" | 36.6mm | 750 PSI | 5.17 MPa | 50ft | 0.66 lbs./ft. | 1.00 kg/m | 53915903205000 |
| 20018776 | 1" | 25.4mm | 1.45" | 36.6mm | 750 PSI | 5.17 MPa | 100ft | 0.66 lbs./ft. | 1.00 kg/m | 53915903210000 |
| 20317183 | 1-1/2" | 38.1mm | 1.98" | 50.2mm | 500 PSI | 3.45 MPa | 100ft | 0.97 lbs./ft. | 1.44 kg/m | 53915904810000 |
| 20316407 | 2" | 50.8mm | 2.66" | 67.6mm | 500 PSI | 3.45 MPa | 50ft | 1.59 lbs./ft. | 2.36 kg/m | 54920906400500 |
| 20316409 | 2" | 50.8mm | 2.66" | 67.6mm | 500 PSI | 3.45 MPa | 100ft | 1.59 lbs./ft. | 2.36 kg/m | 54920906401000 |
| 20817755 | 3" | 76.2mm | 3.81" | 96.8mm | 500 PSI | 3.45 MPa | 100ft | 3.07 lbs./ft. | 4.57 kg/m | 54920910701000 |
Hose design ratio (burst pressure) 4:1.
