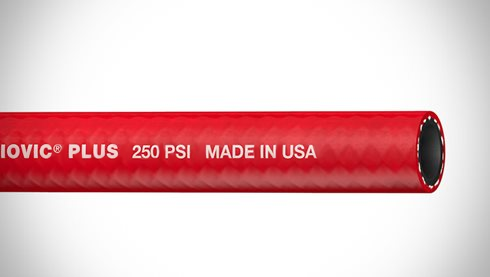

20012609 Pliovic® by ContiTech | Plus 250 Air / Multipurpose Hose | Continental | 0.625" (5/8") ID | 250 PSI | Red | 500ft

20012609 Pliovic® by ContiTech | Plus 250 Air / Multipurpose Hose | Continental | 0.625" (5/8") ID | 250 PSI | Red | 500ft

Sale price$1,245.00

Continental ContiTech Pliovic® Plus 250 Air & Multipurpose Hose

A lightweight, economical general purpose hose for carrying air, water and many spray solutions, Pliovic® is suitable for a wide range of industrial, construction, agricultural hand sprayers and many multipurpose applications. Nonconductive, minimum electrical resistance greater than 1 megohm per inch of hose length at 1000 volts DC.

Package Quantity: 500 FT

Buy More, Save More!
Quantity Price Each
4–7 $1,170.30
8–14 $1,120.50
15+ $996.00
Discounts applied in cart/checkout.

Product Data:

Brand:
  • Pliovic Plus 250
Series:
  • Pliovic Plus 250
Color(s):
  • Red

SPECIFICATIONS

Application: Air, water and spray solutions in industrial, construction, and agricultural industries. SAE Rating: N/A
Other Ratings: N/A Tube: Black Pliovic®, ARPM Class B (Medium Oil Resistance)
Reinforcement: Spiral synthetic yarn Cover: Pliovic®, thick smooth finish, ARPM Class B (Medium Oil Resistance)
Temperature Range: -10°F to 158°F (-23°C to 70°C) Fittings: N/A
Branding: Pliovic® Plus 3/8" ID (9.5 mm) 250 psi WP. Made in USA. ContiTech
Blue
Part Number		 Red
Part Number		 Green
Part Number		 Black
Part Number		 Yellow
Part Number		 Inside
Diameter		 Nominal Outside
Diameter		 Max. Working
Pressure		 Length Weight Blue
Order Code		 Red
Order Code		 Green
Order Code		 Black
Order Code		 Yellow
Order Code
in. mm in. mm PSI MPa lb./ft. kg/m
20012644 20012588 20012688 20012696 20012742 1/4" 6.4mm 0.50" 12.7mm 250 PSI 1.72 MPa 750ft 0.08 lbs./ft. 0.12 kg/m 54022700800002 54020100800002 54023200800002 54023300800002 54025700800002
20012651 - 20012689 20012700 20012746 3/8" 9.5mm 0.66" 16.8mm 250 PSI 1.72 MPa 750ft 0.13 lbs./ft. 0.19 kg/m 54022701200002 54020101200002 54023201200002 54023301200002 54025701200002
20012668 20012605 20012691 20012703 20012755 1/2" 12.7mm 0.81" 20.6mm 250 PSI 1.72 MPa 750ft 0.17 lbs./ft. 0.25 kg/m 54022701600002 54020101600002 54023201600002 54023301600002 54025701600002
20012677 20012609 20012692* 20012704 20753492 5/8" 15.9mm 0.94" 23.9mm 250 PSI 1.72 MPa 500ft 0.20 lbs./ft. 0.30 kg/m 54022702000002 54020102000002 54023202000002 54023302000002 54025702030002
20012678 20012610 20012694 20012705 20012756 3/4" 19.1mm 1.11" 28.2mm 250 PSI 1.72 MPa 450ft 0.28 lbs./ft. 0.42 kg/m 54022702400002 54020102400002 54023202400002 54023302400002 54025702400002
20012680 20012615 20012695 20012707 20012758 1" 25.4mm 1.38" 35.1mm 200 PSI 1.38 MPa 400ft 0.37 lbs./ft. 0.55 kg/m 54022703200002 54020103200002 54023203200002 54023303200002 54025703200002

*750ft

Hose design ratio (burst pressure) 4:1.

Continental ContiTech

ContiTech specializes in the engineering and distribution of innovative, reliable and high-performance industrial hose products for a vast array of industrial, commercial and residential applications. They are used in machine and plant engineering, mining, agriculture, the automotive industry, and other important sectors of the future.
