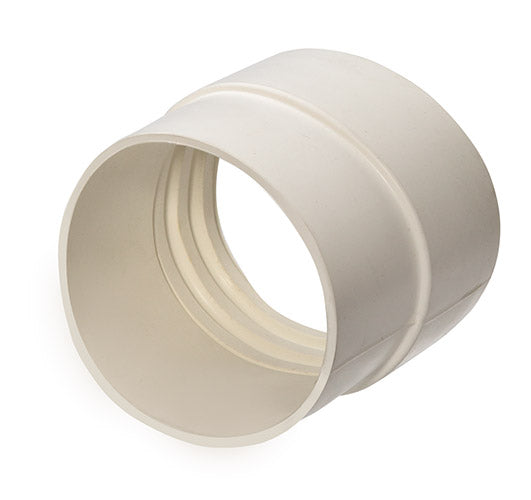

CMCW-400 Tiger-Duct® by Kuriyama | Extendo-Duct® | CMCW Series | Molded Cuff for Ducting Hose | 4" ID | 3.54" Length | White
Minimum Order Quantity: 5 Units
Tiger-Duct® by Kuriyama
Extendo-Duct® | CMCB / CMCW Series | Molded Cuff for Ducting Hose
For use on Extendo-Duct Air Ducting Hose.
| Buy More, Save More! | |
| Quantity | Price Each |
| 20–29 | $210.18 |
| 30–59 | $190.06 |
| 60+ | $167.70 |
Discounts applied in cart/checkout.
Product Data:
Brand:
Series:
Color(s):
Internal Diameter:
Tubing Construction:
| Construction: | |||
|---|---|---|---|
|
|||
| Notes: | |||
|
 |
||||||
|---|---|---|---|---|---|---|
| Part Number Brown |
Part Number White |
ID | L Total Length |
A Cuff Length Outside |
B Cuff Length Inside |
T Thickness |
| CMCB-150 | CMCW-150 | 1-1/2" | 2.76" | 1.38" | 1.57" | 3mm |
| CMCB-200 | CMCW-200 | 2" | 2.76" | 1.38" | 1.57" | 3mm |
| CMCB-250 | CMCW-250 | 2-1/2" | 2.76" | 1.38" | 1.57" | 3mm |
| CMCB-300 | CMCW-300 | 3" | 3.15" | 1.57" | 1.77" | 3mm |
| CMCB-400 | CMCW-400 | 4" | 3.54" | 1.77" | 1.97" | 3mm |
| CMCB-500 | CMCW-500 | 5" | 3.74" | 1.77" | 1.93" | 3.5mm |
| CMCB-600 | CMCW-600 | 6" | 3.94" | 1.77" | 2.17" | 3mm |
