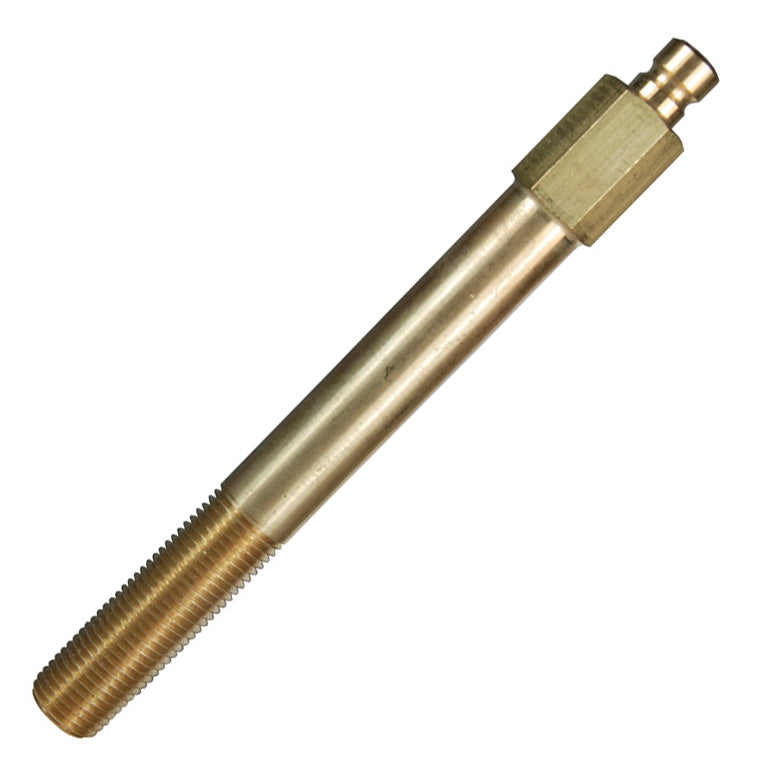

Hydraulic Coupling: CM-Series Industrial Mold Interchange Extension Plug (Male Threads)
Buy More, Save More!
Quantity Price Each
10–39 $22.63
40–79 $20.46
80+ $18.05
Discounts applied in cart/checkout.

Product Data:

Series:
  • CM-Series
Shape:

Straight

Ends Configuration:
  • 1/4in Male CM-Series QD Interchange
  • 1/4in Male NPTF
Compatibility & Interchange:
  • Mold Coolant Interchange
  • Foster Series- FJT, Hansen Flo-Temp, Tomco MC-Series, Parker Moldmate, DME Jiffy-Tite
Construction:
  • Machined components are manufactured using solid steel or brass bar stock.
Safety Notes:
  • Maximum working and burst pressure is based on a coupled set, contact Dixon for pressure ratings.
Additional Information:
CM-Series | Industrial Mold Interchange (Connected) Rated Pressure Chart
Body
Size		 Unvalved Coupler/Brass Plug Unvalved Coupler/Steel Plug Valved Coupler/Brass Plug Valved Coupler/Steel Plug Locking Ball
Quantity		 Flow
?P = 7 PSI
Max.
Working		 Burst Max.
Working		 Burst Max.
Working		 Burst Max.
Working		 Burst
1/4" 300 PSI
(20 Bar)		 10,000 PSI
(700 Bar)		 500 PSI
(35 Bar)		 10,700 PSI
(750 Bar)		 300 PSI
(20 Bar)		 6,000 PSI
(400 Bar)		 300 PSI
(20 Bar)		 6,100 PSI
(400 Bar)		 6 3 GPM
3/8" 300 PSI
(20 Bar)		 14,500 PSI
(1,000 Bar)		 500 PSI
(35 Bar)		 14,200 PSI
(1,000 Bar)		 300 PSI
(20 Bar)		 6,700 PSI
(450 Bar)		 300 PSI
(20 Bar)		 6,100 PSI
(400 Bar)		 8 9 GPM
1/2" 300 PSI
(20 Bar)		 4,900 PSI
(340 Bar)		 - - - - - - 8 15 GPM
CM-Series | Industrial Mold Interchange Extension Plug (Male Threads)
Part
Number		 Coupling
Type		 Body
Size		 Thread Size Material Length Max.
OD		 Hex
CM2M1-B-L2.5 Plug/Male 1/4" 1/8" - 27 Male NPTF Brass 2.50"
(63.5mm)		 0.51"
(13.0mm)		 7/16"
CM2M1-B-L4 Plug/Male 1/4" 1/8" - 27 Male NPTF Brass 4.00"
(101.6mm)		 0.51"
(13.0mm)		 7/16"
CM2M1-B-L5.5 Plug/Male 1/4" 1/8" - 27 Male NPTF Brass 5.50"
(139.7mm)		 0.51"
(13.0mm)		 7/16"
CM2M2-B-L2.5 Plug/Male 1/4" 1/4" - 18 Male NPTF Brass 2.50"
(63.5mm)		 0.65"
(16.5mm)		 9/16"
CM2M2-B-L4 Plug/Male 1/4" 1/4" - 18 Male NPTF Brass 4.00"
(101.6mm)		 0.65"
(16.5mm)		 9/16"
CM2M2-B-L5.5 Plug/Male 1/4" 1/4" - 18 Male NPTF Brass 5.50"
(139.7mm)		 0.65"
(16.5mm)		 9/16"
CM2M2-B-L7 Plug/Male 1/4" 1/4" - 18 Male NPTF Brass 7.00"
(177.8mm)		 0.65"
(16.5mm)		 9/16"
CM3M1-B-L2.5 Plug/Male 3/8" 1/8" - 27 Male NPTF Brass 2.50"
(63.5mm)		 0.65"
(16.5mm)		 9/16"
CM3M1-B-L4 Plug/Male 3/8" 1/8" - 27 Male NPTF Brass 4.00"
(101.6mm)		 0.65"
(16.5mm)		 9/16"
CM3M1-B-L5.5 Plug/Male 3/8" 1/8" - 27 Male NPTF Brass 5.50"
(139.7mm)		 0.65"
(16.5mm)		 9/16"
CM3M1-B-L7 Plug/Male 3/8" 1/8" - 27 Male NPTF Brass 7.00"
(177.8mm)		 0.65"
(16.5mm)		 9/16"
CM3M2-B-L2.5 Plug/Male 3/8" 1/4" - 18 Male NPTF Brass 2.50"
(63.5mm)		 0.65"
(16.5mm)		 9/16"
CM3M2-B-L4 Plug/Male 3/8" 1/4" - 18 Male NPTF Brass 4.00"
(101.6mm)		 0.65"
(16.5mm)		 9/16"
CM3M2-B-L5.5 Plug/Male 3/8" 1/4" - 18 Male NPTF Brass 5.50"
(139.7mm)		 0.65"
(16.5mm)		 9/16"
CM3M2-B-L7 Plug/Male 3/8" 1/4" - 18 Male NPTF Brass 7.00"
(177.8mm)		 0.65"
(16.5mm)		 9/16"
CM3M2-B-L8.5 Plug/Male 3/8" 1/4" - 18 Male NPTF Brass 8.50"
(215.9mm)		 0.65"
(16.5mm)		 9/16"
CM3M2-B-L11.5 Plug/Male 3/8" 1/4" - 18 Male NPTF Brass 11.50"
(292.1mm)		 0.65"
(16.5mm)		 9/16"
