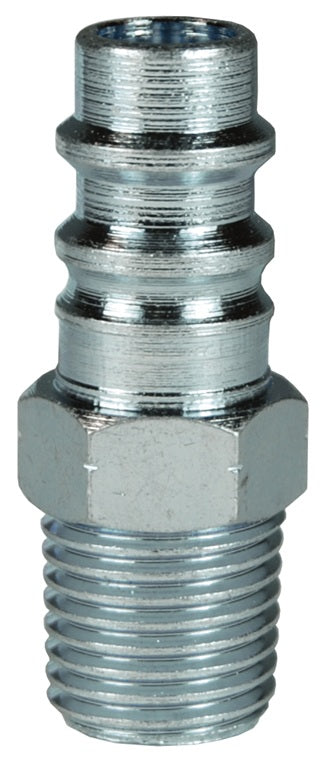

CJ3BM4 Dixon Valve Steel CJ-Series Quick Disconnect 3/8" European Interchange Pneumatic Nipple - 1/2"-14 Male BSPT
Dixon

CJ3BM4 Dixon Valve Steel CJ-Series Quick Disconnect 3/8" European Interchange Pneumatic Nipple - 1/2"-14 Male BSPT

Contact for Price

If you are interested in this item please fill out the Contact Form below.

Contact Us

How can we help you?

Price, availability, and details—available upon request.

Specifications:
  • Rated pressure for connected Brass Coupler & Steel Plug: 300 PSI (20 bar) Maximum Working and 8,000 PSI (552 bar) Burst
  • Temperature Range: -40 deg. F to +250 deg. F (-40 deg. C to +121 deg. C)
Construction:
  • Machined components are manufactured using solid bar stock.
  • Steel componentry is plated using ROHS Compliant Trivalent Chrome.
Compatibility & Interchange Data:
  • European High-Flow Interchange
  • 1/4" interchanges with Coilhose Megaflow.CEJN 320,and Rectus 25KA/26KA
  • 3/8" interchanges with Rectus 27KA and Series 410
Safety Notes:
  • It is important to be safe when installing quick disconnect couplings into a pneumatic circuit. Never install a pneumatic coupling directly into an air tool, use a piece of hose that is at least 18" long, between the tool and the coupling, to prevent damage to the coupling. To protect the operator, safety devices, such as a safety check valve and safety cable should be installed in case there is a hose or coupling failure.
  • WARNING: Brass products contain a chemical known to the State of California to cause birth defects or other reproductive harm. Do not use in connection with drinking water. Wash hands after handling.
Part Number Size Male Thread Material Length Max. OD Hex Weight (Lbs.)
CJ2M2-LG 1/4" 1/4" - 18 NPT steel 1.48" 0.65" 9/16" 0.0700
CJ2M2-B 1/4" 1/4" - 18 NPT brass 1.48" 0.65" 9/16" 0.0500
CJ2BM2-LG 1/4" 1/4" - 19 BSPT steel 1.48" 0.65" 9/16" 0.0700
CJ2BM2-B 1/4" 1/4" - 19 BSPT brass 1.48" 0.65" 9/16" 0.0500
CJ2M3-LG 1/4" 3/8" - 18 NPT steel 1.56" 0.79" 11/16" 0.0900
CJ2M3-B 1/4" 3/8" - 18 NPT brass 1.56" 0.79" 11/16" 0.0800
CJ2BM3-LG 1/4" 3/8" - 19 BSPT steel 1.56" 0.79" 11/16" 0.0900
CJ2BM3-B 1/4" 3/8" - 19 BSPT brass 1.56" 0.79" 11/16" 0.0800
CJ3M3 3/8" 3/8" - 18 NPT steel 1.57" 0.79" 11/16" 0.1300
CJ3M3-B 3/8" 3/8" - 18 NPT brass 1.57" 0.79" 11/16" 0.1300
CJ3BM3 3/8" 3/8" - 19 BSPT steel 1.57" 0.79" 11/16" 0.1300
CJ3BM3-B 3/8" 3/8" - 19 BSPT brass 1.57" 0.79" 11/16" 0.1300
CJ3M4 3/8" 1/2" - 14 NPT steel 1.81" 1.01" 7/8" 0.1800
CJ3M4-B 3/8" 1/2" - 14 NPT brass 1.81" 1.01" 7/8" 0.1800
CJ3BM4 3/8" 1/2" - 14 BSPT steel 1.81" 1.01" 7/8" 0.1800
CJ3BM4-B 3/8" 1/2" - 14 BSPT brass 1.81" 1.01" 7/8" 0.1800
