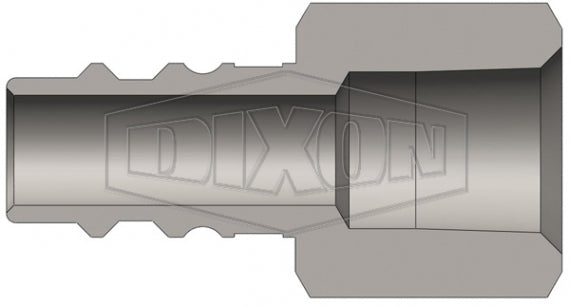

CJ2F2-LG by Dixon Valve | Pneumatic Quick Disconnect Coupling | CJ-Series | 1/4" Female NPT x 1/4" European Interchange | Plug | Steel
CJ2F2-LG by Dixon Valve | Pneumatic Quick Disconnect Coupling | CJ-Series | 1/4" Female NPT x 1/4" European Interchange | Plug | Steel

CJ2F2-LG by Dixon Valve | Pneumatic Quick Disconnect Coupling | CJ-Series | 1/4" Female NPT x 1/4" European Interchange | Plug | Steel

Minimum Order Quantity: 5 Units

Sale price$7.34

Dixon Valve & Coupling
Pneumatic Coupling: CJ-Series European Interchange Plug (Female Threads)
Buy More, Save More!
Quantity Price Each
20–39 $6.90
40–79 $6.24
80+ $5.51
Discounts applied in cart/checkout.

Product Data:

Series:
  • CJ Series
Shape:

Straight

Ends Configuration:
  • 1/4in Male High-Flow European QD Interchange
  • 1/4in Female NPTF
Compatibility & Interchange:
  • European High-Flow Interchange
  • Interchanges with CEJN 320, Coilhouse Megaflow, Rectus 25KA/26KA and other like designs
Construction:
  • Machined components are manufactured using solid steel bar stock.
  • Steel componentry is plated using ROHS Compliant Trivalent Chrome.
Safety Notes:
  • It is important to be safe when installing quick disconnect couplings into a pneumatic circuit. Never install a pneumatic coupling directly into an air tool, use a piece of hose that is at least 18" long, between the tool and the coupling, to prevent damage to the coupling. To protect the operator, safety devices, such as a safety check valve and safety cable should be installed in case there is a hose or coupling failure.
Additional Information:
CJ-Series | European Interchange Plug (Female Threads)
Part Number Coupling Type Body Size Threads Material Length Maximum OD Hex Working Pressure / Burst Pressure
when Connected to:
CJ2F2-LG Plug/Female 1/4" 1/4" - 18 Female NPT Steel 1.42"
(36.0mm)		 0.79"
(20.1mm)		 11/16"
  • Brass Coupler & Steel Plug: Max. Working: 300 PSI (20 bar) | Burst: 9,500 PSI (655 bar)
    CJ2F2-B Plug/Female 1/4" 1/4" - 18 Female NPT Brass 1.42"
    (36.0mm)    		 0.79"
    (20.1mm)    		 11/16"
    • Brass Coupler & Brass Plug: Max. Working: 300 PSI (20 bar) | Burst: 7,200 PSI (500 bar)
      CJ2BF2-LG Plug/Female 1/4" 1/4" - 19 Female BSPP Steel 1.42"
      (36.0mm)      		 0.79"
      (20.1mm)      		 11/16"
      • Brass Coupler & Steel Plug: Max. Working: 300 PSI (20 bar) | Burst: 9,500 PSI (655 bar)
        CJ2BF2-B Plug/Female 1/4" 1/4" - 19 Female BSPP Brass 1.42"
        (36.0mm)        		 0.79"
        (20.1mm)        		 11/16"
        • Brass Coupler & Brass Plug: Max. Working: 300 PSI (20 bar) | Burst: 7,200 PSI (500 bar)
          CJ2F3-LG Plug/Female 1/4" 3/8" - 18 Female NPT Steel 1.48"
          (37.5mm)          		 1.01"
          (25.7mm)          		 7/8"
          • Brass Coupler & Steel Plug: Max. Working: 300 PSI (20 bar) | Burst: 9,500 PSI (655 bar)
            CJ2F3-B Plug/Female 1/4" 3/8" - 18 Female NPT Brass 1.48"
            (37.5mm)            		 1.01"
            (25.7mm)            		 7/8"
            • Brass Coupler & Brass Plug: Max. Working: 300 PSI (20 bar) | Burst: 7,200 PSI (500 bar)
              CJ3F3 Plug/Female 3/8" 3/8" - 18 Female NPT Steel 1.50"
              (38.0mm)              		 1.01"
              (25.7mm)              		 7/8"
              • Brass Coupler & Steel Plug: Max. Working: 300 PSI (20 bar) | Burst: 8,000 PSI (552 bar)
                CJ3F3-B Plug/Female 3/8" 3/8" - 18 Female NPT Brass 1.50"
                (38.0mm)                		 1.01"
                (25.7mm)                		 7/8"
                • Brass Coupler & Brass Plug: Max. Working: 300 PSI (20 bar) | Burst: 4,400 PSI (300 bar)
                  CJ3F4-B Plug/Female 3/8" 1/2" - 14 Female NPT Brass 1.71"
                  (43.5mm)                  		 1.16"
                  (29.5mm)                  		 1"
                  • Brass Coupler & Brass Plug: Max. Working: 300 PSI (20 bar) | Burst: 4,400 PSI (300 bar)
