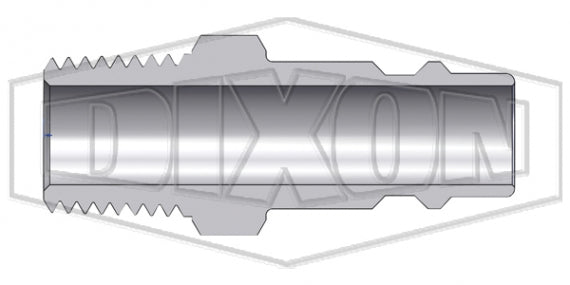

CJ2BM2-B by Dixon Valve | Pneumatic Quick Disconnect Coupling | CJ-Series | 1/4" Male BSPT x 1/4" European Interchange | Plug | Brass
CJ2BM2-B by Dixon Valve | Pneumatic Quick Disconnect Coupling | CJ-Series | 1/4" Male BSPT x 1/4" European Interchange | Plug | Brass

CJ2BM2-B by Dixon Valve | Pneumatic Quick Disconnect Coupling | CJ-Series | 1/4" Male BSPT x 1/4" European Interchange | Plug | Brass

Minimum Order Quantity: 5 Units

Sale price$4.41

Dixon Valve & Coupling
Pneumatic Coupling: CJ-Series European Interchange Plug (Male Threads)
Buy More, Save More!
Quantity Price Each
20–39 $4.15
40–79 $3.75
80+ $3.31
Discounts applied in cart/checkout.

Product Data:

Series:
  • CJ Series
Shape:

Straight

Ends Configuration:
  • 1/4in Male High-Flow European QD Interchange
  • 1/4in Male BSPT
Compatibility & Interchange:
  • European High-Flow Interchange
  • Interchanges with CEJN 320, Coilhouse Megaflow, Rectus 25KA/26KA and other like designs
Construction:
  • Machined components are manufactured using solid steel bar stock.
  • Steel componentry is plated using ROHS Compliant Trivalent Chrome.
Safety Notes:
  • It is important to be safe when installing quick disconnect couplings into a pneumatic circuit. Never install a pneumatic coupling directly into an air tool, use a piece of hose that is at least 18" long, between the tool and the coupling, to prevent damage to the coupling. To protect the operator, safety devices, such as a safety check valve and safety cable should be installed in case there is a hose or coupling failure.
Additional Information:
CJ-Series | European Interchange Plug (Male Threads)
Part Number Coupling Type Body Size Threads Material Length Maximum OD Hex Working Pressure / Burst Pressure
when Connected to:
CJ2M2-LG Plug/Male 1/4" 1/4" - 18 Male NPT Steel 1.48"
(37.5mm)		 0.65"
(16.5mm)		 9/16"
  • Brass Coupler & Steel Plug: Max. Working: 300 PSI (20 bar) | Burst: 9,500 PSI (655 bar)
    CJ2M2-B Plug/Male 1/4" 1/4" - 18 Male NPT Brass 1.48"
    (37.5mm)    		 0.65"
    (16.5mm)    		 9/16"
    • Brass Coupler & Brass Plug: Max. Working: 300 PSI (20 bar) | Burst: 7,200 PSI (500 bar)
      CJ2BM2-LG Plug/Male 1/4" 1/4" - 19 Male BSPT Steel 1.48"
      (37.5mm)      		 0.65"
      (16.5mm)      		 9/16"
      • Brass Coupler & Steel Plug: Max. Working: 300 PSI (20 bar) | Burst: 9,500 PSI (655 bar)
        CJ2BM2-B Plug/Male 1/4" 1/4" - 19 Male BSPT Brass 1.48"
        (37.5mm)        		 0.65"
        (16.5mm)        		 9/16"
        • Brass Coupler & Brass Plug: Max. Working: 300 PSI (20 bar) | Burst: 7,200 PSI (500 bar)
          CJ2M3-LG Plug/Male 1/4" 3/8" - 18 Male NPT Steel 1.56"
          (39.5mm)          		 0.79"
          (20.1mm)          		 11/16"
          • Brass Coupler & Steel Plug: Max. Working: 300 PSI (20 bar) | Burst: 9,500 PSI (655 bar)
            CJ2M3-B Plug/Male 1/4" 3/8" - 18 Male NPT Brass 1.56"
            (39.5mm)            		 0.79"
            (20.1mm)            		 11/16"
            • Brass Coupler & Brass Plug: Max. Working: 300 PSI (20 bar) | Burst: 7,200 PSI (500 bar)
              CJ2BM3-LG Plug/Male 1/4" 3/8" - 19 Male BSPT Steel 1.56"
              (39.5mm)              		 0.79"
              (20.1mm)              		 11/16"
              • Brass Coupler & Steel Plug: Max. Working: 300 PSI (20 bar) | Burst: 9,500 PSI (655 bar)
                CJ2BM3-B Plug/Male 1/4" 3/8" - 19 Male BSPT Brass 1.56"
                (39.5mm)                		 0.79"
                (20.1mm)                		 11/16"
                • Brass Coupler & Brass Plug: Max. Working: 300 PSI (20 bar) | Burst: 7,200 PSI (500 bar)
                  CJ3M3 Plug/Male 3/8" 3/8" - 18 Male NPT Steel 1.57"
                  (40.0mm)                  		 0.79"
                  (20.1mm)                  		 11/16"
                  • Brass Coupler & Steel Plug: Max. Working: 300 PSI (20 bar) | Burst: 8,000 PSI (552 bar)
                    CJ3M3-B Plug/Male 3/8" 3/8" - 18 Male NPT Brass 1.57"
                    (40.0mm)                    		 0.79"
                    (20.1mm)                    		 11/16"
                    • Brass Coupler & Brass Plug: Max. Working: 300 PSI (20 bar) | Burst: 4,400 PSI (300 bar)
                      CJ3M4 Plug/Male 3/8" 1/2" - 14 Male NPT Steel 1.81"
                      (46.0mm)                      		 1.01"
                      (25.7mm)                      		 7/8"
                      • Brass Coupler & Steel Plug: Max. Working: 300 PSI (20 bar) | Burst: 8,000 PSI (552 bar)
                        CJ3M4-B Plug/Male 3/8" 1/2" - 14 Male NPT Brass 1.81"
                        (46.0mm)                        		 1.01"
                        (25.7mm)                        		 7/8"
                        • Brass Coupler & Brass Plug: Max. Working: 300 PSI (20 bar) | Burst: 4,400 PSI (300 bar)
