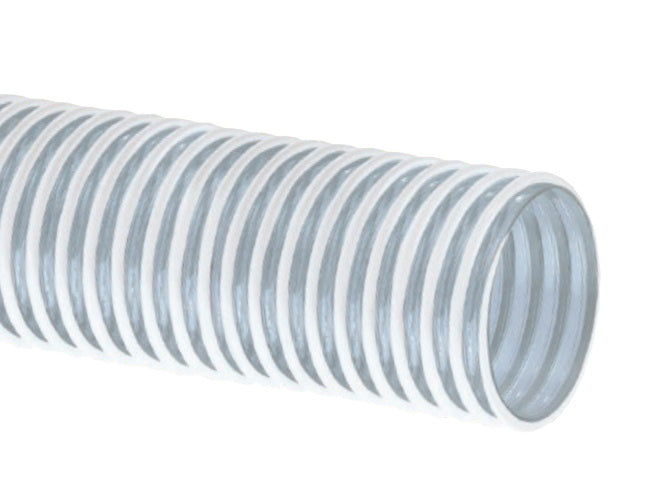

CG250X100 Tigerflex™ by Kuriyama | CG™ Series | Light Weight PVC Ducting Hose | 2-1/2" ID | 2.81" OD | 100ft Length
Tigerflex™ by Kuriyama
CG™ Series | Light Weight PVC Ducting Hose
Suitable for dust collection, ventilation, and fume removal, as well as use as washing machine drain hoses.
Made in the USA.
Package Quantity: 100 Foot
| Buy More, Save More! | |
| Quantity | Price Each |
| 5–14 | $535.68 |
| 15–29 | $484.39 |
| 30+ | $427.40 |
Discounts applied in cart/checkout.
Product Data:
Brand:
Series:
Color(s):
Internal Diameter:
Outer Diameter:
MAWP:
10
Tubing Construction:
Specifications and Approvals:
| General Applications: | |||
|---|---|---|---|
|
|||
| Construction: | |||
|
|||
| Specifications: | |||
|
|||
| Service Temperature Range: | |||
|
|||
| Features and Advantages: | |||
|
|||
| Notes: | |||
|
| Part Number 100ft Length |
ID | OD | Working Pressure (PSI) |
Vacuum Rating |
Min. Bend Radius at 68°F |
Weight | ||||
|---|---|---|---|---|---|---|---|---|---|---|
| in | mm | in | mm | at 68°F | at 104°F | at 68°F | at 104°F | in | (lbs/ft) | |
| CG200X100 | 2" | 50.8mm | 2.30" | 58.4mm | 12 PSI | 6 PSI | 10 in Hg | 5 in Hg | 2" | 0.28 lbs/ft |
| CG238X100 | 2-3/8" | 60.3mm | 2.76" | 70.1mm | 12 PSI | 6 PSI | 10 in Hg | 5 in Hg | 2" | 0.38 lbs/ft |
| CG250X100 | 2-1/2" | 63.5mm | 2.81" | 71.3mm | 10 PSI | 5 PSI | 8 in Hg | 4 in Hg | 2" | 0.39 lbs/ft |
| CG300X100 | 3" | 76.2mm | 3.35" | 85.0mm | 8 PSI | 4 PSI | 7 in Hg | 3 in Hg | 3" | 0.45 lbs/ft |
| CG350X100 | 3-1/2" | 88.9mm | 3.83" | 97.4mm | 8 PSI | 4 PSI | 7 in Hg | 3 in Hg | 3" | 0.51 lbs/ft |
| CG400X100 | 4" | 102.4mm | 4.39" | 111.4mm | 6 PSI | 3 PSI | 6 in Hg | 3 in Hg | 3" | 0.64 lbs/ft |
