CAT-32-32-JJ by Kurt Hydraulics | Ultra High Pressure Skive Style | CAT Flange | for 2" Hose ID

CAT-32-32-JJ by Kurt Hydraulics | Ultra High Pressure Skive Style | CAT Flange | for 2" Hose ID

Sale price$187.18

by Kurt Hydraulics
CAT-JJ - Cat Flange Straight Rigid - Ultra High Pressure Skive Style

Kurt Fittings and Hose should only be used together.
Buy More, Save More!
Quantity Price Each
5–19 $175.95
20–59 $159.10
60+ $140.39
Discounts applied in cart/checkout.

Product Data:

Series:
  • JJ Series
Shape:

Straight

Ends Configuration:
  • 2in Hose Barb
  • 2in Cat Flange

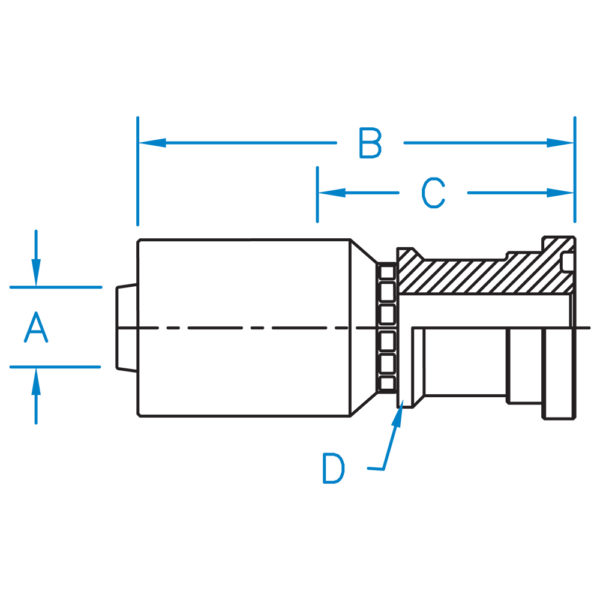

Part Number A B C D Hose ID
(In)		 Thread
CAT-20-20-JJ 1.250 5.360 3.030 2-1/8R 1-1/4" N/A
CAT-20-24-JJ 1.250 6.016 3.415 2-1/2R 1-1/4" N/A
CAT-24-24-JJ 1.500 6.103 3.393 2-1/2R 1-1/2" N/A
CAT-32-32-JJ N/A N/A N/A N/A N/A N/A

Kurt Hydraulics

Kurt Hydraulics has been a U.S. manufacturer of hydraulic couplings and
systems for over 35 years. We offer a full line of hydraulic couplings and a complete line of high quality hydraulic hose tested beyond SAE specifications. Kurt Hydraulics’ hose and couplings are sold through a comprehensive network of distributors in North America.
