C654202 OROFLEX® WELL by Kuriyama | Centering Segment for Well Riser Hose | 1 (Small Bowl Height) | Use with 2", 3" Diameter Couplings
C654202 OROFLEX® WELL by Kuriyama | Centering Segment for Well Riser Hose | 1 (Small Bowl Height) | Use with 2", 3" Diameter Couplings

C654202 OROFLEX® WELL by Kuriyama | Centering Segment for Well Riser Hose | 1 (Small Bowl Height) | Use with 2", 3" Diameter Couplings

Sale price$37.26

Kuriyama

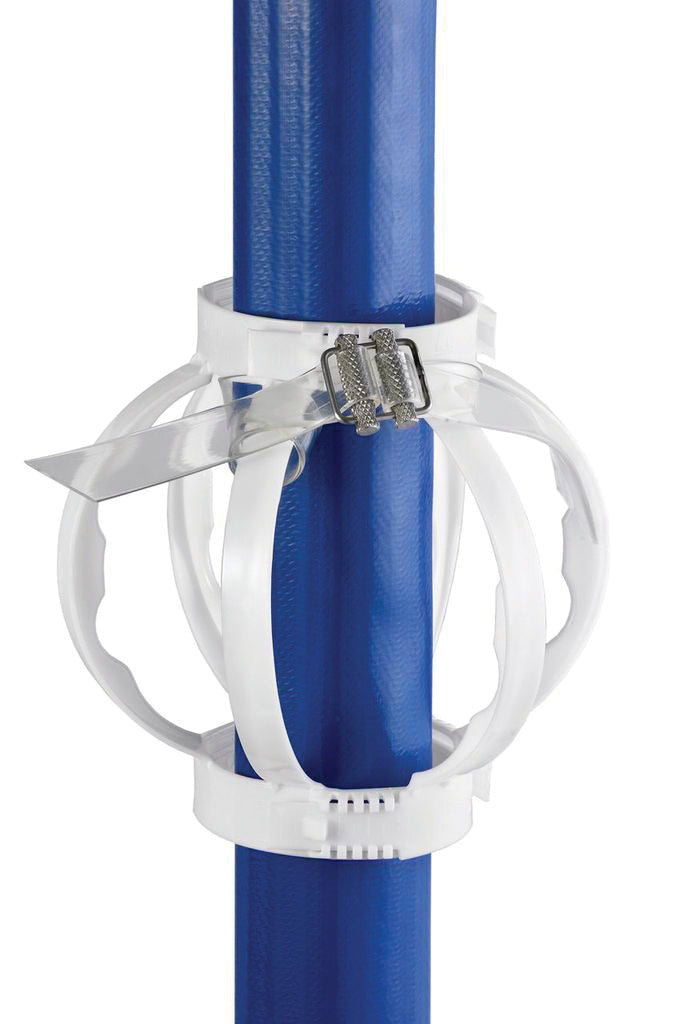

OROFLEX® WELL | Centering Segment for Well Riser Hose

Use with OFWL™ Series Flexible Well Riser Layflat Hose.
Buy More, Save More!
Quantity Price Each
10–39 $35.02
40–79 $31.67
80+ $27.95
Discounts applied in cart/checkout.

Product Data:

Brand:
  • OROFLEX WELL
Applications:
  • For use with OROFLEX® WELL OFWL™ Series Flexible Well Riser Hose.
Features:
  • Helps to protect hose and pump during raising/lowering.
  • Multiple segments snap together to create a single centering device (various quantities required depending on hose diameter).
  • Various sizes available to accommodate different sized wells.
Centering Segment
Part Number 		Type of
Segment		 Coupling
Diameter		 Quantity
Required
(in) (mm)
C654202 1 (small bowl height) 2" 52mm 3
C654202 1 (small bowl height) 3" 76mm 3
C654203 2 (medium bowl height) 4" 102mm 3
C654203 2 (medium bowl height) 5" 127mm 4
C654203 2 (medium bowl height) 6" 152mm 4
C654205 3 (large bowl height) 6" 152mm 3
C654205 3 (large bowl height) 8" 203mm 3
