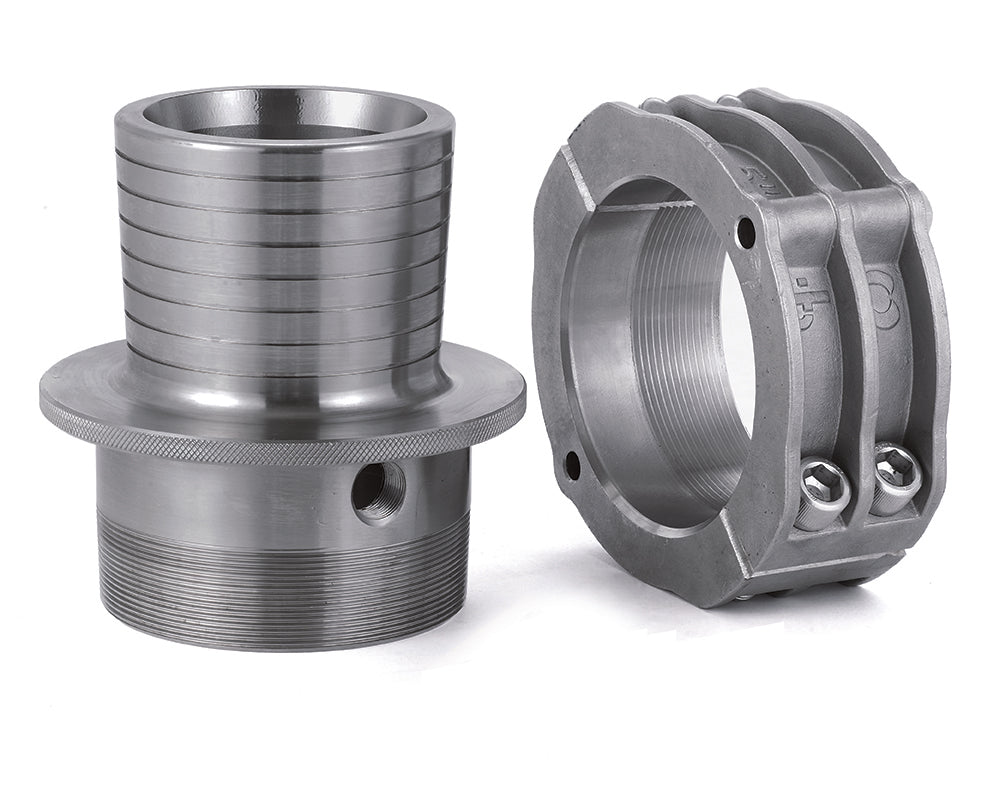

C650100 OROFLEX® WELL by Kuriyama | Conical Coupling | 3" Male NPT x Hose Barb | With Drain Hole | 316 Stainless Steel
Kuriyama
OROFLEX® WELL | Conical Coupling
For use with OROFLEX® WELL OFWL™ Series Flexible Well Riser Hose.
| Buy More, Save More! | |
| Quantity | Price Each |
| 5–14 | $762.98 |
| 15–29 | $689.93 |
| 30+ | $608.76 |
Discounts applied in cart/checkout.
Product Data:
Brand:
Shape:
Straight
Ends Configuration:
Material(s):
| Applications: | |||
|---|---|---|---|
|
|||
| Features: | |||
|
|||
| Construction: | |||
|
| Part Number | Drain Hole | Thread | ID | Max. Diameter | Weight | ||
|---|---|---|---|---|---|---|---|
| in | mm | in | mm | lbs. | |||
| C655120 | No | Male NPT | 1-1/4" | 32mm | 2.60" | 66mm | 1.83 lbs |
| C654899 | No | Male NPT | 1-1/2" | 40mm | 2.76" | 70mm | 2.25 lbs |
| C654898* | Yes | Male NPT | 1-1/2" | 40mm | 2.76" | 70mm | 2.25 lbs |
| C650089 | No | Male NPT | 2" | 51mm | 3.94" | 100mm | 5.29 lbs |
| C655005* | Yes | Male NPT | 2" | 51mm | 3.94" | 100mm | 5.29 lbs |
| C650069 | No | Male NPT | 3" | 76mm | 5.12" | 130mm | 13.67 lbs |
| C650100* | Yes | Male NPT | 3" | 76mm | 5.12" | 130mm | 13.67 lbs |
| C654827** | Yes | Male NPT | 4" | 102mm | 6.50" | 165mm | 21.38 lbs |
| C654826* | Yes | Male NPT | 4" | 102mm | 6.50" | 165mm | 21.38 lbs |
| C652353* | Yes | Male NPT | 5" | 127mm | 7.72" | 196mm | 29.98 lbs |
| C652362** | Yes | Male NPT | 6" | 152mm | 8.94" | 227mm | 44.31 lbs |
| C652349* | Yes | Male NPT | 6" | 152mm | 8.94" | 227mm | 44.31 lbs |
| C655144** | Yes | Male NPT | 8" | 203mm | 10.63" | 270mm | 105.82 lbs |
| C655143* | Yes | Male NPT | 8" | 203mm | 10.63" | 270mm | 105.82 lbs |
* Supplied with Fuse
** Supplied with Plug
| Replacement Parts | |||||||||
|---|---|---|---|---|---|---|---|---|---|
 |
 |
 |
|||||||
| Fuse Part Number |
Plug Part Number |
Torpedo (Plumb) Part Number |
Coupling Diameter |
||||||
| (in) | (mm) | ||||||||
| - | - | C654340 | 1-1/4" | 32mm | |||||
| C650000 | - | C654340 | 1-1/2" | 40mm | |||||
| C650002 | - | C654350 | 2" | 52mm | |||||
| C650003 | - | C654360 | 3" | 76mm | |||||
| C651497SS | C651498SS | C654370 | 4" | 102mm | |||||
| C651507SS | C653051SS | C654380 | 5" | 127mm | |||||
| C651507SS | C653051SS | C654380 | 6" | 152mm | |||||
| C652325SS | C653051SS | C654380 | 8" | 203mm | |||||
