C6245-20-20-JJ by Kurt Hydraulics | Ultra High Pressure Skive Style | Code 62 Flange | 45° Elbow | for 1-1/4" Hose ID

C6245-20-20-JJ by Kurt Hydraulics | Ultra High Pressure Skive Style | Code 62 Flange | 45° Elbow | for 1-1/4" Hose ID

Sale price$96.75

by Kurt Hydraulics
C6245-JJ - Code 62 Flange 45 deg. Bent Tube Rigid - Ultra High Pressure Skive Style

Kurt Fittings and Hose should only be used together.
Buy More, Save More!
Quantity Price Each
5–19 $90.95
20–59 $82.24
60+ $72.56
Discounts applied in cart/checkout.

Product Data:

Series:
  • JJ Series
Shape:

45 Degree

Ends Configuration:
  • 1-1/4in Hose Barb
  • 1-1/4in Code 62 Flange

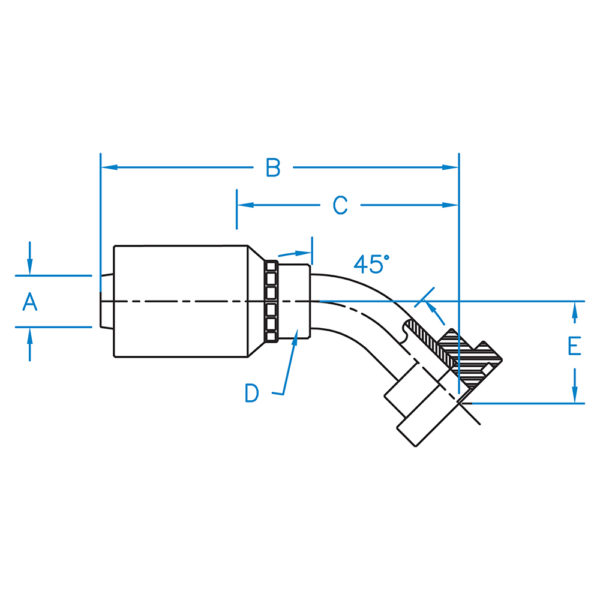

Part Number A B C D E Hose ID
(In)		 Thread
C6245-20-20-JJ 1.250 6.260 3.660 1-3/4R 1.496 1-1/4" N/A
C6245-24-24-JJ 1.500 7.160 4.450 2-1/8R 1.732 1-1/2" N/A
C6245-24-32-JJ 1.500 7.860 1.320 2-1/8R 2.150 1-1/2" N/A
C6245-32-32-JJ 2.000 9.801 6.031 2-3/4R 2.737 2.000" N/A

Kurt Hydraulics

Kurt Hydraulics has been a U.S. manufacturer of hydraulic couplings and
systems for over 35 years. We offer a full line of hydraulic couplings and a complete line of high quality hydraulic hose tested beyond SAE specifications. Kurt Hydraulics’ hose and couplings are sold through a comprehensive network of distributors in North America.
