C6145-20-20-JJ by Kurt Hydraulics | Ultra High Pressure Skive Style | Code 61 Flange | 45° Elbow | for 1-1/4" Hose ID

C6145-20-20-JJ by Kurt Hydraulics | Ultra High Pressure Skive Style | Code 61 Flange | 45° Elbow | for 1-1/4" Hose ID

Sale price$82.78

by Kurt Hydraulics
C6145-JJ - Code 61 Flange 45 deg. Bent Tube Rigid - Ultra High Pressure Skive Style

Kurt Fittings and Hose should only be used together.
Buy More, Save More!
Quantity Price Each
5–19 $77.81
20–59 $70.36
60+ $62.09
Discounts applied in cart/checkout.

Product Data:

Series:
  • JJ Series
Shape:

45 Degree

Ends Configuration:
  • 1-1/4in Hose Barb
  • 1-1/4in Code 61 Flange

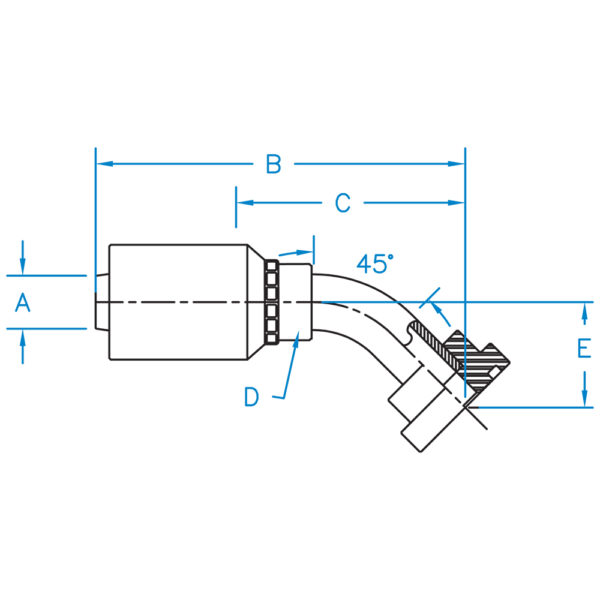

Part Number A B C D E Hose ID
(In)		 Thread
C6145-20-20-JJ 1.250 6.260 3.660 1-3/4R 1.496 1-1/4" N/A
C6145-24-24-JJ 1.500 3.720 4.190 2-1/8R 1.580 1-1/2" N/A
C6145-24-32-JJ 1.500 6.83 2.9 2-1/8R 1.670 1-1/2" N/A
C6145-32-32-JJ 2.000 9.290 5.700 2-3/4R 2.210 2.000" N/A

Kurt Hydraulics

Kurt Hydraulics has been a U.S. manufacturer of hydraulic couplings and
systems for over 35 years. We offer a full line of hydraulic couplings and a complete line of high quality hydraulic hose tested beyond SAE specifications. Kurt Hydraulics’ hose and couplings are sold through a comprehensive network of distributors in North America.
