C6145-08-12-W by Kurt Hydraulics | Jump Size | Code 61 Flange | 45° Elbow | for 1/2" Hose ID

C6145-08-12-W by Kurt Hydraulics | Jump Size | Code 61 Flange | 45° Elbow | for 1/2" Hose ID

Sale price$39.58

by Kurt Hydraulics
C6145-W - Code 61 Flange 45 deg. Bent Tube Rigid

Kurt Fittings and Hose should only be used together.
Buy More, Save More!
Quantity Price Each
10–39 $37.21
40–79 $33.64
80+ $29.69
Discounts applied in cart/checkout.

Product Data:

Series:
  • W Series
Shape:

45 Degree

Ends Configuration:
  • 1/2in Hose Barb
  • 3/4in Code 61 Flange

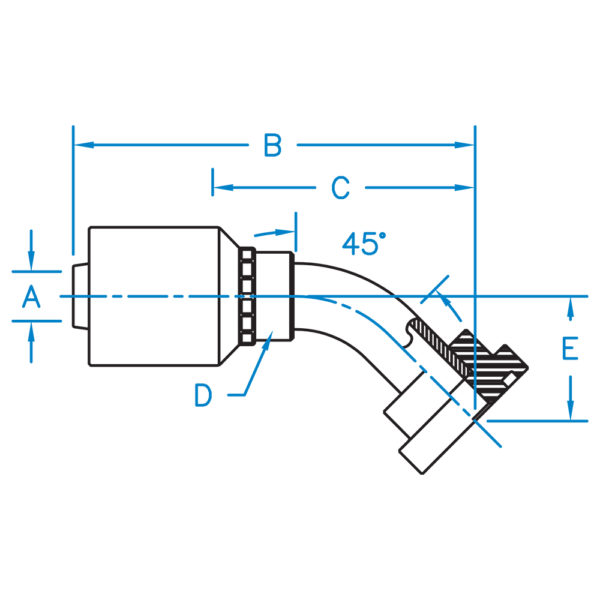

Part Number A B C D E Hose ID
(In)		 Thread
C6145-08-08-W 0.500 N/A N/A 7/8 N/A 1/2" N/A
C6145-08-12-W 0.500 4.050 2.810 1.0R 0.839 1/2" N/A
C6145-12-12-W 0.750 4.620 2.746 1.0R 0.839 3/4" N/A
C6145-12-16-W 0.750 4.620 2.748 1.0R 0.838 3/4" N/A
C6145-16-16-W 1.000 4.700 2.710 1-5/16R 1.130 1.000" N/A
C6145-16-20-W 1.000 4.830 2.743 1-5/16R 0.943 1.000" N/A
C6145-20-20-W 1.250 5.398 3.650 1-5/8R 1.260 1-1/4" N/A
C6145-20-24-W 1.250 6.030 3.692 1-5/8R 1.302 1-1/4" N/A
C6145-24-24-W 1.500 6.980 4.380 2.0R 1.350 1-1/2" N/A
C6145-24-32-W 1.500 0.698 4.380 2.0R 1.350 1-1/2" N/A
C6145-32-32-W 2.000 8.570 5.320 2-1/2R 2.110 2.000" N/A
C6145-32-40-W 2.000 9.05 5.75 2-1/2R 2.771 2.000" N/A

Kurt Hydraulics

Kurt Hydraulics has been a U.S. manufacturer of hydraulic couplings and
systems for over 35 years. We offer a full line of hydraulic couplings and a complete line of high quality hydraulic hose tested beyond SAE specifications. Kurt Hydraulics’ hose and couplings are sold through a comprehensive network of distributors in North America.
