C6130-32-32-JJ by Kurt Hydraulics | Ultra High Pressure Skive Style | Code 61 Flange | 30° Elbow | for 2" Hose ID

C6130-32-32-JJ by Kurt Hydraulics | Ultra High Pressure Skive Style | Code 61 Flange | 30° Elbow | for 2" Hose ID

Sale price$193.51

by Kurt Hydraulics
C6130-JJ - Code 61 Flange 30 deg. Bent Tube Rigid - Ultra High Pressure Skive Style

Kurt Fittings and Hose should only be used together.
Buy More, Save More!
Quantity Price Each
5–19 $181.90
20–59 $164.48
60+ $145.13
Discounts applied in cart/checkout.

Product Data:

Series:
  • JJ Series
Shape:

30 Degree

Ends Configuration:
  • 2in Hose Barb
  • 2in Code 61 Flange

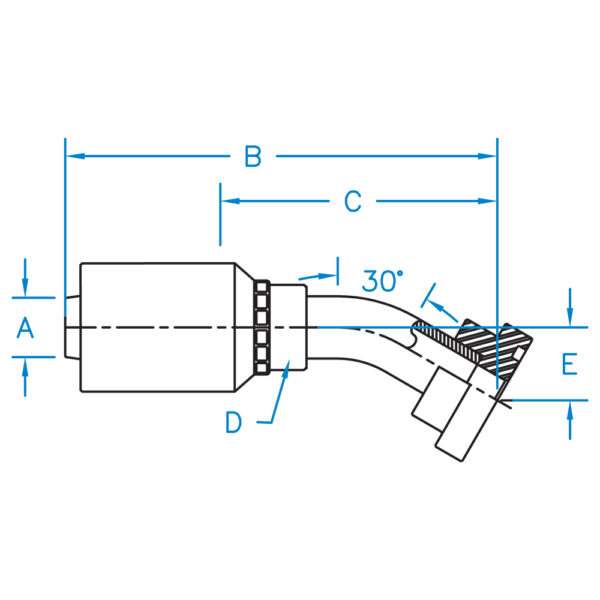

Part Number A B C D E Hose ID
(In)		 Thread
C6130-20-20-JJ 1.250 6.127 3.527 1-3/4R 0.717 1-1/4" N/A
C6130-24-24-JJ 1.500 6.590 4.060 2-1/8R 0.980 1-1/2" N/A
C6130-24-32-JJ 1.500 6.700 4.170 2-1/8R 1.050 1-1/2" N/A
C6130-32-32-JJ 2.000 8.920 5.340 2-3/4R 1.330 2.000" N/A

Kurt Hydraulics

Kurt Hydraulics has been a U.S. manufacturer of hydraulic couplings and
systems for over 35 years. We offer a full line of hydraulic couplings and a complete line of high quality hydraulic hose tested beyond SAE specifications. Kurt Hydraulics’ hose and couplings are sold through a comprehensive network of distributors in North America.
