C61-24-32-JJ by Kurt Hydraulics | Jump Size | Ultra High Pressure Skive Style | Code 61 Flange | for 1-1/2" Hose ID

C61-24-32-JJ by Kurt Hydraulics | Jump Size | Ultra High Pressure Skive Style | Code 61 Flange | for 1-1/2" Hose ID

Sale price$77.27

by Kurt Hydraulics
C61-JJ - Code 61 Flange Rigid - Ultra High Pressure Skive Style

Kurt Fittings and Hose should only be used together.
Buy More, Save More!
Quantity Price Each
5–19 $72.63
20–59 $65.68
60+ $57.95
Discounts applied in cart/checkout.

Product Data:

Series:
  • JJ Series
Shape:

Straight

Ends Configuration:
  • 1-1/2in Hose Barb
  • 2in Code 61 Flange

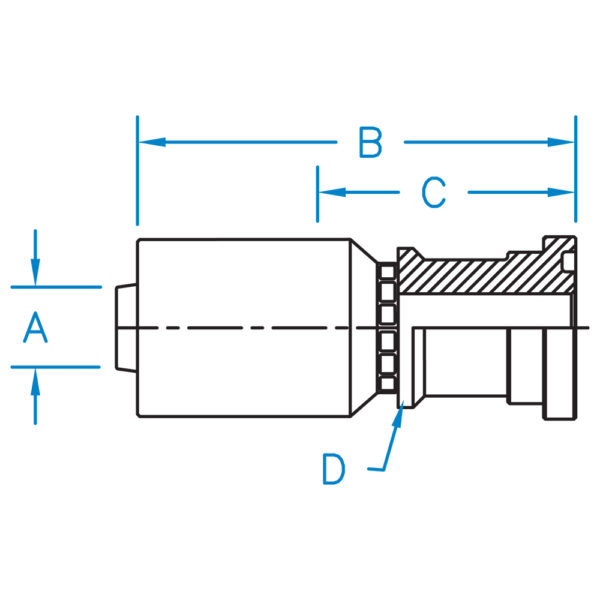

Part Number A B C D Hose ID
(In)		 Thread
C61-20-20-JJ 1.250 4.664 2.064 1-3/4R 1-1/4" N/A
C61-24-24-JJ 1.500 4.820 2.110 2-1/8R 1-1/2" N/A
C61-24-32-JJ 1.500 5.444 2.734 2-1/8R 1-1/2" N/A
C61-32-32-JJ 2.000 6.631 2.861 2-3/4R 2.000" N/A

Kurt Hydraulics

Kurt Hydraulics has been a U.S. manufacturer of hydraulic couplings and
systems for over 35 years. We offer a full line of hydraulic couplings and a complete line of high quality hydraulic hose tested beyond SAE specifications. Kurt Hydraulics’ hose and couplings are sold through a comprehensive network of distributors in North America.
