C61-16-16-WHP by Kurt Hydraulics | Ultra High Pressure Non Skive | Code 61 Flange | for 1" Hose ID

C61-16-16-WHP by Kurt Hydraulics | Ultra High Pressure Non Skive | Code 61 Flange | for 1" Hose ID

Sale price$56.68

by Kurt Hydraulics
C61-WHP - Code 61 Flange Rigid - Ultra High Pressure Non Skive

Kurt Fittings and Hose should only be used together.
Buy More, Save More!
Quantity Price Each
10–39 $53.28
40–79 $48.18
80+ $42.51
Discounts applied in cart/checkout.

Product Data:

Series:
  • WHP Series
Shape:

Straight

Ends Configuration:
  • 1in Hose Barb
  • 1in Code 61 Flange

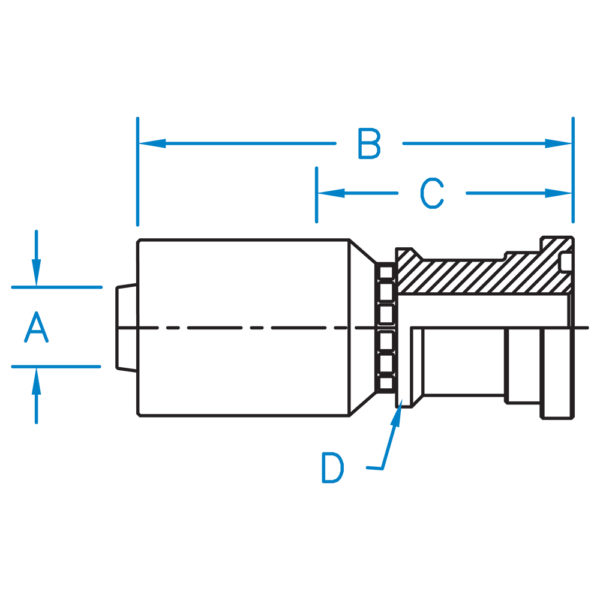

Part Number A B C D Hose ID
(In)		 Thread
C61-12-12-WHP 0.750 4.150 1.720 1-1/2R 3/4" N/A
C61-16-16-WHP 1.000 4.529 1.999 1-3/4R 1.000" N/A

Kurt Hydraulics

Kurt Hydraulics has been a U.S. manufacturer of hydraulic couplings and
systems for over 35 years. We offer a full line of hydraulic couplings and a complete line of high quality hydraulic hose tested beyond SAE specifications. Kurt Hydraulics’ hose and couplings are sold through a comprehensive network of distributors in North America.
