C61-08-12 by Kurt Hydraulics | Jump Size | Code 61 Flange for 1/2" Hose ID

C61-08-12 by Kurt Hydraulics | Jump Size | Code 61 Flange for 1/2" Hose ID

Sale price$30.22

by Kurt Hydraulics
C61 - Code 61 Flange Straight Rigid

Kurt Fittings and Hose should only be used together.
Buy More, Save More!
Quantity Price Each
10–39 $28.41
40–79 $25.69
80+ $22.67
Discounts applied in cart/checkout.

Product Data:

Series:
  • Braided Coupling Series
Shape:

Straight

Ends Configuration:
  • 1/2in Hose Barb
  • 3/4in Code 61 Flange

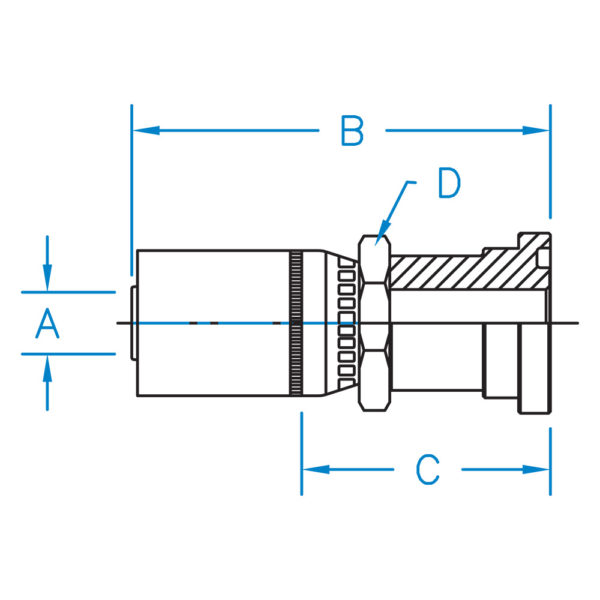

Part Number A B C D Hose ID
(In)		 Thread
C61-08-08 0.500 3.514 1.826 7/8 1/2" N/A
C61-08-12 0.500 3.000 1.310 1-1/2 1/2" N/A
C61-12-12 0.500 3.740 2.147 1-1/8 3/4" N/A
C61-12-16 0.750 3.965 2.085 1-3/8 3/4" N/A
C61-16-16 1.000 4.425 1.286 1-3/8 1.000" N/A
C61-16-20 1.000 5.126 2.846 1-3/8 1.000" N/A
C61-20-20 1.250 N/A N/A N/A 1-1/4" N/A
C61-20-24 1.500 N/A N/A N/A 1-1/2" N/A

Kurt Hydraulics

Kurt Hydraulics has been a U.S. manufacturer of hydraulic couplings and
systems for over 35 years. We offer a full line of hydraulic couplings and a complete line of high quality hydraulic hose tested beyond SAE specifications. Kurt Hydraulics’ hose and couplings are sold through a comprehensive network of distributors in North America.
