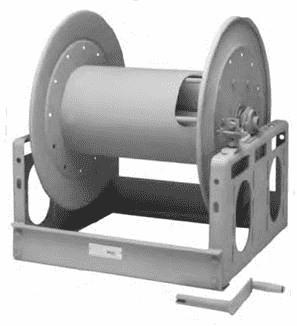

C3218-25-26 by Hannay | #10-42 | C3200 Series | Manual Rewind Storage Reel

C3218-25-26 by Hannay | #10-42 | C3200 Series | Manual Rewind Storage Reel

Sale price$886.35



C3200 Manual Rewind Reels To handle single 1/2" through 1-1/2" O.D.
Buy More, Save More!
Quantity Price Each
5–14 $833.17
15–29 $753.40
30+ $664.76
Discounts applied in cart/checkout.

Product Data:

Series:
  • 3200 Series
Applications:
  • Hose
  • Cable
  • Rope
  • Wire
Features:
  • A 4-1/2" x 9" (114mm x 229mm) opening in the drum to initiate winding.
  • Designed for storage of long lengths of hose, cable, rope, wire or other materials.
  • Supplied with spring-actuated pin lock.
Model Number Hose Capacity of Reel (Ft.) Approx. Weight (Lbs.)

Reel Dimensions (In.)
O.D. (in) 1/2" 3/4" 1" 1-1/4" 1-1/2" A B E F G H X
C3218-25-26 1000' length 450' length 225' length 125' length 90' length 85 lbs. 15" 9.5" 24.75" 22" 27.88" 15.5" 7"
C3228-25-26 N/A 1000' length 500' length 325' length 200' length 109 lbs. 25.5" 20" 24.75" 32.5" 27.88" 15.5" 17.5"
C3234-25-26 N/A 1300' length 650' length 400' length 275' length 122 lbs. 31.5" 26" 24.75" 38.5" 27.88" 15.5" 23.5"

Hannay Reels

Hannay Reels is the leading manufacturer of durable hose and cable reels for both OEM and aftermarket applications, offering thousands of standard models along with a wide range of custom design capabilities. Hannay’s superior manufacturing techniques, consistent quality, outstanding service and unmatched value result in the most dependable, best-engineered reels in the business.
