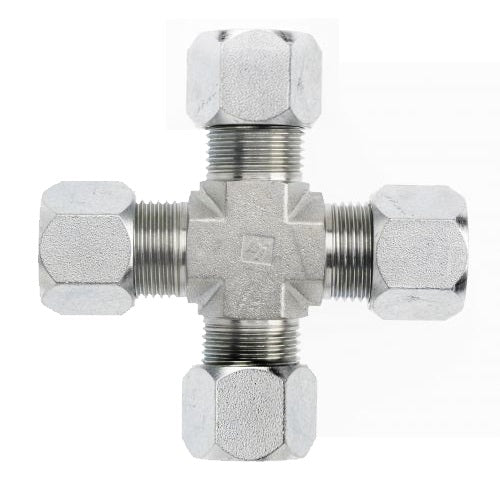

C2650-04-04-04-04-FG by Brennan Inc. | -04 Bite Type | Cross | Forged Steel

C2650-04-04-04-04-FG by Brennan Inc. | -04 Bite Type | Cross | Forged Steel

Sale price$31.78

Brennan Inc.
Flareless Bite Type:Bite Type Cross - C2650-FG Series
Buy More, Save More!
Quantity Price Each
10–39 $29.87
40–79 $27.01
80+ $23.84
Discounts applied in cart/checkout.

Product Data:

Shape:

Cross

Ends Configuration:
  • 1/4in Tube Compression
  • 1/4in Tube Compression
  • 1/4in Tube Compression
  • 1/4in Tube Compression
  • Some Ends Match
Material(s):
  • Steel
Part Number Material Tube O.D. B1Thread B2Thread B3Thread B4Thread B1Drill MLength KDepth YFlats
C2650-04-04-04-04-FG Forged Steel 1/4" 7/16-20" 7/16-20" 7/16-20" 7/16-20" 0.203" 0.890" 0.234" 0.438"
C2650-06-06-06-06-FG Forged Steel 3/8" 9/16-18" 9/16-18" 9/16-18" 9/16-18" 0.281" 1.050" 0.250" 0.562"
C2650-08-08-08-08-FG Forged Steel 1/2" 3/4-16" 3/4-16" 3/4-16" 3/4-16" 0.422" 1.250" 0.305" 0.750"
C2650-10-10-10-10-FG Forged Steel 5/8" 7/8-14" 7/8-14" 7/8-14" 7/8-14" 0.500" 1.420" 0.350" 0.875"

Brennan

Brennan Industries, founded in 1953, distinguishes itself with a commitment to quality in hydraulic and pneumatic fittings. With over 120,000 styles and sizes, Brennan serves a global market through extensive distribution networks. As a privately held company, Brennan's principals actively oversee operations, ensuring top-tier customer service and responsiveness. Their products meet or exceed J.I.C./S.A.E. and international standards, supported by ISO 9001:2015, AS9100D, and NADCAP certifications. Brennan's offerings include standard and custom solutions, backed by robust engineering support. With 13 distribution centers worldwide, Brennan delivers exceptional quality, service, and competitive pricing for all hydraulic and pneumatic fitting needs.
