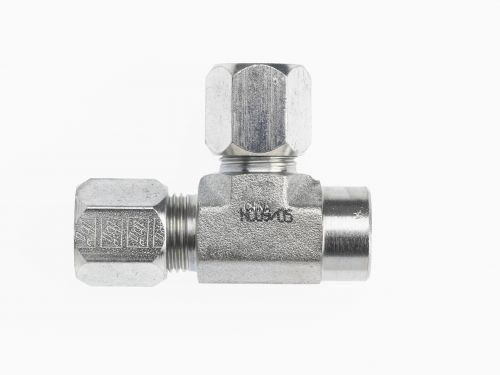

C2606-08-06-08-SS by Brennan Inc. | -08 Bite Type x -06 Female Pipe x -08 Bite Type | Tee | Stainless Steel
Brennan Inc.
Flareless Bite Type: C2605 - Bite Type x Female Pipe x Bite Type Tee
| Buy More, Save More! | |
| Quantity | Price Each |
| 5–19 | $160.03 |
| 20–59 | $144.70 |
| 60+ | $127.68 |
Discounts applied in cart/checkout.
Product Data:
Shape:
Tee
Ends Configuration:
Material(s):
 |
|||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Part Number | Material | Tube O.D. | B1 Thread | A2 NPTF | B3 Thread | B1 Drill | B3 Drill | M1 Length | N Length | M2 Length | K1 Depth | K2 Depth | Y Flats |
| C2606-04-04-04-FG | Forged Steel | 1/4" | 7/16-20" | 1/4-18" | 7/16-20" | 0.203" | 0.203" | 1.030" | 0.800" | 1.030" | 0.234" | 0.234" | 0.750" |
| C2606-06-04-06-FG | Forged Steel | 3/8" | 9/16-18" | 1/4-18" | 9/16-18" | 0.281" | 0.281" | 1.050" | 0.880" | 1.050" | 0.250" | 0.250" | 0.750" |
| C2606-08-06-08-FG | Forged Steel | 1/2" | 3/4-16" | 3/8-18" | 3/4-16" | 0.422" | 0.422" | 1.230" | 1.020" | 1.230" | 0.305" | 0.305" | 0.875" |
| C2606-10-08-10-FG | Forged Steel | 5/8" | 7/8-14" | 1/2-14" | 7/8-14" | 0.500" | 0.500" | 1.420" | 1.230" | 1.420" | 0.350" | 0.350" | 1.062" |
| C2606-12-12-12-FG | Forged Steel | 3/4" | 1-1/16-12" | 3/4-14" | 1-1/16-12" | 0.656" | 0.656" | 1.580" | 1.360" | 1.580" | 0.350" | 0.350" | 1.312" |
| C2606-06-04-06-SS | Stainless Steel | 3/8" | 9/16-18" | 1/4-18" | 9/16-18" | 0.281" | 0.281" | 1.050" | 0.880" | 1.050" | 0.250" | 0.250" | 0.750" |
| C2606-08-06-08-SS | Stainless Steel | 1/2" | 3/4-16" | 3/8-18" | 3/4-16" | 0.422" | 0.422" | 1.230" | 1.020" | 1.230" | 0.305" | 0.305" | 0.875" |
