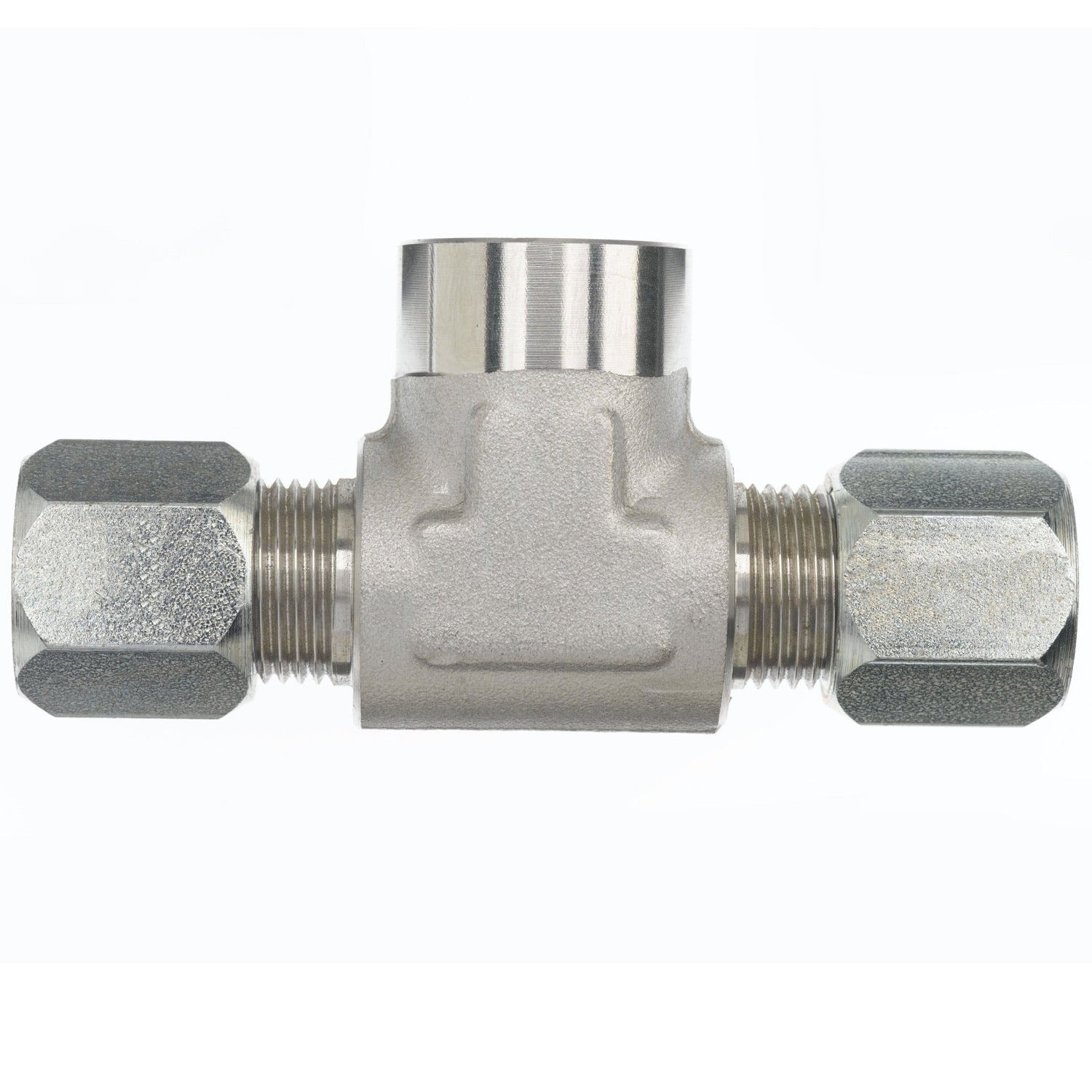

C2602-04-04-04-FG by Brennan Inc. | -04 Bite Type x -04 Bite Type x -04 Female Pipe | Tee | Forged Steel
Brennan Inc.
Flareless Bite Type: C2602 Bite Type x Bite Type x Female Pipe Tee
| Buy More, Save More! | |
| Quantity | Price Each |
| 10–39 | $27.37 |
| 40–79 | $24.75 |
| 80+ | $21.84 |
Discounts applied in cart/checkout.
Product Data:
Shape:
Tee
Ends Configuration:
Material(s):
 |
||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Part Number | Material | Tube O.D. | B1 Thread | B2 Thread | A3 NPTF | B1 Drill | B2 Drill | M1 Length | M2 Length | N Length | K1 Depth | K2 Depth | Y Flats | |
| C2602-04-04-02-FG | Forged Steel | 1/4" | 7/16-20" | 7/16-20" | 1/8-27" | 0.203" | 0.203" | 0.890" | 0.890" | 0.660" | 0.234" | 0.234" | 0.562" | |
| C2602-04-04-04-FG | Forged Steel | 1/4" | 7/16-20" | 7/16-20" | 1/4-18" | 0.203" | 0.203" | 1.030" | 1.030" | 0.880" | 0.234" | 0.234" | 0.750" | |
| C2602-06-06-04-FG | Forged Steel | 3/8" | 9/16-18" | 9/16-18" | 1/4-18" | 0.281" | 0.281" | 1.050" | 1.050" | 0.880" | 0.250" | 0.250" | 0.750" | |
| C2602-06-06-06-FG | Forged Steel | 3/8" | 9/16-18" | 9/16-18" | 3/8-18" | 0.281" | 0.281" | 1.120" | 1.120" | 1.020" | 0.250" | 0.250" | 0.875" | |
| C2602-08-08-06-FG | Forged Steel | 1/2" | 3/4-16" | 3/4-16" | 3/8-18" | 0.422" | 0.422" | 1.230" | 1.230" | 1.020" | 0.305" | 0.305" | 0.875" | |
| C2602-08-08-08-FG | Forged Steel | 1/2" | 3/4-16" | 3/4-16" | 1/2-14" | 0.422" | 0.422" | 1.350" | 1.350" | 1.230" | 0.305" | 0.305" | 1.062" | |
| C2602-10-10-08-FG | Forged Steel | 5/8" | 7/8-14" | 7/8-14" | 1/2-14" | 0.500" | 0.500" | 1.420" | 1.420" | 1.230" | 0.350" | 0.350" | 1.062" | |
| C2602-12-12-12-FG | Forged Steel | 3/4" | 1-1/16-12" | 1-1/16-12" | 3/4-14" | 0.656" | 0.656" | 1.580" | 1.580" | 1.360" | 0.350" | 0.350" | 1.312" | |
| C2602-16-16-16-FG | Forged Steel | 1" | 1-5/16-12" | 1-5/16-12" | 1-11-1/2" | 0.875" | 0.875" | 1.730" | 1.730" | 1.620" | 0.415" | 0.415" | 1.625" | |
| C2602-20-20-20-FG | Forged Steel | 1-1/4" | 1-5/8-12" | 1-5/8-12" | 1-1/4-11-1/2" | 1.093" | 1.093" | 2.080" | 2.080" | 1.700" | 0.415" | 0.415" | 1.875" | |
| C2602-04-04-02-SS | Stainless Steel | 1/4" | 7/16-20" | 7/16-20" | 1/8-27" | 0.203" | 0.203" | 0.890" | 0.890" | 0.660" | 0.234" | 0.234" | 0.562" | |
| C2602-04-04-04-SS | Stainless Steel | 1/4" | 7/16-20" | 7/16-20" | 1/4-18" | 0.203" | 0.203" | 1.030" | 1.030" | 0.880" | 0.234" | 0.234" | 0.750" | |
| C2602-08-08-06-SS | Stainless Steel | 1/2" | 3/4-16" | 3/4-16" | 3/8-18" | 0.422" | 0.422" | 1.230" | 1.230" | 1.020" | 0.305" | 0.305" | 0.875" | |
| C2602-08-08-08-SS | Stainless Steel | 1/2" | 3/4-16" | 3/4-16" | 1/2-14" | 0.422" | 0.422" | 1.350" | 1.350" | 1.230" | 0.305" | 0.305" | 1.062" | |
| C2602-10-10-08-SS | Stainless Steel | 5/8" | 7/8-14" | 7/8-14" | 1/2-14" | 0.500" | 0.500" | 1.420" | 1.420" | 1.230" | 0.350" | 0.350" | 1.062" | |
| C2602-12-12-12-SS | Stainless Steel | 3/4" | 1-1/16-12" | 1-1/16-12" | 3/4-14" | 0.656" | 0.656" | 1.580" | 1.580" | 1.360" | 0.350" | 0.350" | 1.312" | |
| C2602-20-20-20-SS | Stainless Steel | 1-1/4" | 1-5/8-12" | 1-5/8-12" | 1-1/4-11-1/2" | 1.093" | 1.093" | 2.080" | 2.080" | 1.700" | 0.415" | 0.415" | 1.875" | |
