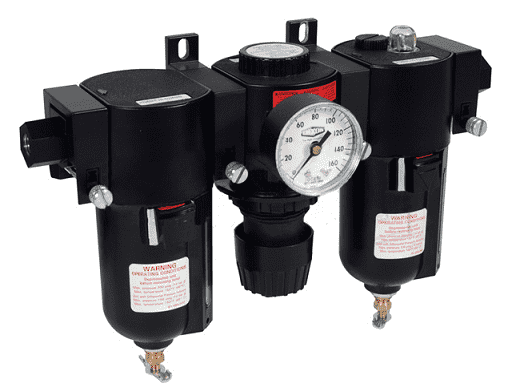

C26-02MMB Dixon Valve Wilkerson 1/4" Standard Combination Unit with Metal Bowl - Manual Drain - 35 SCFM
Dixon

C26-02MMB Dixon Valve Wilkerson 1/4" Standard Combination Unit with Metal Bowl - Manual Drain - 35 SCFM

Contact for Price

If you are interested in this item please fill out the Contact Form below.

Contact Us

How can we help you?

Price, availability, and details—available upon request.

Features:
  • Filter series F26:
    • 5 micron element.
    • 10 oz. bowl.
  • Regulator series R26:
    • 0-125 PSI adjusting range.
    • Self-relieving.
    • Supplied with a GC230 gauge.
  • Lubricator series L26:
    • 10 oz. bowl.
    • Adjustable oil feed.
    • Full view sight dome.
  • Included components:
    • (2) Modular sleeves
    • (2) Mounting brackets. (sleeve and bracket)
    • (2) End blocks.
Part Number Size SCFM Drain Type PSI Min/Max Temp Weight (Lbs.)
With Transparent Bowl and Guard
C26-02A 1/4" 35 Automatic Drain 150 (10.20 bar) 32 deg. F/ 125 deg. F (0.00 deg. C / 51.67 deg. C) 8.6735
C26-03A 3/8" 60 Automatic Drain 150 (10.20 bar) 32 deg. F/ 125 deg. F (0.00 deg. C / 51.67 deg. C) 8.6780
C26-04A 1/2" 128 Automatic Drain 150 (10.20 bar) 32 deg. F/ 125 deg. F (0.00 deg. C / 51.67 deg. C) 8.4300
C26-02M 1/4" 35 Manual Drain 150 (10.20 bar) 32 deg. F/ 125 deg. F (0.00 deg. C / 51.67 deg. C) 8.6735
C26-03M 3/8" 60 Manual Drain 150 (10.20 bar) 32 deg. F/ 125 deg. F (0.00 deg. C / 51.67 deg. C) 8.6280
C26-04M 1/2" 128 Manual Drain 150 (10.20 bar) 32 deg. F/ 125 deg. F (0.00 deg. C / 51.67 deg. C) 8.3800
With Metal Bowl
C26-02AMB 1/4" 35 Automatic Drain 200 (13.61 bar) 32 deg. F/ 175 deg. F (0.00 deg. C / 79.44 deg. C) 10.1540
C26-03AMB 3/8" 60 Automatic Drain 200 (13.61 bar) 32 deg. F/ 175 deg. F (0.00 deg. C / 79.44 deg. C) 9.3690
C26-04AMB 1/2" 128 Automatic Drain 200 (13.61 bar) 32 deg. F/ 175 deg. F (0.00 deg. C / 79.44 deg. C) 9.7200
C26-02MMB 1/4" 35 Manual Drain 200 (13.61 bar) 32 deg. F/ 175 deg. F (0.00 deg. C / 79.44 deg. C) 9.8390
C26-03MMB 3/8" 60 Manual Drain 200 (13.61 bar) 32 deg. F/ 175 deg. F (0.00 deg. C / 79.44 deg. C) 8.9470
C26-04MMB 1/2" 128 Manual Drain 200 (13.61 bar) 32 deg. F/ 175 deg. F (0.00 deg. C / 79.44 deg. C) 9.7500
