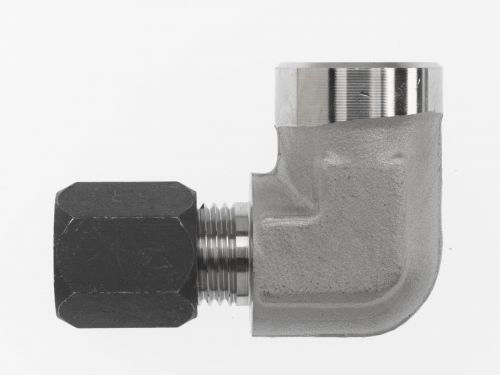

C2502-08-06-FG by Brennan Inc. | -08 Bite Type x -06 Female Pipe | 90° Elbow | Forged Steel
Brennan Inc.
Flareless Bite Type: C2502 Bite Type x Female Pipe 90° Elbow
| Buy More, Save More! | |
| Quantity | Price Each |
| 10–39 | $17.45 |
| 40–79 | $15.78 |
| 80+ | $13.92 |
Discounts applied in cart/checkout.
Product Data:
Shape:
90 Degree
Ends Configuration:
Material(s):
 |
|||||||||
|---|---|---|---|---|---|---|---|---|---|
| Part Number | Material | Tube O.D. | B1Thread | A2NPTF | B1Drill | M Length | NLength | KDepth | YFlats |
| C2502-04-02-FG | Forged Steel | 1/4" | 7/16-20" | 1/8-27" | 0.203" | 0.890" | 0.660" | 0.234" | 0.562" |
| C2502-04-04-FG | Forged Steel | 1/4" | 7/16-20" | 1/4-18" | 0.203" | 1.030" | 0.880" | 0.234" | 0.750" |
| C2502-05-02-FG | Forged Steel | 5/16" | 1/2-20" | 1/8-27" | 0.234" | 0.950" | 0.660" | 0.250" | 0.562" |
| C2502-06-04-FG | Forged Steel | 3/8" | 9/16-18" | 1/4-18" | 0.281" | 1.050" | 0.880" | 0.250" | 0.750" |
| C2502-06-06-FG | Forged Steel | 3/8" | 9/16-18" | 3/8-18" | 0.281" | 1.120" | 1.020" | 0.250" | 0.875" |
| C2502-08-04-FG | Forged Steel | 1/2" | 3/4-16" | 1/4-18" | 0.422" | 1.230" | 1.020" | 0.305" | 0.750" |
| C2502-08-06-FG | Forged Steel | 1/2" | 3/4-16" | 3/8-18" | 0.422" | 1.230" | 1.020" | 0.305" | 0.875" |
| C2502-08-08-FG | Forged Steel | 1/2" | 3/4-16" | 1/2-14" | 0.422" | 1.350" | 1.230" | 0.305" | 1.062" |
| C2502-10-08-FG | Forged Steel | 5/8" | 7/8-14" | 1/2-14" | 0.500" | 1.420" | 1.230" | 0.350" | 1.062" |
| C2502-12-12-FG | Forged Steel | 3/4" | 1-1/16-12" | 3/4-14" | 0.656" | 1.580" | 1.360" | 0.350" | 1.312" |
| C2502-16-16-FG | Forged Steel | 1" | 1-5/16-12" | 1-11-1/2" | 0.875" | 1.730" | 1.620" | 0.415" | 1.625" |
| C2502-20-20-FG | Forged Steel | 1-1/4" | 1-5/8-12" | 1-1/4-11-1/2" | 1.093" | 2.080" | 1.700" | 0.415" | 1.875" |
| C2502-04-02-SS | Stainless Steel | 1/4" | 7/16-20" | 1/8-27" | 0.203" | 0.890" | 0.660" | 0.234" | 0.562" |
| C2502-04-04-SS | Stainless Steel | 1/4" | 7/16-20" | 1/4-18" | 0.203" | 1.030" | 0.880" | 0.234" | 0.750" |
| C2502-06-04-SS | Stainless Steel | 3/8" | 9/16-18" | 1/4-18" | 0.281" | 1.050" | 0.880" | 0.250" | 0.750" |
| C2502-06-06-SS | Stainless Steel | 3/8" | 9/16-18" | 3/8-18" | 0.281" | 1.120" | 1.020" | 0.250" | 0.875" |
| C2502-08-04-SS | Stainless Steel | 1/2" | 3/4-16" | 1/4-18" | 0.422" | 1.230" | 1.020" | 0.305" | 0.750" |
| C2502-08-06-SS | Stainless Steel | 1/2" | 3/4-16" | 3/8-18" | 0.422" | 1.230" | 1.020" | 0.305" | 0.875" |
| C2502-08-08-SS | Stainless Steel | 1/2" | 3/4-16" | 1/2-14" | 0.422" | 1.350" | 1.230" | 0.305" | 1.062" |
| C2502-10-08-SS | Stainless Steel | 5/8" | 7/8-14" | 1/2-14" | 0.500" | 1.420" | 1.230" | 0.350" | 1.062" |
| C2502-12-12-SS | Stainless Steel | 3/4" | 1-1/16-12" | 3/4-14" | 0.656" | 1.580" | 1.360" | 0.350" | 1.312" |
| C2502-16-16-SS | Stainless Steel | 1" | 1-5/16-12" | 1-11-1/2" | 0.875" | 1.730" | 1.620" | 0.415" | 1.625" |
