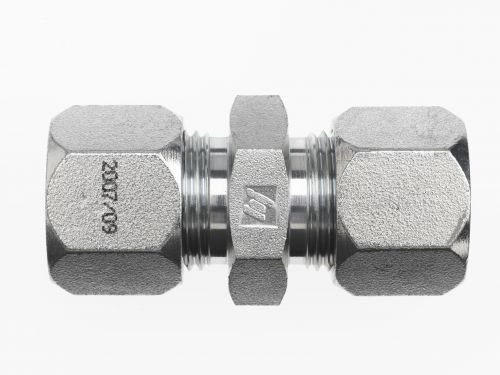

C2403-LH-10-10 by Brennan Inc. | -10 Bite Type x -10 Bite Type Tube Union | Large Hex | Straight | Steel

C2403-LH-10-10 by Brennan Inc. | -10 Bite Type x -10 Bite Type Tube Union | Large Hex | Straight | Steel

Sale price$28.66

Brennan Inc.
Flareless Bite Type: C2403-LH - Bite Type x Bite Type Tube Union Straight (Large Hex)
Buy More, Save More!
Quantity Price Each
10–39 $26.94
40–79 $24.36
80+ $21.50
Discounts applied in cart/checkout.

Product Data:

Shape:

Straight

Ends Configuration:
  • 5/8in Tube Compression
  • 5/8in Tube Compression
  • Some Ends Match
Material(s):
  • Steel
Part Number Material Tube O.D. B1Thread B2Thread B1Drill B2Drill LLength K1Depth K2Depth CHex
C2403-LH-04-04 Steel 1/4" 7/16-20" 7/16-20" 0.203" 0.203" 1.180" 0.234" 0.234" 0.688"
C2403-LH-06-06 Steel 3/8" 9/16-18" 9/16-18" 0.281" 0.281" 1.240" 0.250" 0.250" 0.812"
C2403-LH-08-08 Steel 1/2" 3/4-16" 3/4-16" 0.422" 0.422" 1.420" 0.305" 0.305" 1.000"
C2403-LH-10-10 Steel 5/8" 7/8-14" 7/8-14" 0.500" 0.500" 1.610" 0.350" 0.350" 1.125"
C2403-LH-12-12 Steel 3/4" 1-1/16-12" 1-1/16-12" 0.656" 0.656" 1.810" 0.350" 0.350" 1.375"
C2403-LH-04-04-SS Stainless Steel 1/4" 7/16-20" 7/16-20" 0.203" 0.203" 1.180" 0.234" 0.234" 0.688"
C2403-LH-06-04-SS Stainless Steel 3/8" 9/16-18" 7/16-20" 0.281" 0.203" 1.220" 0.250" 0.234" 0.812"
C2403-LH-06-06-SS Stainless Steel 3/8" 9/16-18" 9/16-18" 0.281" 0.281" 1.240" 0.250" 0.250" 0.812"
C2403-LH-08-06-SS Stainless Steel 1/2" 3/4-16" 9/16-18" 0.422" 0.281" 1.330" 0.305" 0.250" 1.000"
C2403-LH-08-08-SS Stainless Steel 1/2" 3/4-16" 3/4-16" 0.422" 0.422" 1.422" 0.305" 0.305" 1.000"
C2403-LH-12-12-SS Stainless Steel 3/4" 1-1/16-12" 1-1/16-12" 0.656" 0.656" 1.810" 0.350" 0.350" 1.375"
C2403-LH-16-16-SS Stainless Steel 1" 1-5/16-12" 1-5/16-12" 0.875" 0.875" 1.810" 0.415" 0.415" 1.625"

Brennan

Brennan Industries, founded in 1953, distinguishes itself with a commitment to quality in hydraulic and pneumatic fittings. With over 120,000 styles and sizes, Brennan serves a global market through extensive distribution networks. As a privately held company, Brennan's principals actively oversee operations, ensuring top-tier customer service and responsiveness. Their products meet or exceed J.I.C./S.A.E. and international standards, supported by ISO 9001:2015, AS9100D, and NADCAP certifications. Brennan's offerings include standard and custom solutions, backed by robust engineering support. With 13 distribution centers worldwide, Brennan delivers exceptional quality, service, and competitive pricing for all hydraulic and pneumatic fitting needs.
