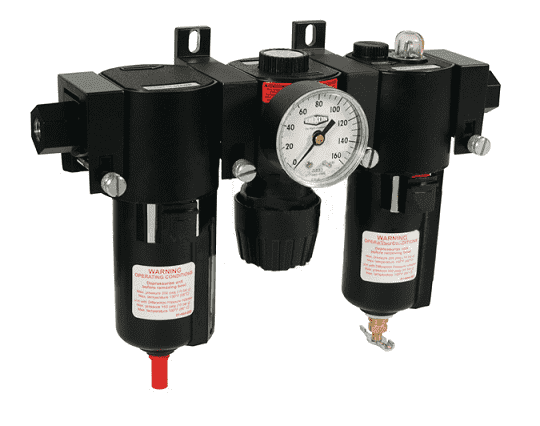

C16-03AMB Dixon Valve Wilkerson 3/8" Compact Combination Unit with Metal Bowl with Sight Glass - Automatic Drain - 58.5 SCFM
Dixon

C16-03AMB Dixon Valve Wilkerson 3/8" Compact Combination Unit with Metal Bowl with Sight Glass - Automatic Drain - 58.5 SCFM

Contact for Price

If you are interested in this item please fill out the Contact Form below.

Contact Us

How can we help you?

Price, availability, and details—available upon request.

Features:
  • Filter series F16:
    • 5 micron element.
    • 5 oz. bowl.
  • Regulator series R16:
    • 0-125 PSI adjusting range.
    • Self-relieving.
    • Supplied with a GC230 gauge.
  • Lubricator series L16:
    • 5 oz. bowl.
    • Adjustable oil feed.
    • Full view sight dome.
  • Included components:
    • (2) Modular sleeves.
    • (2) Mounting brackets (sleeve and bracket).
    • (2) End blocks.
Part Number Size SCFM Drain Type PSI Min/Max Temp Weight (Lbs.)
With Transparent Bowl and Guard
C16-02A 1/4" 36.1 Automatic Drain 150 (10.20 bar) 32 deg. F/ 125 deg. F (0.00 deg. C / 51.67 deg. C) 6.7400
C16-03A 3/8" 58.5 Automatic Drain 150 (10.20 bar) 32 deg. F/ 125 deg. F (0.00 deg. C / 51.67 deg. C) 6.5980
C16-04A 1/2" 64.0 Automatic Drain 150 (10.20 bar) 32 deg. F/ 125 deg. F (0.00 deg. C / 51.67 deg. C) 6.3000
C16-02M 1/4" 36.1 Manual Drain 150 (10.20 bar) 32 deg. F/ 125 deg. F (0.00 deg. C / 51.67 deg. C) 6.6900
C16-03M 3/8" 58.5 Manual Drain 150 (10.20 bar) 32 deg. F/ 125 deg. F (0.00 deg. C / 51.67 deg. C) 6.5480
C16-04M 1/2" 64.0 Manual Drain 150 (10.20 bar) 32 deg. F/ 125 deg. F (0.00 deg. C / 51.67 deg. C) 6.2500
With Metal Bowl with Sight Glass
C16-02AMB 1/4" 36.1 Automatic Drain 200 (13.61 bar) 32 deg. F/ 175 deg. F (0.00 deg. C / 79.44 deg. C) 7.8650
C16-03AMB 3/8" 58.5 Automatic Drain 200 (13.61 bar) 32 deg. F/ 175 deg. F (0.00 deg. C / 79.44 deg. C) 7.5530
C16-04AMB 1/2" 64.0 Automatic Drain 200 (13.61 bar) 32 deg. F/ 175 deg. F (0.00 deg. C / 79.44 deg. C) 7.3135
C16-02MMB 1/4" 36.1 Manual Drain 200 (13.61 bar) 32 deg. F/ 175 deg. F (0.00 deg. C / 79.44 deg. C) 5.7500
C16-03MMB 3/8" 58.5 Manual Drain 200 (13.61 bar) 32 deg. F/ 175 deg. F (0.00 deg. C / 79.44 deg. C) 7.6280
C16-04MMB 1/2" 64.0 Manual Drain 200 (13.61 bar) 32 deg. F/ 175 deg. F (0.00 deg. C / 79.44 deg. C) 7.5400
