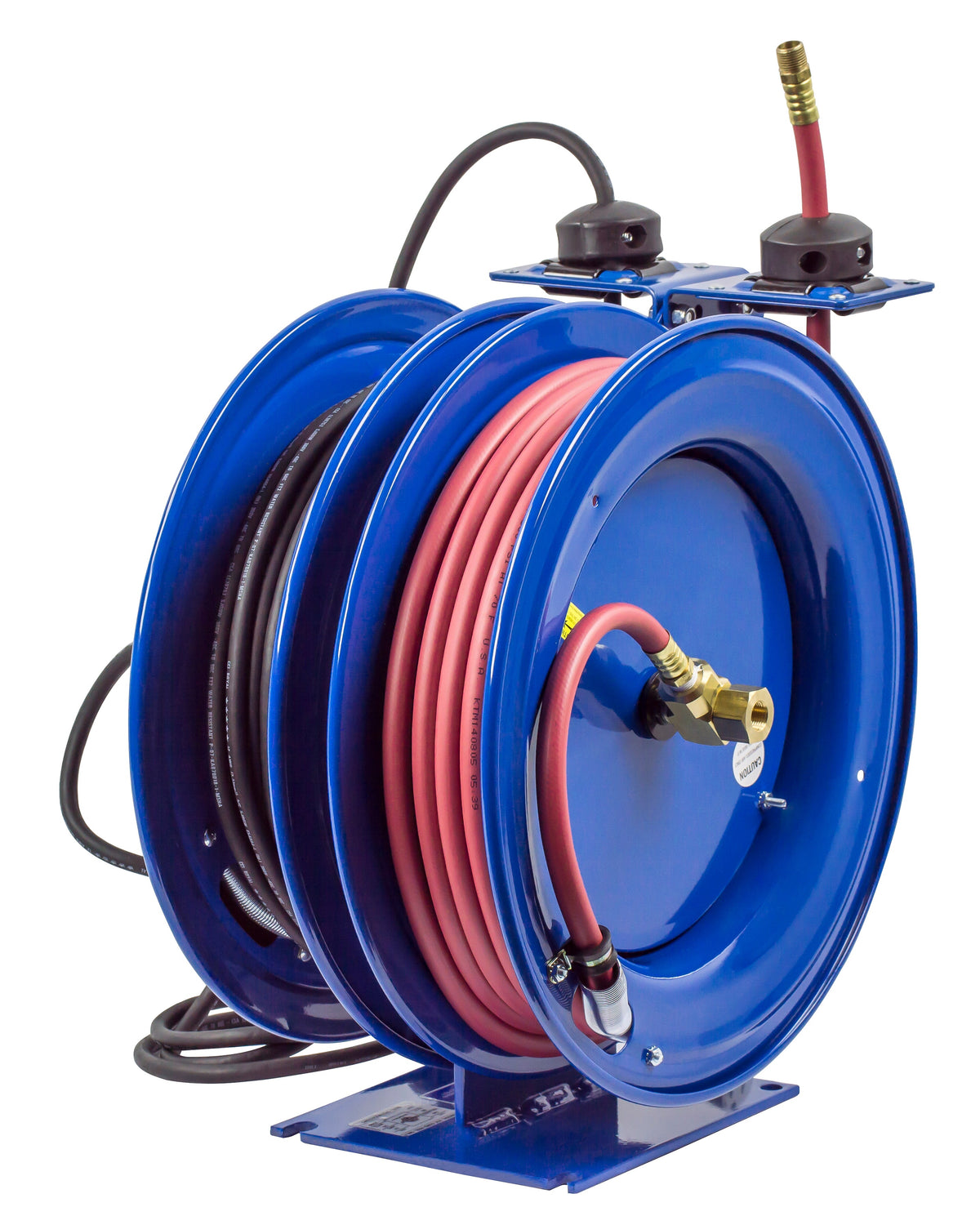

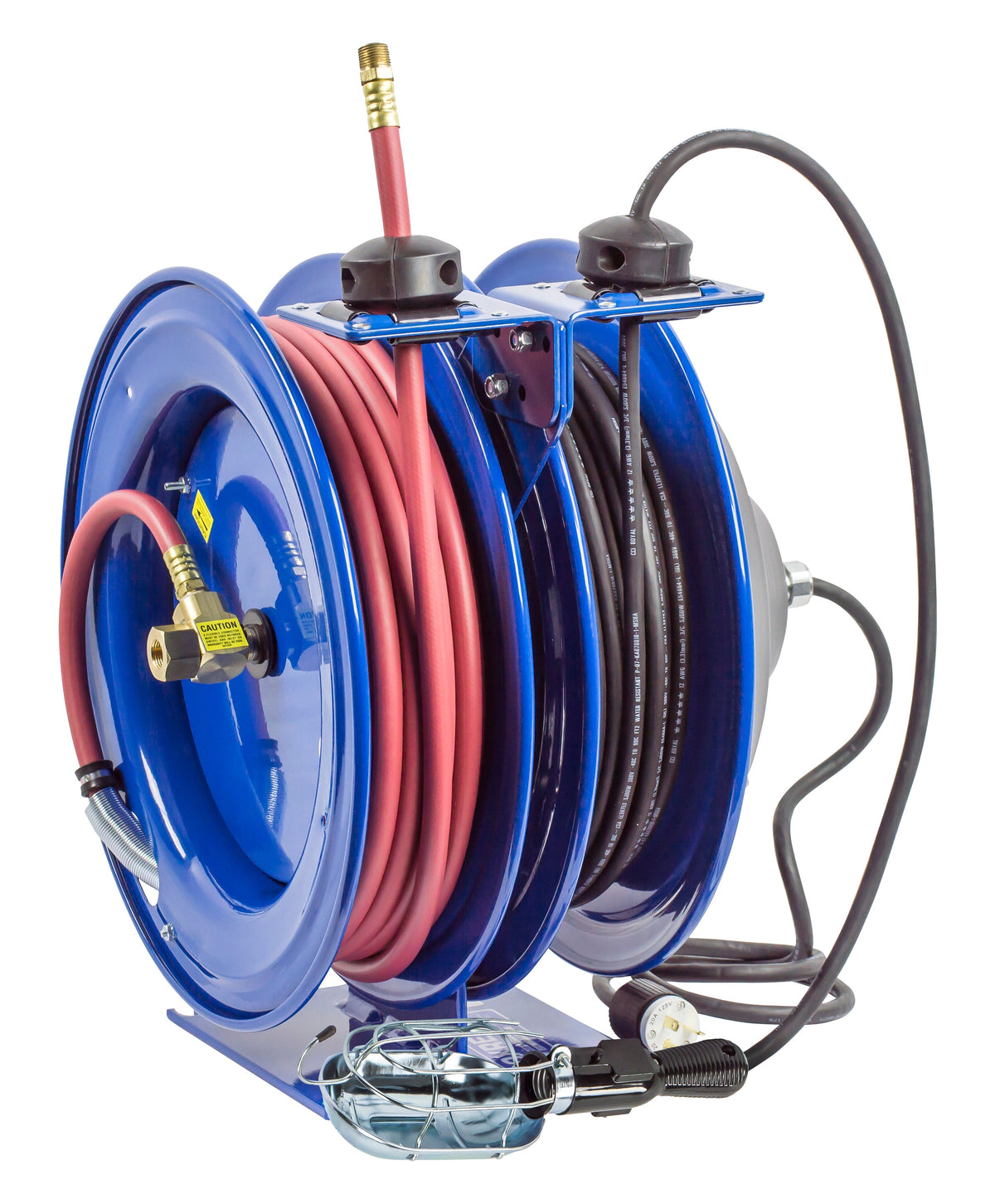

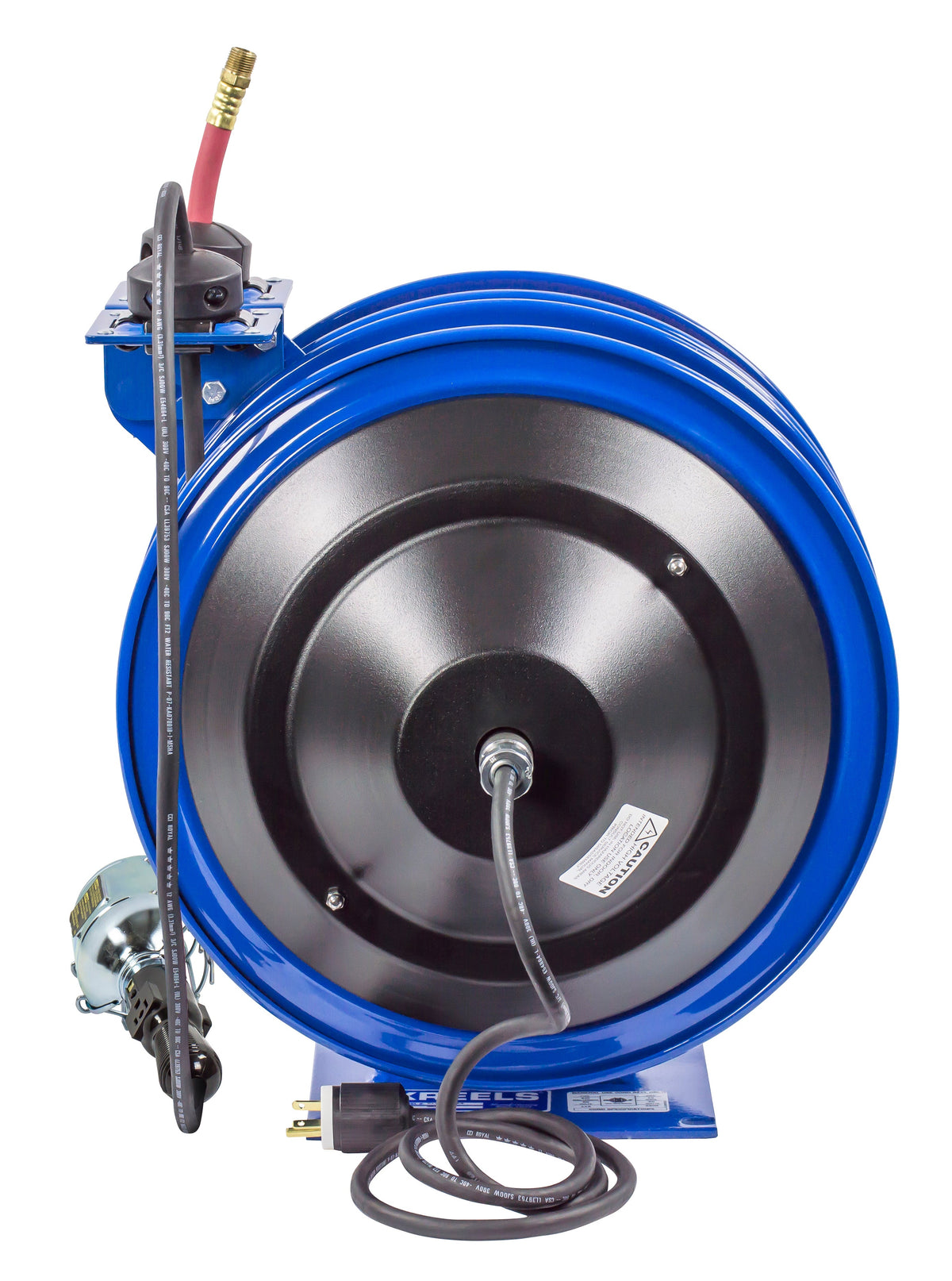

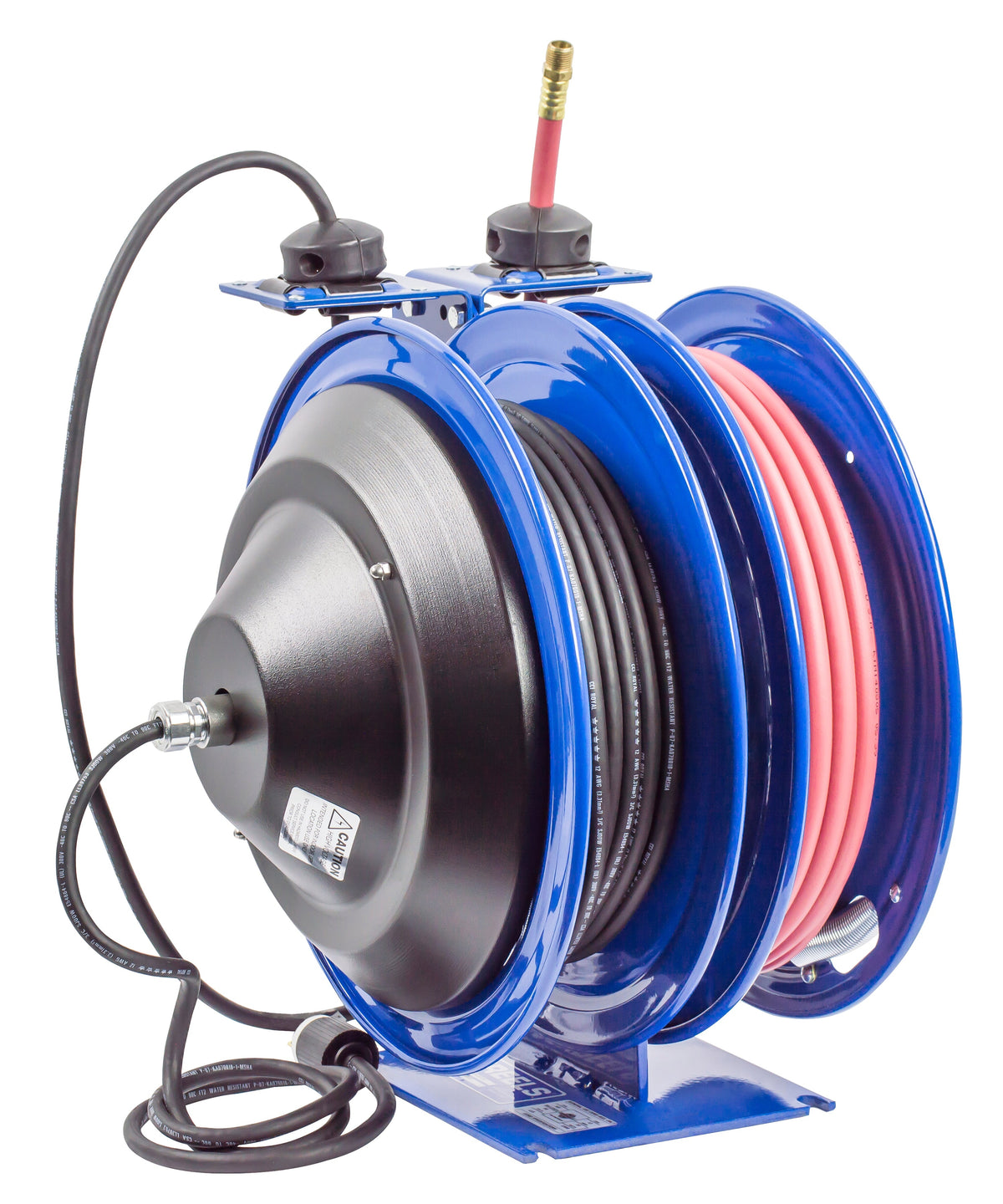

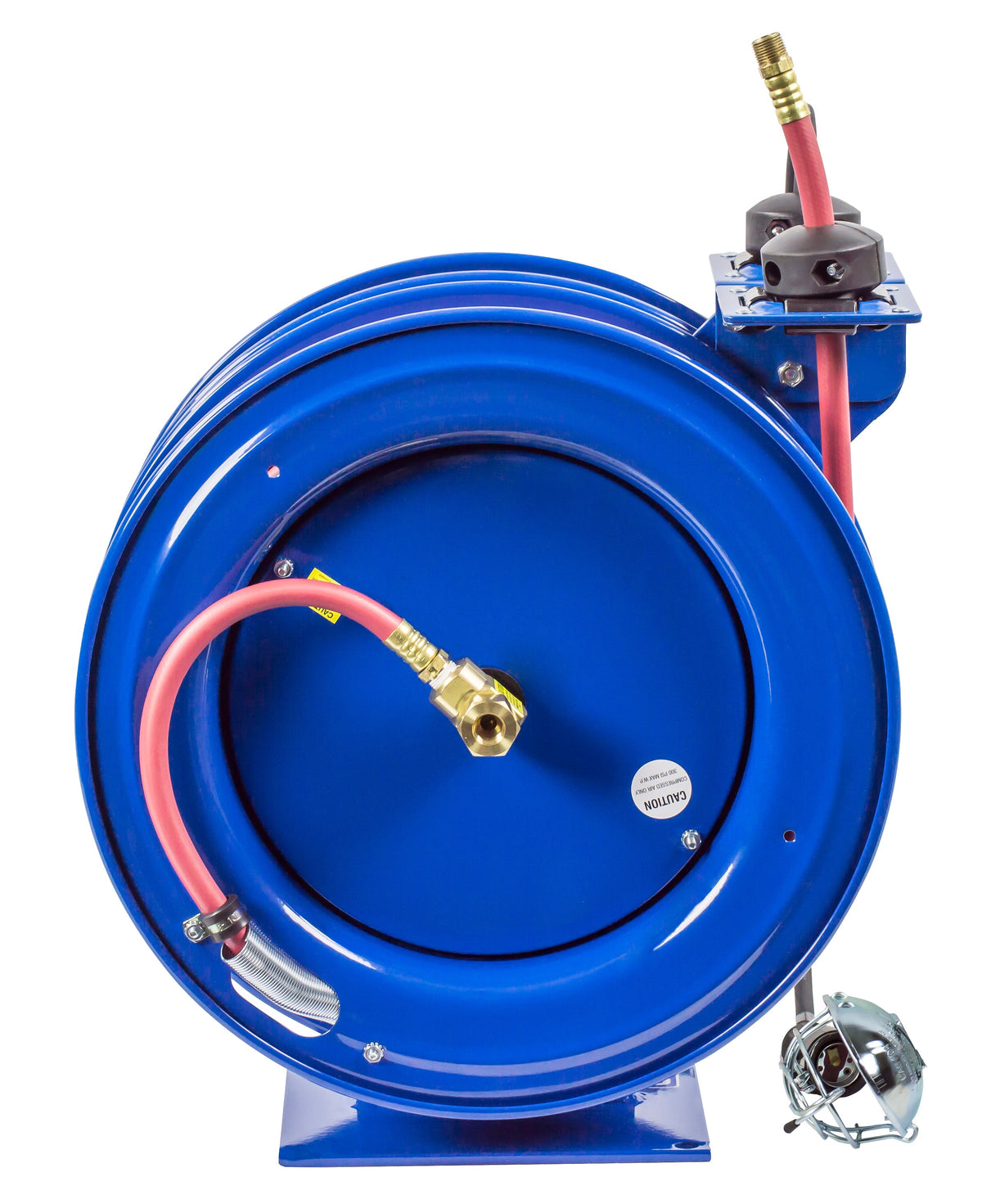

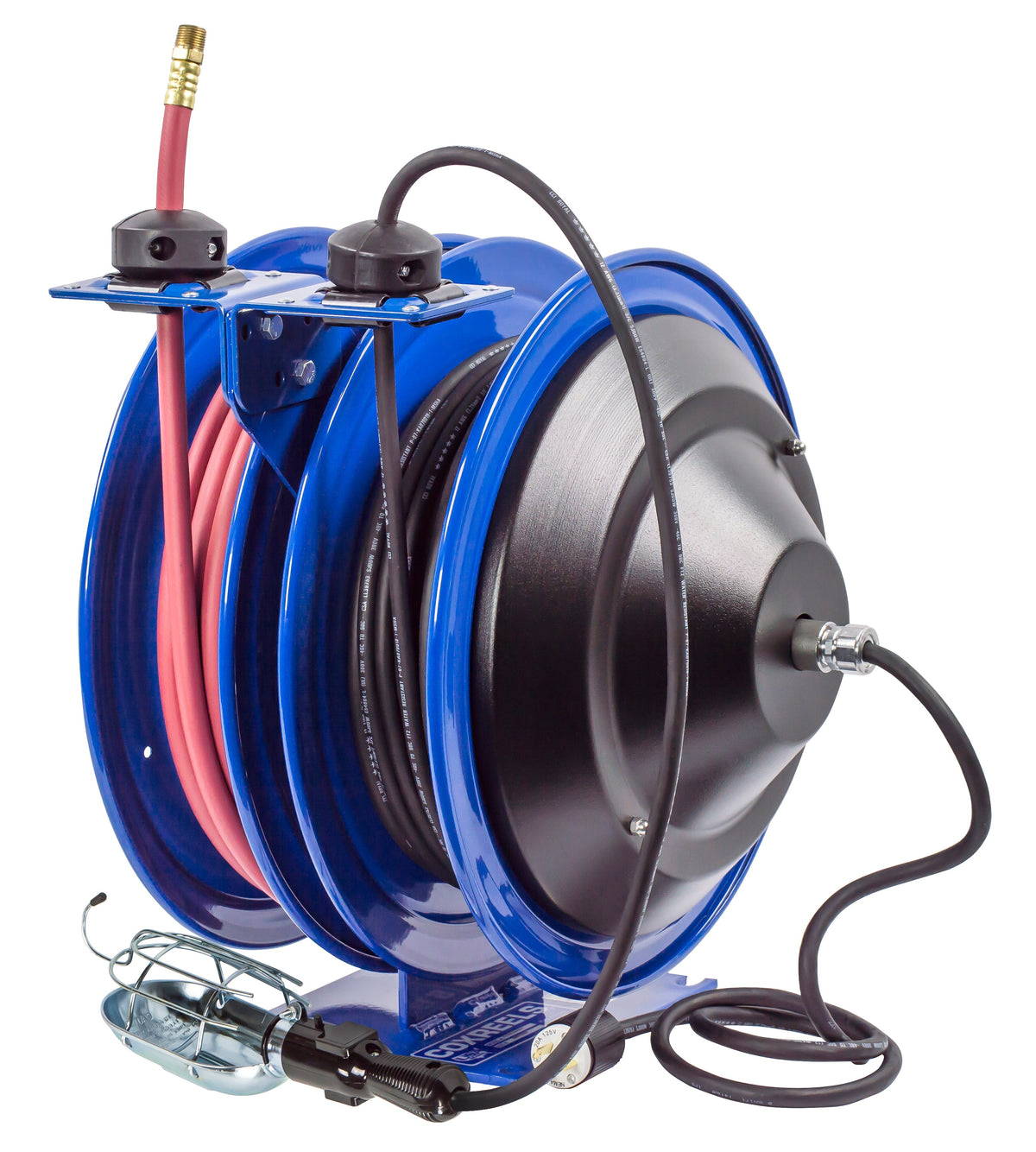

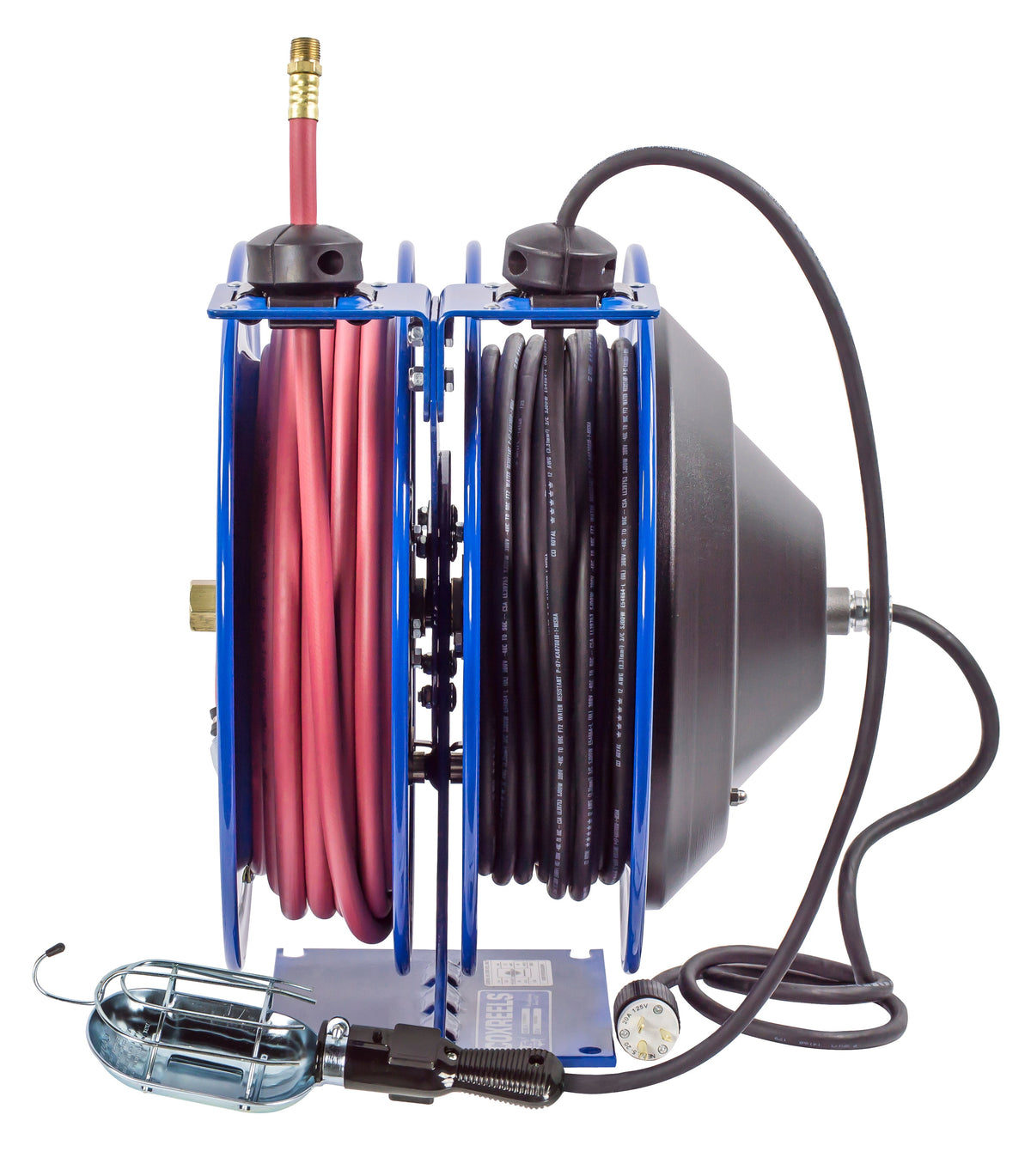

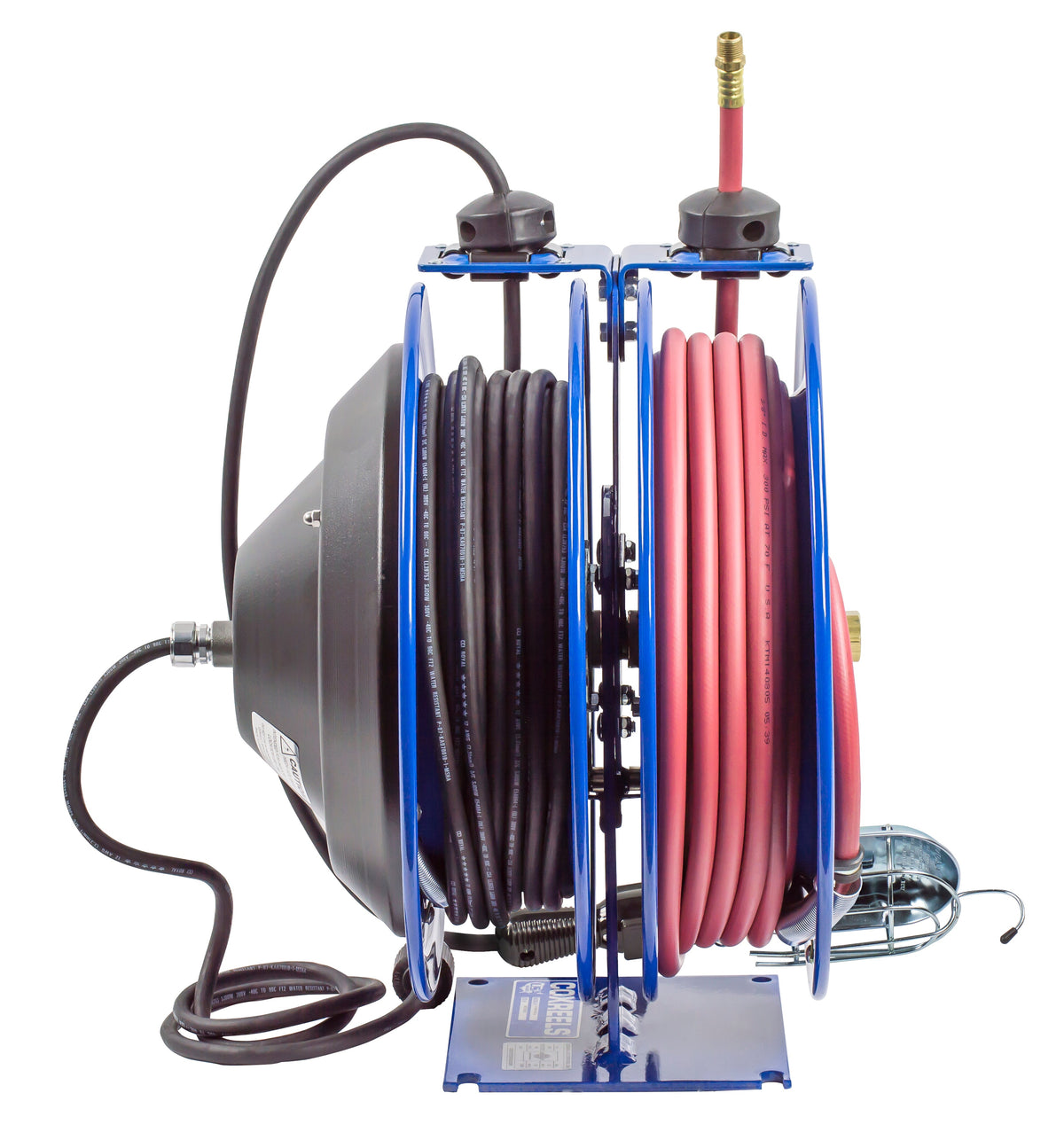

C-L350-5016-E by Coxreels | C Air-Electric | 300 PSI Spring Driven Air Hose & Power Cord Combo Reel w/ Incandescent Cage Light | 3/8" Hose ID, 3/8" FNPT Inlet x 3/8" MNPT Hose End | 16/3 SJTO Cord, 13A | Steel | 50ft PVC Hose & 50ft Cord Included
Buy more, save moreDiscounts applied in cart/checkout.
Spring driven hose reel
Coxreels C Air-Electric Series Spring Driven Hose Reels
Steel 2-in-1 spring driven hose reels for air and electric cord, rated to 300 PSI. Made in the U.S.A.
1
What is this product used for?
- Air
- Electric Cord
2
What are the key specifications?
Construction
Steel, 2-in-1
Swivel
Brass 90° full-flow with Nitrile seals
Inlet
3/8" FNPT
Max Temperature
150°F
Bearings
1" Permanently Lubricated Precision Bearings
Finish
CPC™ powder coat
Mounting
Floor, Wall, Ceiling, Bench and Vehicles
Ø0.5" mounting holes
Reel W × H × L
16 × 18.625 × 17 in
3
What are the main product features?
- Swivel & Lead Cable — Machined from solid brass 90˚ full-flow NPT swivel for simple seal maintenance and easy hose installation. External, easily accessible, heavy gauge CPC™ powder coated steel components cover for fast and simple slip ring routine maintenance.
- Cartridge Motor — Lubricated and enclosed cartridge-style motor is easily removable for safe and convenient maintenance. Precision coil spring factory tuned and matched to application for longest life cycle and performance.
- CNC Spun Discs — Heavy duty CNC robotically spun and ribbed discs with rolled edges for greater strength, durability, hose protection and operator safety.
- 1/4" Steel Base — Sturdy single expanded pedestal design with solid one piece steel base and support post, no weld, for maximum stability. Compact two reel assembly for air/ electric applications, each reel operates independently.
- Multi-Position Guide Arm — Versatile guide arm adjusts to wall, floor, ceiling, and vehicle mounting positions.
4
Which models are available?
| Part # | Hose I.D. | Capacity | Max PSI |
|---|---|---|---|
| Less hose | |||
| C-L350L-5012L-X | 3/8" | 50 ft | 300 |
| C-L350L-5016L-X | 3/8" | 50 ft | 300 |
| PVC | |||
| C-L350-5012-A | 3/8" | 50 ft | 300 |
| C-L350-5012-B | 3/8" | 50 ft | 300 |
| C-L350-5012-F | 3/8" | 50 ft | 300 |
| C-L350-5012-X | 3/8" | 50 ft | 300 |
| C-L350-5016-A | 3/8" | 50 ft | 300 |
| C-L350-5016-E | 3/8" | 50 ft | 300 |
| C-L350-5016-F | 3/8" | 50 ft | 300 |
| C-L350-5016-X | 3/8" | 50 ft | 300 |
5
Which accessories are available?
| Part # | Accessory | Fits |
|---|---|---|
| Mounting brackets — fit every model | ||
| 15724 | EZ-Up "I" or "H" Beam Adapter | |
| 15723 | EZ-Up Bracket | |
| MRT-1 | Overhead Mounting Bracket | |
| 15725 | Swing Bracket | |
| 15721 | Swivel Bracket | |
| Inlet connections — fit every model | ||
| 5153-1.5 | 18" inlet hose | |
| 208 | 90° inlet elbow (brass) | |
| Hose end | ||
| 131 | Hose/cord stop | Cord 12/3, plus C-L350L-5016L-X |
| 131-1 | Hose/cord stop | Cord 16/3 except C-L350L-5016L-X |
| 10759-2 | Quick disconnect | Every model |
| 237-1 | Spiral hose/cord guard | Every model |
6
Which factory options can be ordered?
Options are built to order and quoted individually — use the quote form on this page. Each code is the full 3-character option code; X marks positions left standard (B = standard color). Add it after the model number and any mounting or hose suffix; combine options by merging characters. For example, -GXX plus -BVX is -GVX. Leave it off if it would be BXX. Combinations are confirmed with the quote.
| Code | Option |
|---|---|
| Mounting suffix | |
| -F | Floor mount |
| -W | Wall mount |
| -B | Bottom-Truck mount |
| -D | Down mount |
| Hose suffix | |
| -OG | Oil/Grease Resistant |
| -RH | Red EPDM |
| -BH | Black EPDM |
| Color / finish | |
| -GXX | Gray |
| -KXX | Gloss Black |
| -RXX | Red |
| -CXX | Wrinkle Black (25 reel minimum) |
| -WXX | Gloss White (25 reel minimum) |
| -NXX | Green (25 reel minimum) |
| Swivel and plumbing | |
| -BVX | Standard swivel with Viton |
| -BEX | Standard swivel with EPR |
| -BAX | Stainless steel swivel with Nitrile |
| -BBX | Stainless steel swivel with Viton |
| -BCX | Stainless steel swivel with EPR |
| -BGX | BSP swivel with Nitrile |
| -BHX | BSP swivel with Viton |
| -BIX | BSP swivel with EPR |
| -BLX | Stainless steel BSP swivel with Nitrile |
| -BMX | Stainless steel BSP swivel with Viton |
| -BNX | Stainless steel BSP swivel with EPR |
| -BYX | Food grade Brass swivel |
| -BWX | Food grade stainless steel swivel |
| -BZX | Less swivel |
| Other | |
| -BXB | Bend Restrictor |
| -BXC | Constant Tension |
| -BXL | Air Tool Kit |
7
Where can I find product documents?
C Air-Electric Series Spec Sheet
Dimension drawing, capacities and the part-number key.
Exploded Parts Drawing
Numbered parts breakdown with replacement part numbers.
Made in the U.S.A. by Coxreels. 2-year limited manufacturer’s warranty (parts only).
How is this product sold?
Each.
